The Hager MCB 4P 6/10kA C-63A 4M safeguards three‑phase circuits against overloads and short circuits. Rated 63 A, C‑curve, 400 V AC, with Icn 6/10 kA (IEC 60898-1), Ics 15 kA and Icu up to 20 kA (IEC 60947-2). Compact 4 modules, IP20. Screw terminals/biconnect for 1-35 mm², 50-60 Hz, 6 kV impulse, -25 to 70°C, 360° mounting. Ideal for commercial and industrial panels.

EAN

3250614628504

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 4P 16A Curve D 10kA Icn, 15kA Icu, 400V AC, 4 Modules NFN463

Accessories
Technical properties
Environmental value
Documentations
More products

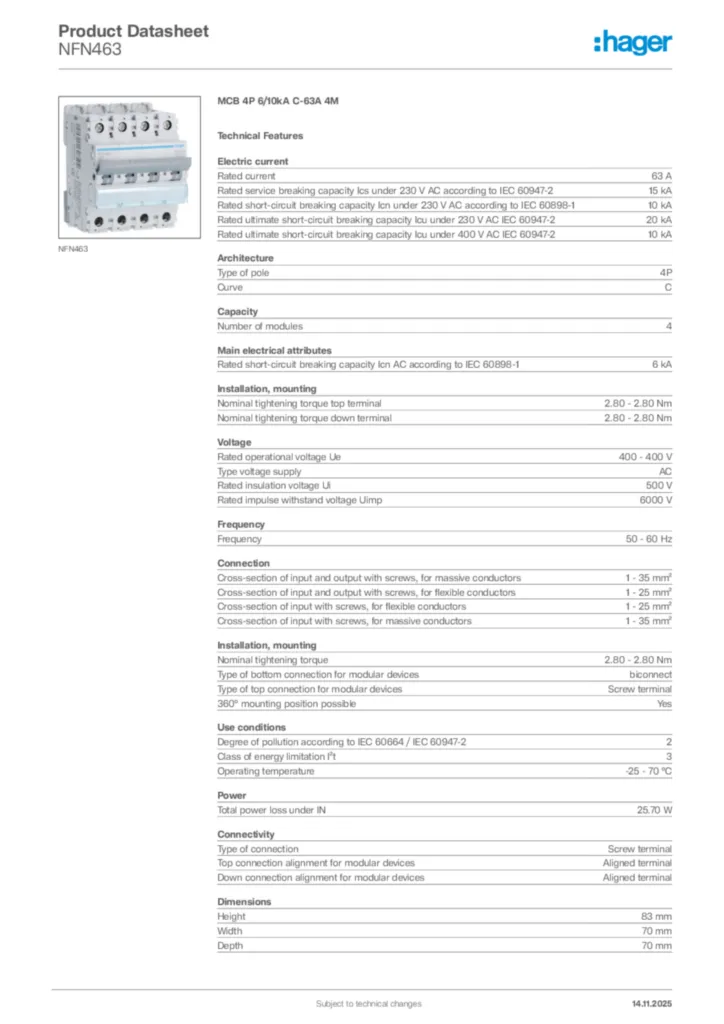

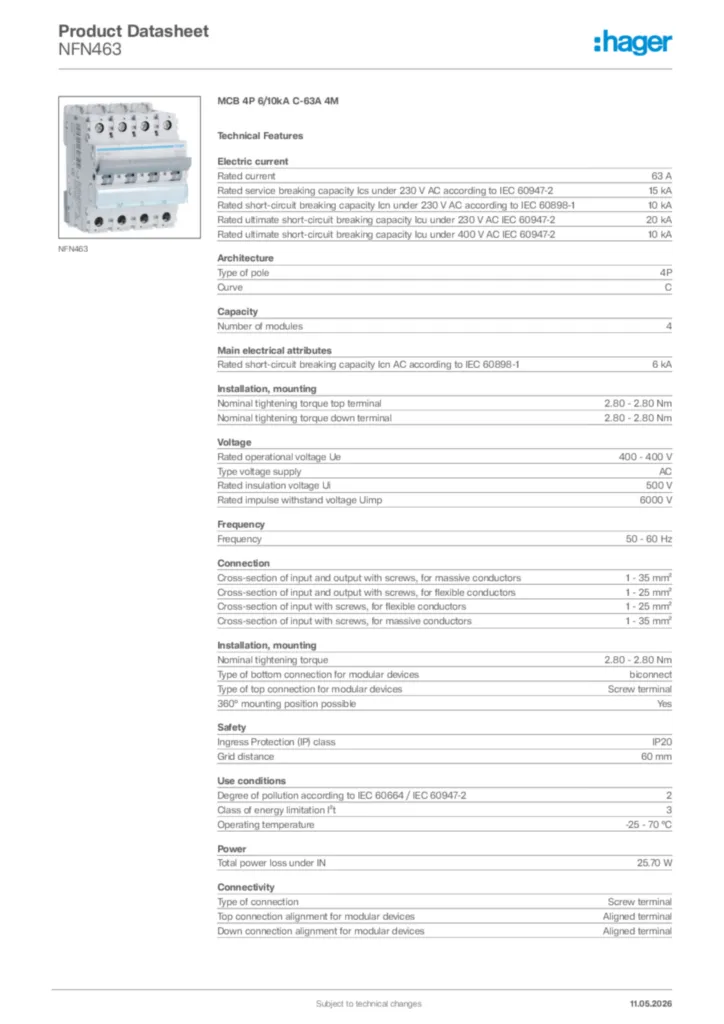

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 2 products available
AOB type AC 4 products available
AOB type AC/A-SEL 1 products available

Technical properties

Rated current

63 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

10 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

10 kA
Rated current -15°C

76.06 A
Rated current -10°C

74.72 A
Rated current -5°C

73.36 A
Rated current at 0°C

71.97 A
Rated current 5°C

70.56 A
Rated current 10°C

69.11 A
Rated current 15°C

67.64 A
Rated current at 20°C

66.13 A
Rated current 25°C

64.58 A
Rated current 30°C

63 A
Rated current 35°C

60.96 A
Rated current at 40°C

58.86 A
Rated current at 45°C

56.68 A
Rated current at 50°C

54.40 A
Rated current 55°C

52.03 A
Rated current 60°C

49.55 A
Rated current 65°C

46.94 A
Rated current 70°C

44.17 A
Rated service breaking capacity Ics AC according to IEC 60947-2

75 %
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Type of pole

4P
Curve

C

Number of modules

4

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

25.70 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

70 mm
Depth

70 mm
