The Hager Earth leakage add-on block 2P 25A 30mA AC Class adds residual current protection to a compatible MCB. With 2 modules and left neutral, it protects people and circuits from AC faults in residential and light commercial setups. Rated 25 A with 30 mA sensitivity, Ui 500 V and 4 kV impulse withstand for reliability. Nominal tightening torque: 1.7 Nm (top) and 2.2 Nm (bottom).

EAN

3250611342267

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Earth leakage add-on block 2P 25A 300mA AC Class, 230-400V, 2 Modules BD226

Technical properties
Environmental value
Documentations
More products

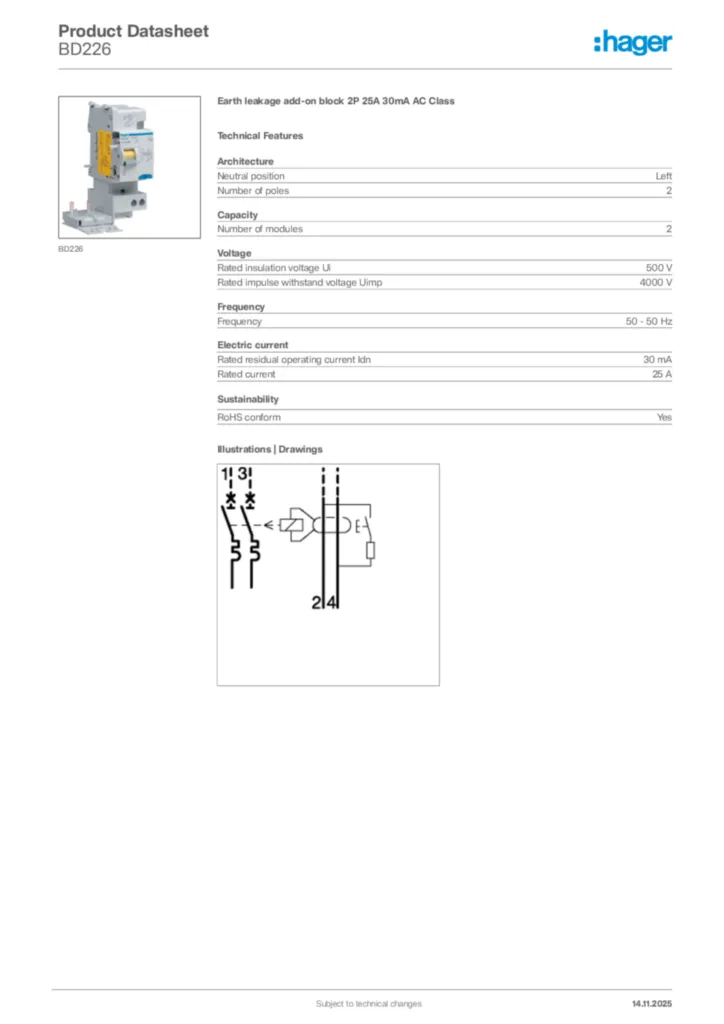

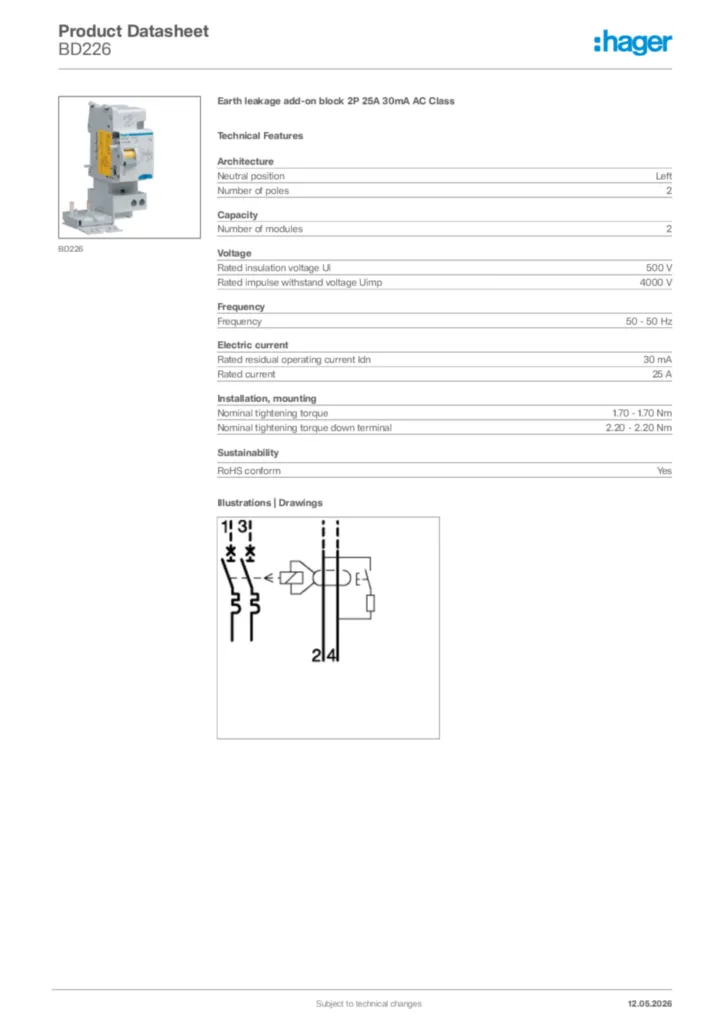

Download the data sheet

Technical properties

Neutral position

Left
Number of poles

2

Number of modules

2

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

30 mA
Rated current

25 A

Nominal tightening torque

1.70 - 1.70 Nm
Nominal tightening torque down terminal

2.20 - 2.20 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
