IP66 Single 13A Un-switched Socket WXPS81
EAN-Nr.
3250617260060
Packaging
1 piece
Price
£50.30
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Rated current13 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Materials
-
ColourLight grey
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Dimensions
-
Height116.50 mm
-
Width103 mm
-
Depth88.25 mm
Installation, mounting
-
Mounting onSurface mounting
-
Mounting-/Connection PositionHorizontal
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletBritish Standard
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidHinged cover falls back, manual clip-in
Capacity
-
Number of modules0
Safety
-
Ingress Protection (IP) classIP66
Functions
-
With orientation lightingNo
-
With function lightingNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

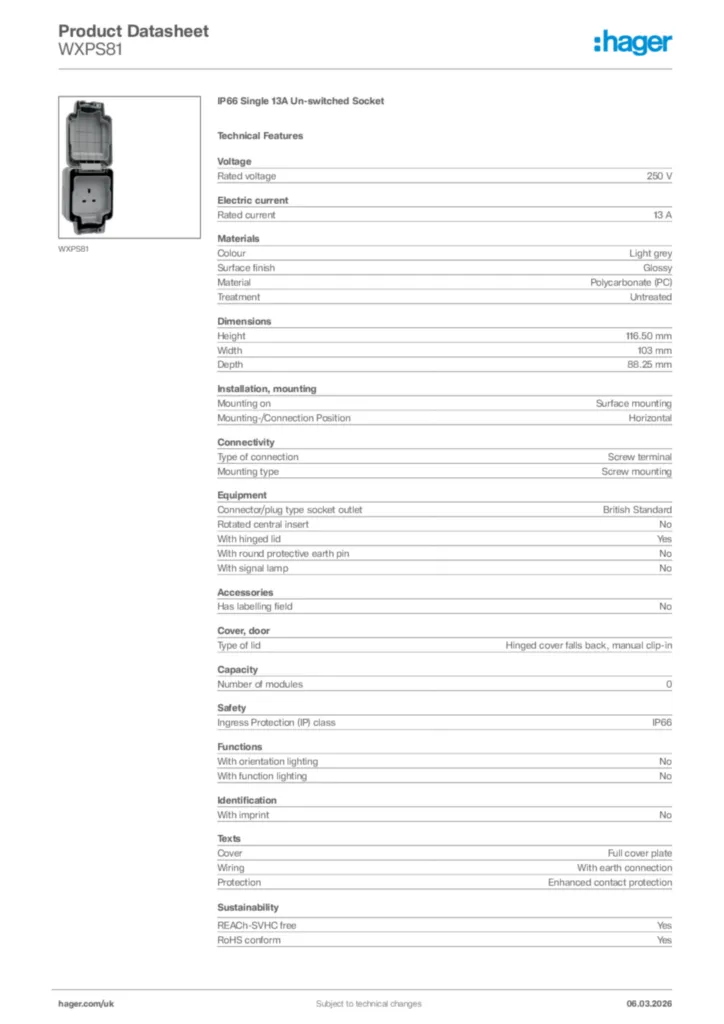

Product datasheet
Hager Product data sheet WXPS81
IP66 Single 13A Un-switched Socket
PDF -
Installation manual
UK_HAGER_INS_IPRATINGS.pdf
IP Rating Guidance
PDF356,09 kB -
Product attachment
Product attachment en-GB 2025-01-13
PDF246,27 kB -
Technical brochures
Sollysta IP66 Brochure
<b>For the toughest environments</b><br>Manufactured from a tough, durable thermoplastic, the Sollysta IP66 range is ideal for indoor and outdoor applications where wiring accessories may be vulnerable to the potentially harmful effects of dust or water ingress.
PDF841,31 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-10-04
PDF152,10 kB
Declaration
Declaration of conformity International 2021-11-10
PDF161,19 kB
Declaration
Declaration of conformity International 2023-09-22
PDF258,92 kB
Declaration
Declaration of conformity International 2023-09-22
PDF266,31 kB
