Design 50 Consumer Unit, 10 Way, 100A Switch Disconnector Incomer VSR110
EAN-Nr.
3250610459744
Packaging
1 piece
Price
£243.27
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 2 products available -
Internal mounting accessories 2 products available -
Key for enclosures/cabinets 1 products available -
Insert for lock system 1 products available
Complete your system
-
VM03CB
30mm*40mm Cable Entry Closed (Pack 10)
£13.19 / piece* -
VM03CE30mm*40mm Cable Entry Open (Pack 10)
£13.19 / piece*
-
VM04CB
Meter Tail Entry Closed (Pack 10)
£13.19 / piece* -
VM04CEMeter tail Entry Open (Pack 10)
£13.19 / piece*
-
VSRHBL

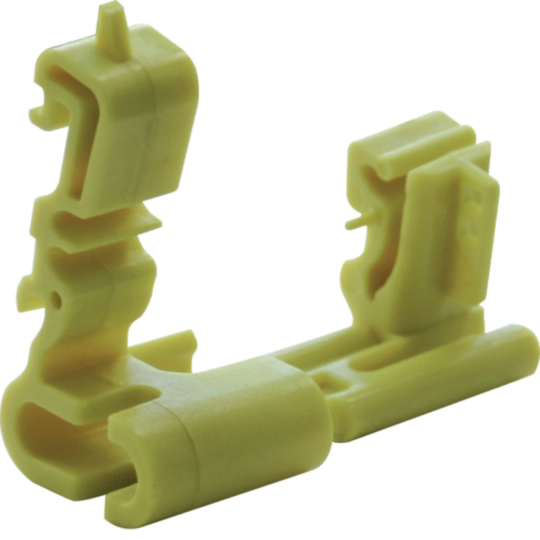

Design 50 Lock pack of 6
£37.78 / piece*
-
VSRLOCK
Design 50 Key Lock
£22.84 / piece*
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles2
Functions
-
Overvoltage protectionNo
Capacity
-
Number of modules10
Electric current
-
Rated current100 A
Dimensions
-
Depth105 mm
-
Height284 mm
-
Width359 mm
-
Thickness of sidewall1 mm
Cover, door
-
InterlockableNo
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Connection
-
Number of accessible phases1
Equipment
-
Number of rows1
-
Number of rails1
-
Extension possibleNo
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
-
Protection classIsolation class I
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Instruction manual
Instruction manual en-GB 2022-12-06
PDF12,53 MB -
Installation manual
ZD0831
Installation manual en-GB 2016-10-12
PDF1,99 MB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -
Technical brochures
Design 50 Brochure
<b>Power through Design</b><br>The latest innovation to our Design range, Design 50 offers the complete solution to house builder and homeowner. It has been created with aesthetics at its heart, whilst still conforming to the latest regulations (BS 7671:2008 Amendment 3).
PDF3,46 MB -
BIM Revit objects
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,05 MB
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,04 MB
Range SM Design 50-SwitchDisconnector Incomer -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,04 MB
Range SM Design 50-SwitchDisconnector Incomer -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,04 MB -
Safety data sheet
AFDD Consumer Unit Guidance Notes
Safety data sheet en-GB 2022-11-22
PDF3,45 MB -
Product data sheet
UK_Design50_SwitchDisconnector.pdf

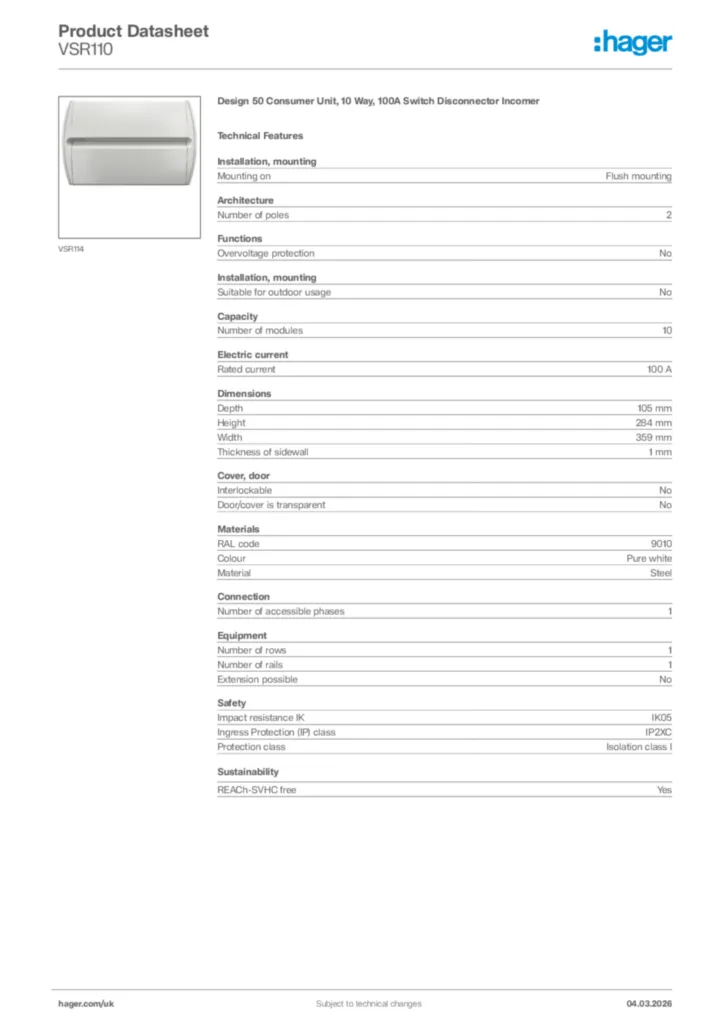

Product data sheet en-GB 2018-03-05
