Consumer unit,Design30,2way,40A,30mA,RCCB incomer,KO VM402HK

EAN-Nr.
3250610840672
Packaging
1 piece
Price
£181.95
/ piece *
£181.95
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Consumer unit,Design30,2way,40A,30mA,RCCB incomer,KO

VM402HK

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Gland plate for enclosure 4 products available
  • Side/­back panel 1 products available
  • Internal mounting accessories 2 products available
  • Lock system 1 products available
  • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 2 products available

Complete your system

  • Gland plate for enclosure
  • Side/­back panel
  • Internal mounting accessories
  • Lock system
  • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
  • VM01CE

    Cable entry plate, Design30, metal, consumer unit
    £12.54  / piece*
  • VM02CE

    Cable entry plate, Design Range, insulated, 5 pieces
    £18.92  / piece*
  • VM03CB

    30mm*40mm Cable Entry Closed (Pack 10)
    £13.19  / piece*
  • VM03CE

    30mm*40mm Cable Entry Open (Pack 10)
    £13.19  / piece*
  • VM01SP

    Rear stand off plate, Design30, consumer unit
    £46.80  / piece*
  • VM04CB

    Meter Tail Entry Closed (Pack 10)
    £13.19  / piece*
  • VM04CE

    Meter tail Entry Open (Pack 10)
    £13.19  / piece*
  • VMHBL

    HSE Padlock Bracket, Design Range
    £27.87  / piece*
  • VM05GS

    Grommet strip, Design30, 5 meters
    £8.30  / piece*
  • VMGROM

    Grommet, Design Range, 10 open hole, 38mm for VM-VML-VMLF
    £13.16  / piece*

Technical characteristics

Install­a­tion, mounting
  • Mounting on
    Surface mounting
Func­tions
  • Has protec­tion main switch
    Yes
Capa­city
  • Number of modules
    2
Elec­tric current
  • Rated current
    40 A
Dimen­sions
  • Depth
    102 mm
  • Height
    240 mm
  • Width
    149 mm
  • Number of width units
    2
Cover, door
  • Inter­lock­able
    Yes
  • Door/­cover is trans­parent
    No
Mater­ials
  • RAL code
    7035
  • Colour
    Light grey
  • Material
    Steel
Connec­tion
  • Number of access­ible phases
    1
Scope of delivery
  • Number of RCCB in enclosure
    1
Equip­ment
  • Number of rows
    1
  • Number of rails
    1
Safety
  • Ingress Protec­tion (IP) class
    IP2XC

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration VM402HK
PDF
Hager RoHS report VM402HK
PDF

Downloads

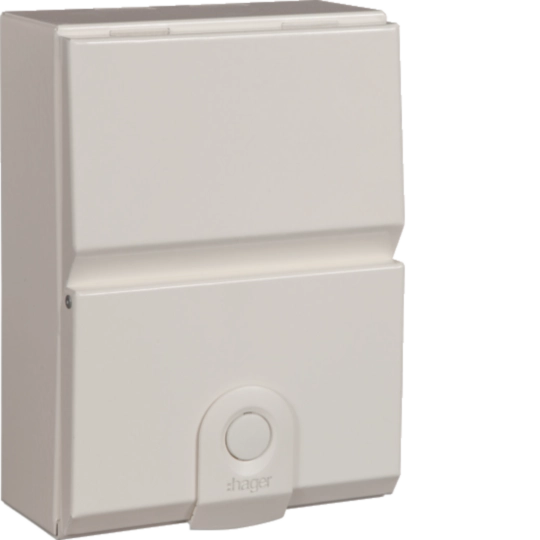

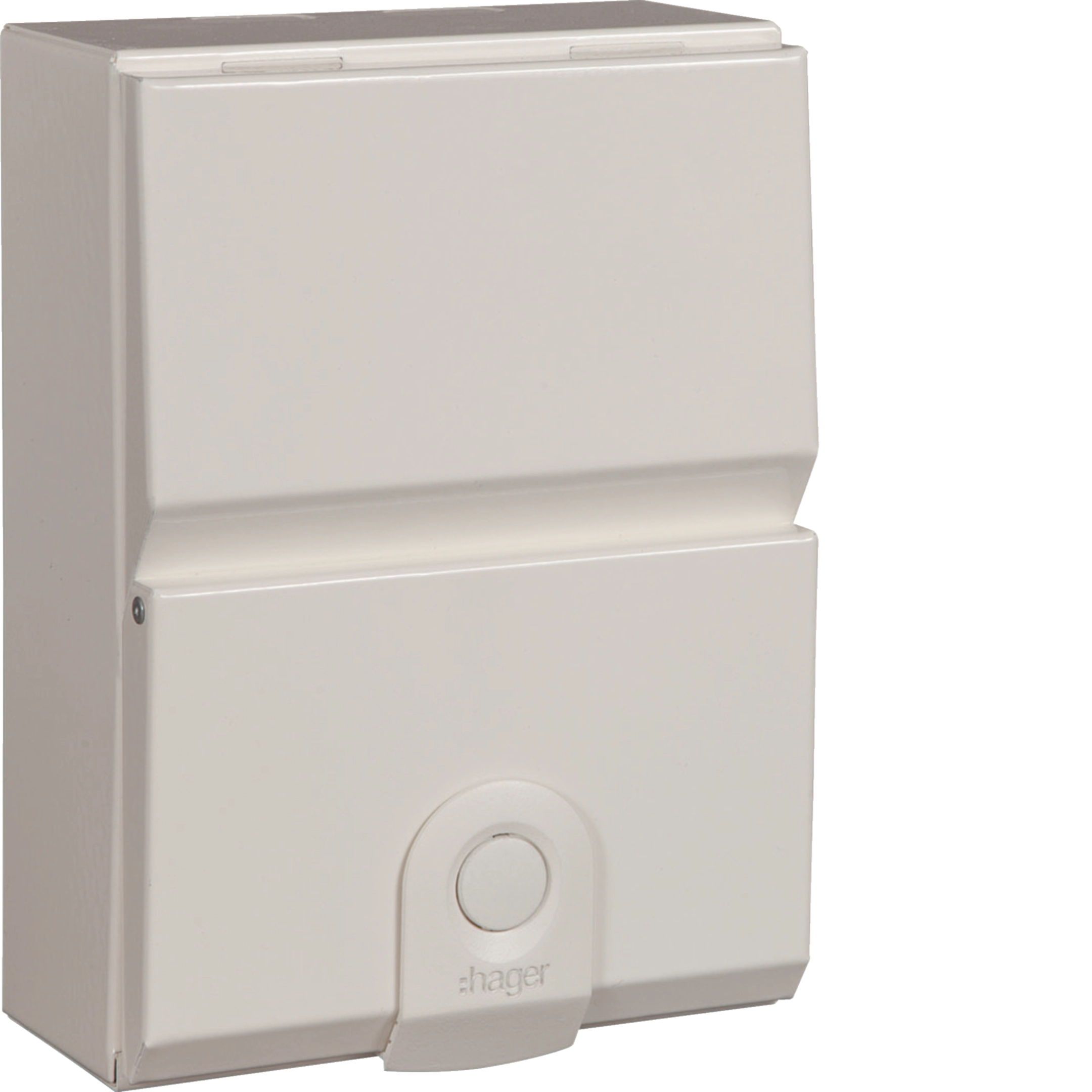

  • Product image

    Image VM402HK | Hager

    Product Image VM402HK

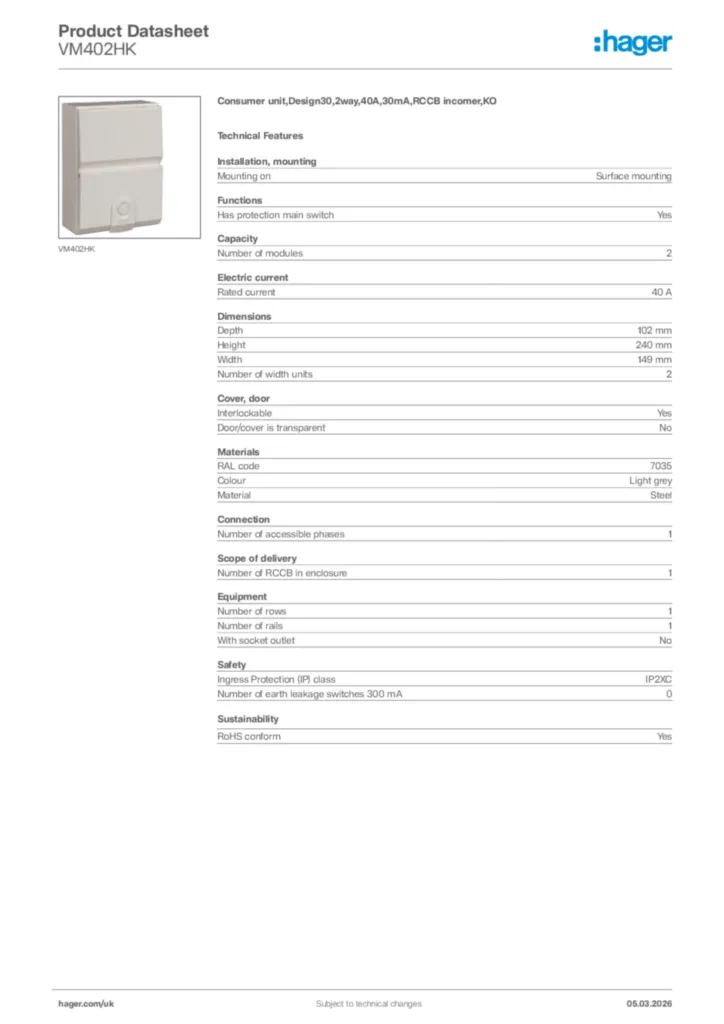

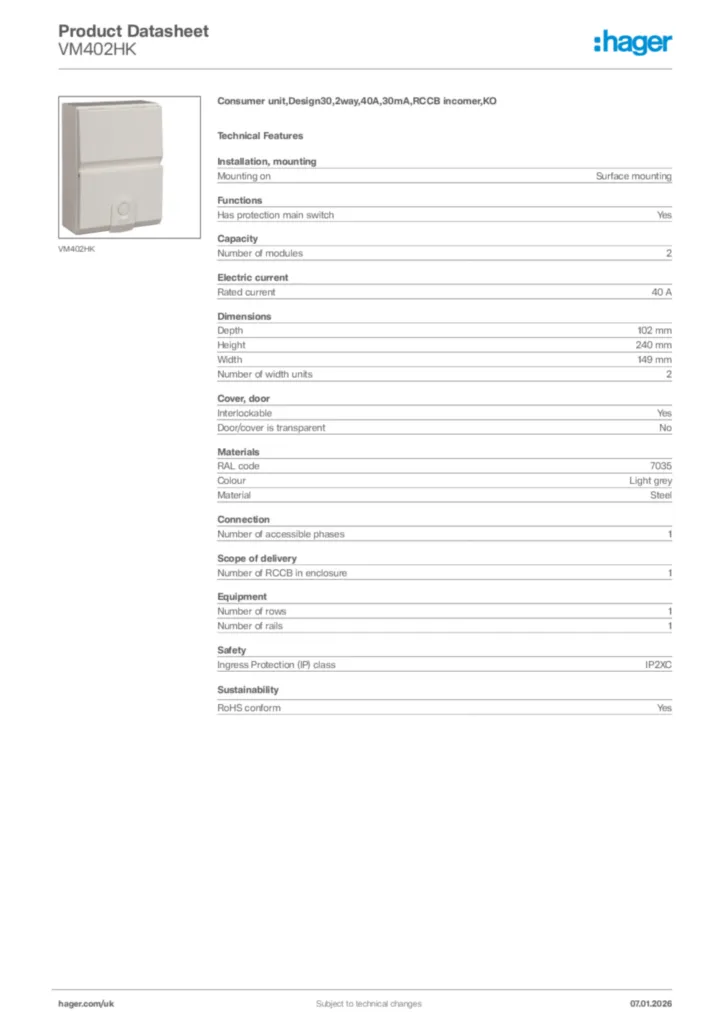

  • Product datasheet

    Image Hager Product data sheet VM402HK | Hager

    Hager Product data sheet VM402HK

    Consumer unit,Design30,2way,40A,30mA,RCCB incomer,KO

    PDF

  • Installation manual

    Image UK_HAGER_INS_IPRATINGS.pdf | Hager

    UK_HAGER_INS_IPRATINGS.pdf

    IP Rating Guidance

    PDF
    356,09 kB
    Image UK_HAGER_INS_ZD0813 | Hager

    UK_HAGER_INS_ZD0813

    Design 30 instruction manual for the original base.

    PDF
    1,75 MB
    Image ZD0821.PDF | Hager

    ZD0821.PDF

    Instruction manual for Design 30 new base.

    PDF
    1,75 MB

  • Product attachment

    Image Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units | Hager

    Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units

    PDF
    3,38 MB

  • Safety data sheet

    Image AFDD Consumer Unit Guidance Notes | Hager

    AFDD Consumer Unit Guidance Notes

    Safety data sheet en-GB 2022-11-22

    PDF
    3,45 MB

  • Product data sheet

    Image UK_D30_TDS_RCCBINCOMER.PDF | Hager

    UK_D30_TDS_RCCBINCOMER.PDF

    Product data sheet en-GB 2017-09-29

    PDF
    258,64 kB
    Image UK_HAGER_TDS_TORQUESETTING.pdf | Hager

    UK_HAGER_TDS_TORQUESETTING.pdf

    Technical data sheets for torque settings

    PDF
    105,95 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-07-12

    PDF
    125,33 kB
