Enclosure,Design30,18 module,with DIN rail, metal VM018
EAN-Nr.
3250610841266
Packaging
1 piece
Price
£184.42
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Depth of installed product102 mm
-
Height of installed product240 mm
-
Width of installed product472 mm
Cover, door
-
Type of door closingnon keylock
-
Door lockingwithout
Materials
-
Colourpure white
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Type of surface treatmentpowder-coated
Equipment
-
Number of rows1
Safety
-
Protection classProtection class III
Downloads
-
Product image
-
Instruction manual
Instruction manuals for VM018
UK_HAGER_INS_IPRATINGS.pdf
PDF356 KB
Instruction manuals for VM018
ZD0821.PDF
PDF1 MB -
Product attachment
Product Attachment for VM018
PDF3 MB -
BIM Revit objects
BIM models for VM018
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MB
BIM models for VM018
Range SM Design 30-SwitchDisconnector Incomer -Revit Family 2020 hosted-V2021
RFA1 MB
BIM models for VM018
Range SM Design 30-SwitchDisconnector Incomer -Revit Family 2020 no hosted-V2021
RFA1 MB
BIM models for VM018
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MB -
Safety data sheet
Safety data sheet for VM018
AFDD Consumer Unit Guidance Notes
PDF3 MB
Safety data sheet for VM018
AFDD Consumer Unit Guidance Notes
PDF4 MB -

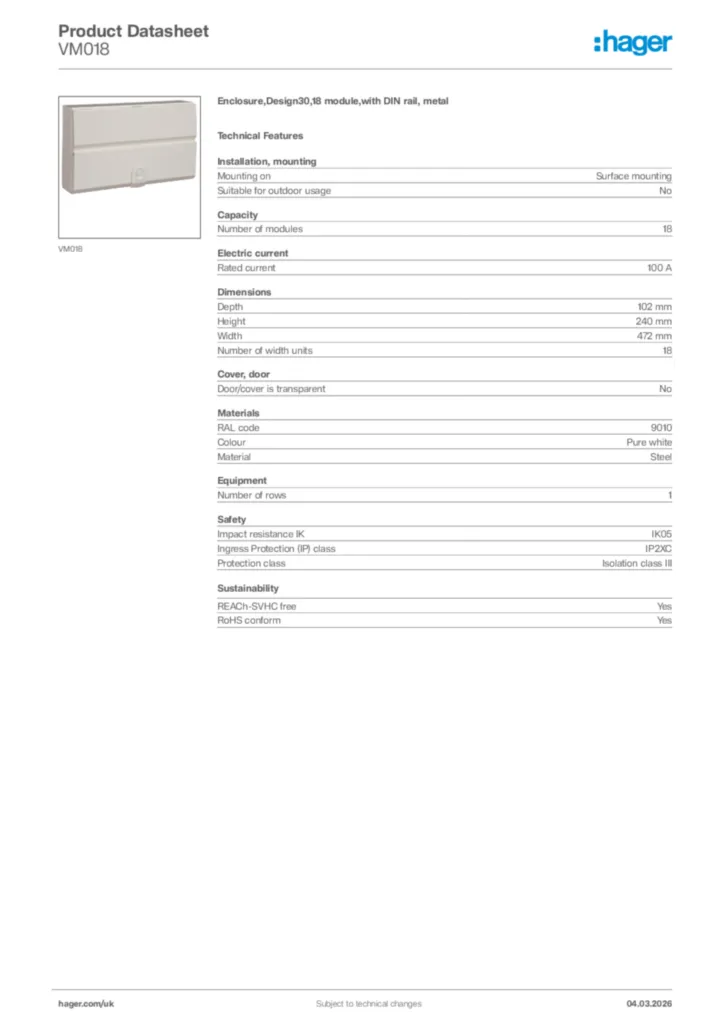

Product data sheet
Product data sheets for VM018
UK_HAGER_TDS_TORQUESETTING.pdf
PDF105 KB
Product data sheets for VM018
UK_HAGER_TDS_DINENCLOSURES.pdf
PDF266 KB -
RoHS report
Pollutant guidelines for VM018
RoHS-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for VM018
REACH-declaration 2023-10-20 (english)
PDF33 KB
More documentation
