Fuse carrier 2P 1000V DC L38 2M L502PV
EAN-Nr.
3250614124822
Packaging
6 Pieces
Price
£109.78
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cylindrical fuse 11 products available
Complete your system
-
LF301PV
PV Fuse-link 10x38 mm 1000V DC 1A
£18.68 / piece* -
LF312PVPV Fuse-link 10x38 mm 1000V DC 12A
£19.56 / piece* -
LF320PVPV Fuse-link 10x38 mm 1000V DC 20A
£18.33 / piece* -
LF316PVPV Fuse-link 10x38 mm 1000V DC 16A
£19.56 / piece* -
LF310PVPV Fuse-link 10x38 mm 1000V DC 10A
£17.42 / piece* -
LF306PVPV Fuse-link 10x38 mm 1000V DC 6A
£17.42 / piece* -
LF305PVPV Fuse-link 10x38 mm 1000V DC 5A
£19.56 / piece* -
LF315PVPV Fuse-link 10x38 mm 1000V DC 15A
£19.56 / piece* -
LF325PVPV Fuse-link 10x38 mm 600V DC 25A
£19.56 / piece* -
LF332PVPV Fuse-link 10x38 mm 600V DC 32A
£19.56 / piece* -
LF308PVPV Fuse-link 10x38 mm 1000V DC 8A
£17.42 / piece*
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole2P
Capacity
-
Number of modules2
Electric current
-
Rated current32 A
-
Rated conditional short-circuit current Icc with gl-gG fuses30 kA
-
Rated short-time withstand current Icw IEC 6094730 kA
-
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-230 kA
Voltage
-
Rated operational voltage Ue690 - 1,000 V
-
Type voltage supplyDC
-
Rated insulation voltage Ui690 V
-
Nominal voltage0 - 1,000 V
-
Rated operational voltage in DC0 - 1,000 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height77 mm
-
Width35 mm
-
Depth75 mm
Power
-
Total power loss under IN2.20 W
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 50 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Connection
-
Cross-section flexible conductor0.75 - 10 mm²
-
Cross-section rigid conductor1 - 16 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

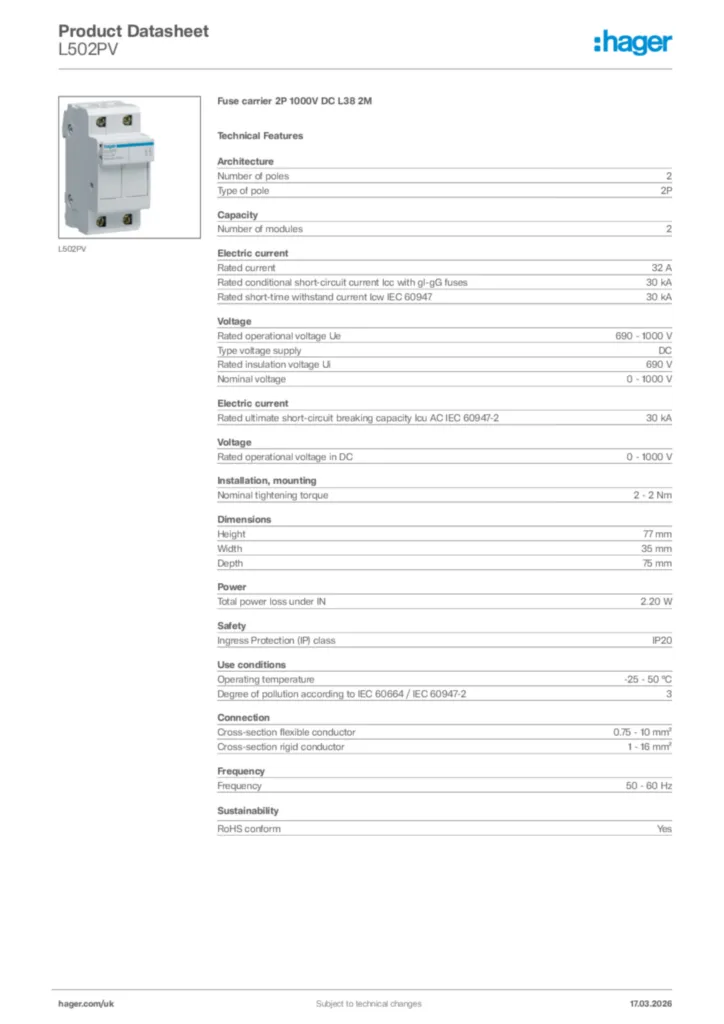

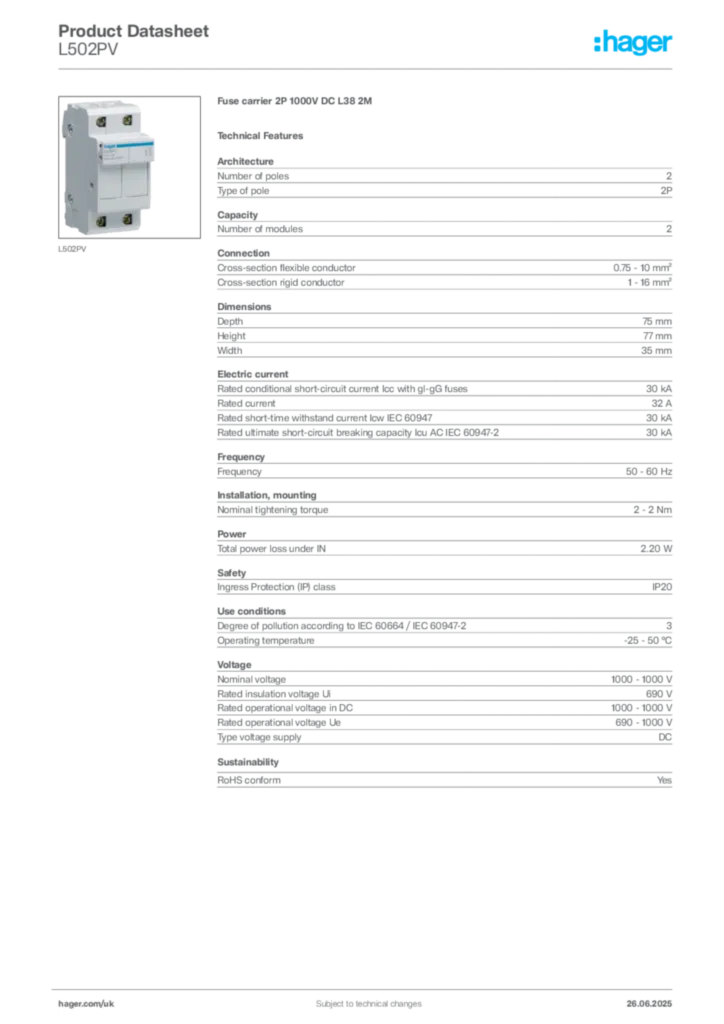

Hager Product data sheet L502PV
Fuse carrier 2P 1000V DC L38 2M
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-23
PDF378,78 kB
Declaration
Declaration of conformity International 2021-04-16
PDF215,85 kB
