PV Fuse-link 10x38 mm 1000V DC 1A LF301PV
Price
£19.24
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Fuse
-
Fuse characteristicsgPV
-
Fuse size10.3 x 38
Electric current
-
Rated current IN1 A
Power
-
Power dissipation at IN0.76 W
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-130 kA
Voltage
-
Type voltage supplyDC
-
Nominal voltage1,000 - 1,000 V
Architecture
-
CurveC
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

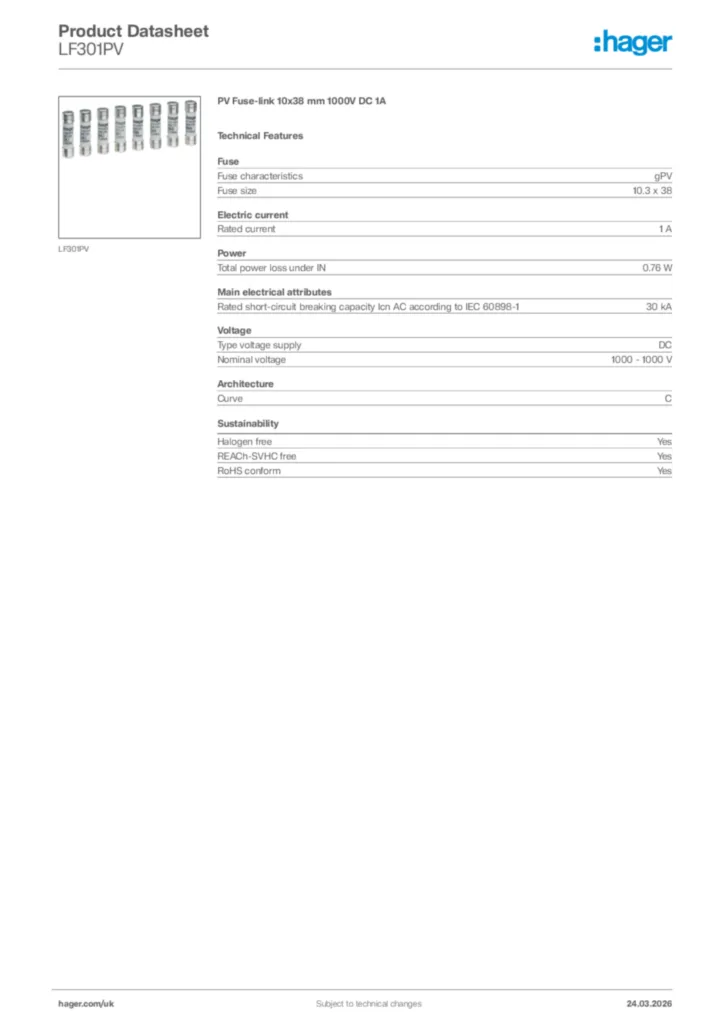

Hager Product data sheet LF301PV
PV Fuse-link 10x38 mm 1000V DC 1A
PDF -
ProductECDeclaration
Declaration of conformity en-US 2026-07-14
PDF264,03 kB
Deklaracja zgodności UE
Wkładki topikowe cylindryczne do instalacji fotowoltaicznych gPV
PDF273,47 kB
More documentation
