Fuse carrier 1P 1000V DC L38 1M L501PV
EAN-Nr.
3250614124815
Packaging
12 Pieces
Price
£59.04
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cylindrical fuse 11 products available
Complete your system
-
LF301PV
PV Fuse-link 10x38 mm 1000V DC 1A
£18.68 / piece* -
LF305PVPV Fuse-link 10x38 mm 1000V DC 5A
£19.56 / piece* -
LF306PVPV Fuse-link 10x38 mm 1000V DC 6A
£17.42 / piece* -
LF308PVPV Fuse-link 10x38 mm 1000V DC 8A
£17.42 / piece* -
LF310PVPV Fuse-link 10x38 mm 1000V DC 10A
£17.42 / piece* -
LF312PVPV Fuse-link 10x38 mm 1000V DC 12A
£19.56 / piece* -
LF315PVPV Fuse-link 10x38 mm 1000V DC 15A
£19.56 / piece* -
LF316PVPV Fuse-link 10x38 mm 1000V DC 16A
£19.56 / piece* -
LF320PVPV Fuse-link 10x38 mm 1000V DC 20A
£18.33 / piece* -
LF325PVPV Fuse-link 10x38 mm 600V DC 25A
£19.56 / piece* -
LF332PVPV Fuse-link 10x38 mm 600V DC 32A
£19.56 / piece*

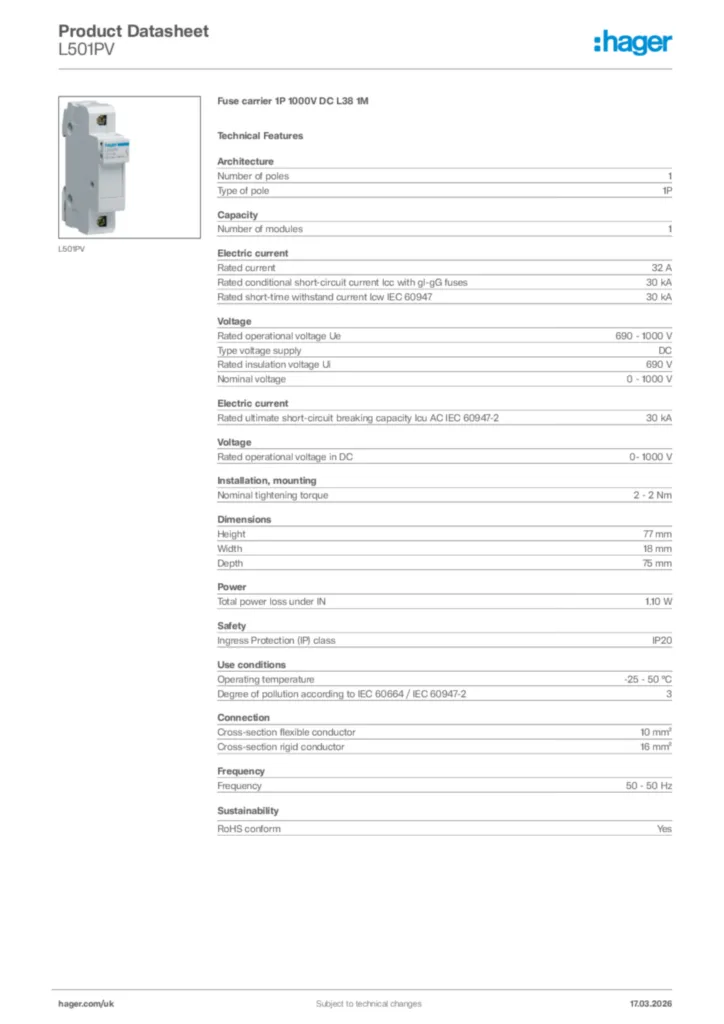

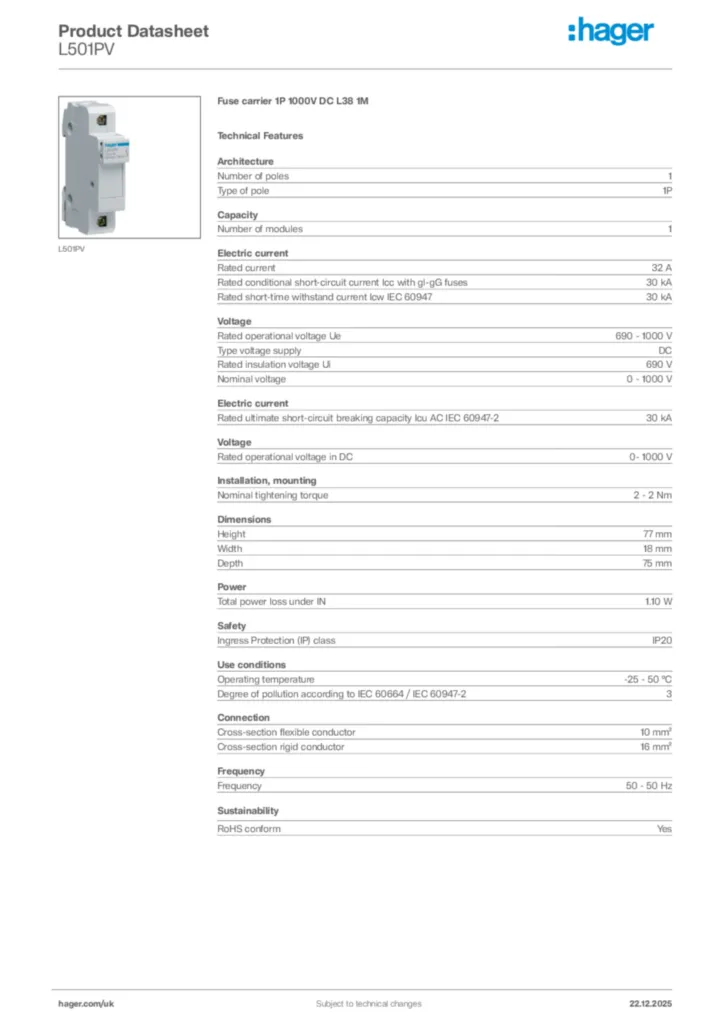

Technical characteristics
Architecture
-
Number of poles1
-
Type of pole1P
Capacity
-
Number of modules1
Electric current
-
Rated current32 A
-
Rated conditional short-circuit current Icc with gl-gG fuses30 kA
-
Rated short-time withstand current Icw IEC 6094730 kA
-
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-230 kA
Voltage
-
Rated operational voltage Ue690 - 1,000 V
-
Type voltage supplyDC
-
Rated insulation voltage Ui690 V
-
Nominal voltage1,000 - 1,000 V
-
Rated operational voltage in DC1,000 - 1,000 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height77 mm
-
Width18 mm
-
Depth75 mm
Power
-
Total power loss under IN1.10 W
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 50 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Connection
-
Cross-section flexible conductor10 mm²
-
Cross-section rigid conductor16 mm²
Frequency
-
Frequency50 - 50 Hz
