    • JZA702
    EAN
    3250613415556
    VPE
    1 piece
    • Accessories Load break switches

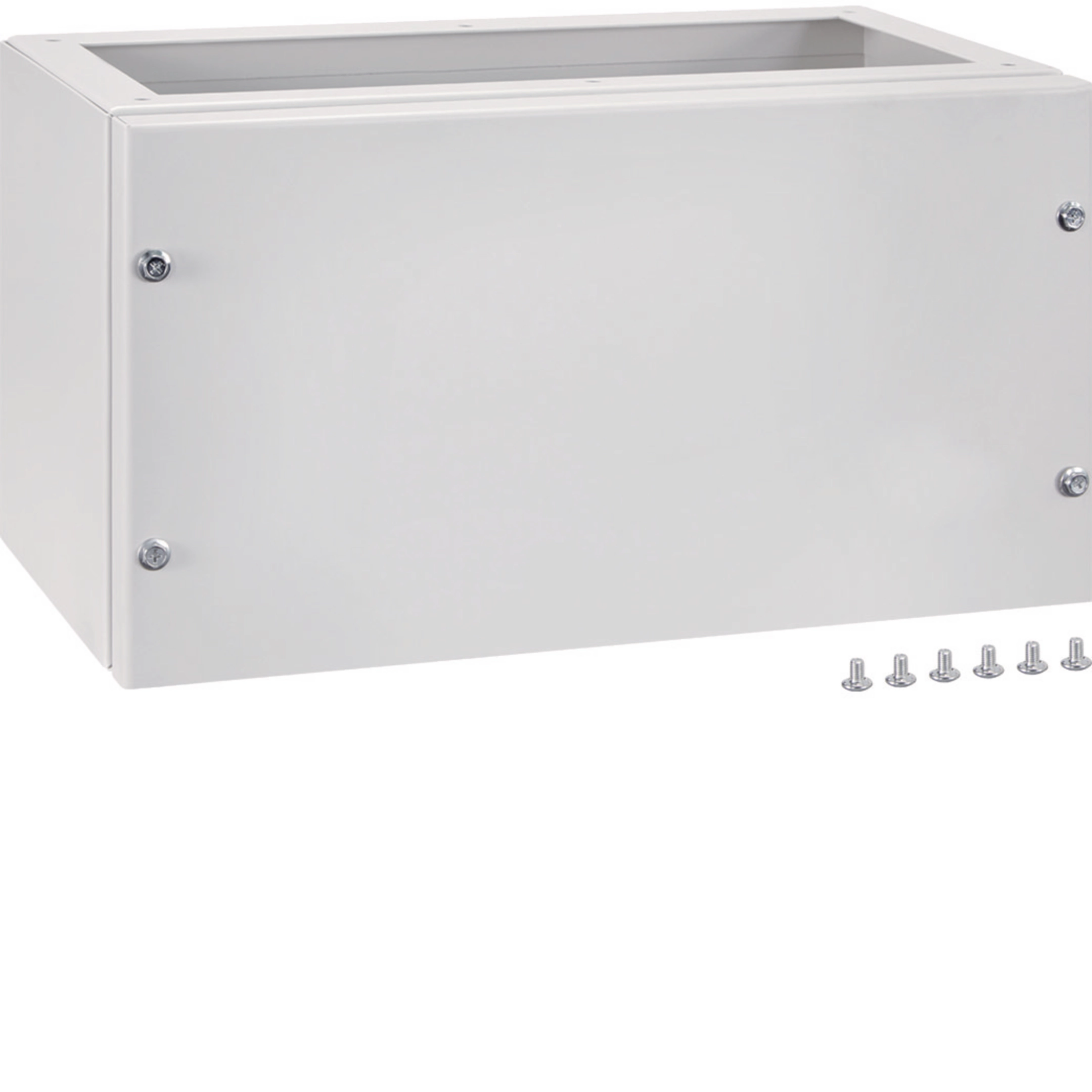

    Ext. box. 630-800A LBS and 315-400A FCS JZA702

    Price
    £300.70
    / piece *
    £300.70
    / piece *
    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Ext. box. 630-800A LBS and 315-400A FCS

    JZA702

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Dimen­sions
    • Height
      250 mm
    • Width
      500 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.5 mm
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Varnished
    • Material
      Steel
    Cover, door
    • Number of locks
      0
    • Door/­cover is trans­parent
      No

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - JK1 32 Module DIN Rail Box Glazed (English)
    PDF
    5,81 MB
    REACH declaration JZA702
    PDF
    RoHS report JZA702
    PDF

    Downloads

    • Product image

      Image JZA702 | Hager UK

      Product Image JZA702

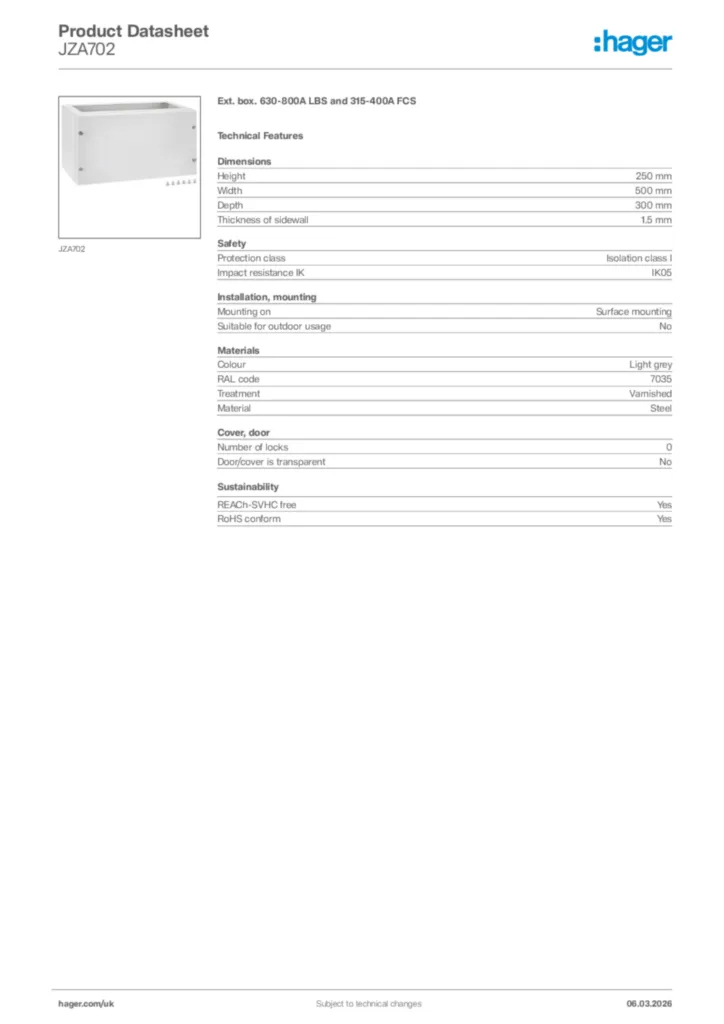

    • GeneratedProductDatasheet

      Image Hager Product data sheet JZA702 | Hager UK

      Hager Product data sheet JZA702

      Ext. box. 630-800A LBS and 315-400A FCS

      PDF

    • ProductInstallationManual

      Image notice interrupteurs sectionneurs fusibles sous coffret 20_800A | Hager UK

      notice interrupteurs sectionneurs fusibles sous coffret 20_800A

      Installation manual en-GB, fr-FR 2020-01-01

      PDF
      396,77 kB

    • ProductECDeclaration

      Image CE 24_3615_04_24 | Hager UK

      CE 24_3615_04_24

      Enclosed LBS Range

      PDF
      256,65 kB
      Image Declaration of conformity en-US 2026-07-14 | Hager UK

      Declaration of conformity en-US 2026-07-14

      PDF
      284,32 kB
      Image UKCA 24_3084_04_24 | Hager UK

      UKCA 24_3084_04_24

      Enclosed LBS Range

      PDF
      249,24 kB
