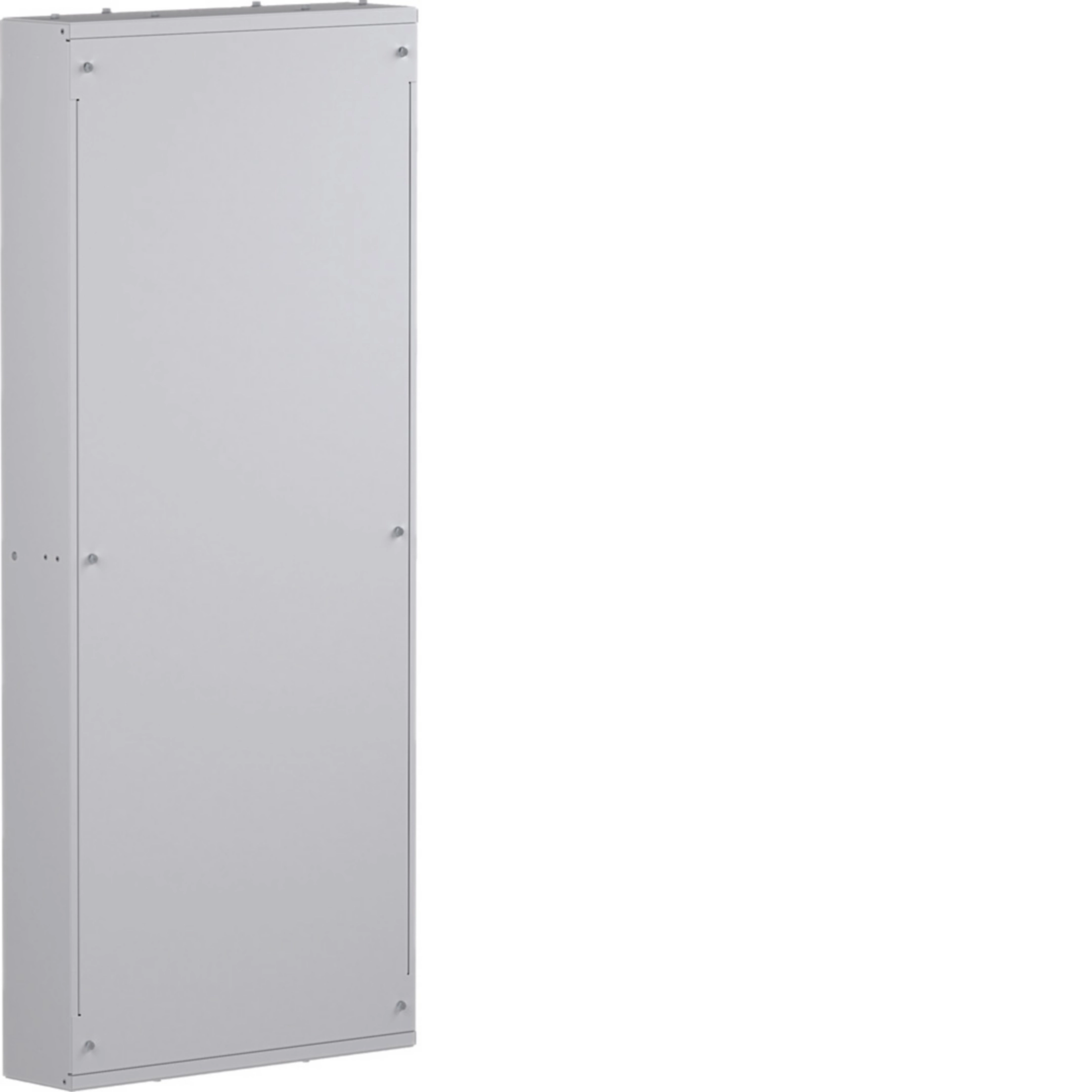

JK212 Full Width Side Ext Box Plain JK212BSF
EAN-Nr.
5015652252153
Packaging
1 piece
Price
£311.14
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,100 mm
-
Width465 mm
-
Depth165.50 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
-
Locking typeQuarter turn lock, Without lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

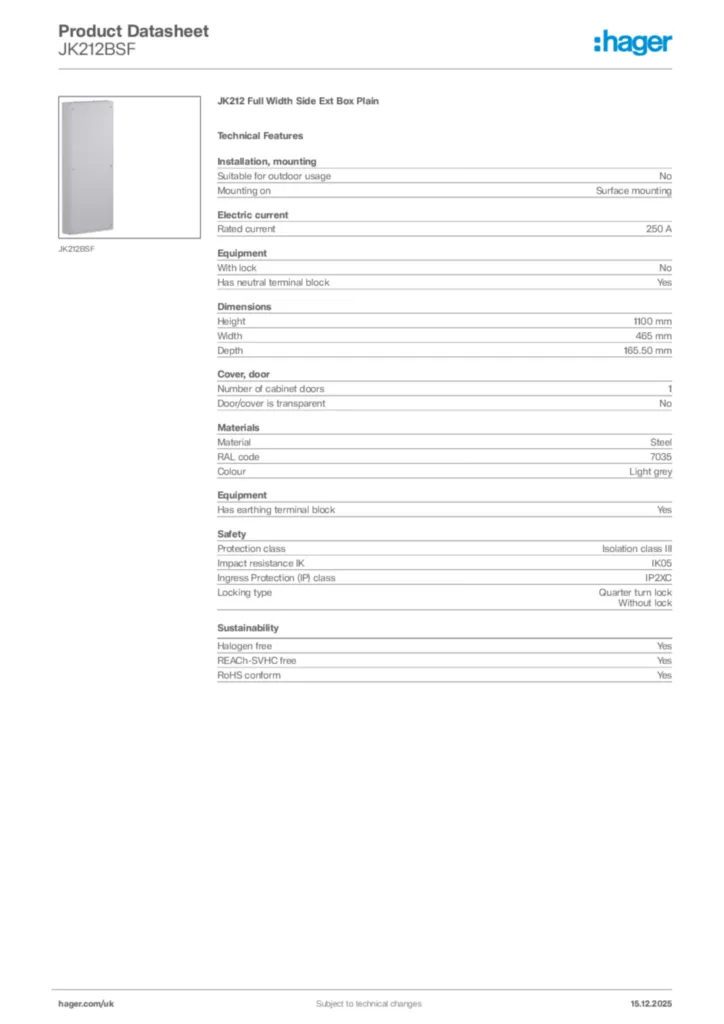

Hager Product data sheet JK212BSF
JK212 Full Width Side Ext Box Plain
PDF -
BIM Revit objects
Range : Type B TP&N Distribution Boards. Switchboard without DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,22 MB
Range : Type B TP&N Distribution Boards. Switchboard without DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,20 MB
Range Typ.B TP&N 250A Side Extension Boxes -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,21 MB
Range Typ.B TP&N 250A Side Extension Boxes -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,57 MB -
Product data sheet
UK_CD_TDS_SideExtensionboxes.pdf
Technical data sheet including dimensions for Side Extension Boxes.
PDF67,88 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
Declaration of conformity International 2023-12-20
PDF278,56 kB
Declaration of conformity International 2023-12-20
PDF288,18 kB
Declaration of conformity International 2023-12-20
PDF248,06 kB
Declaration of conformity International 2023-12-20
PDF253,91 kB
