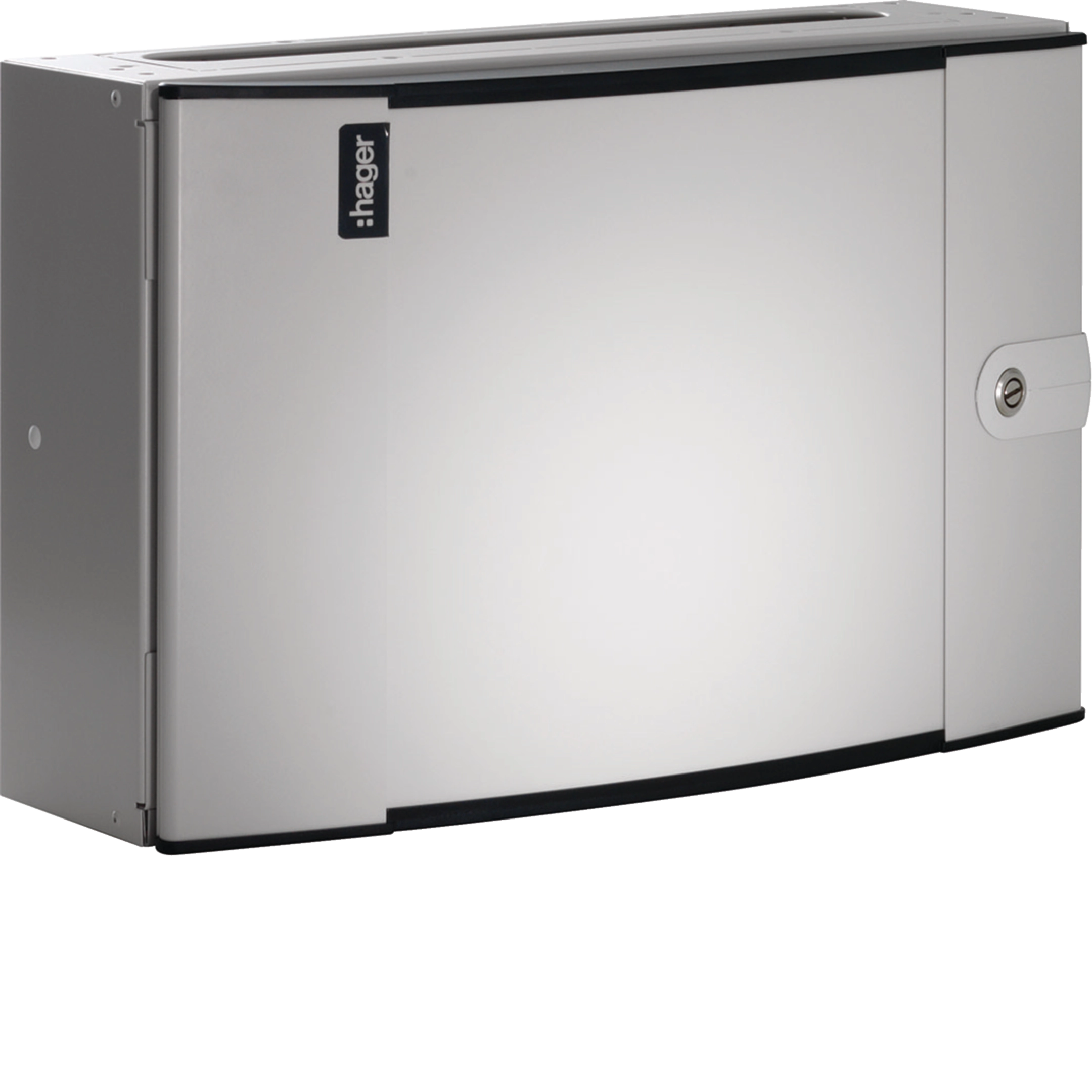

JK1 16 Module DIN Rail Box Plain JK116E

EAN-Nr.
5015652252672
Packaging
1 Prt.
Price
£191.65
/ piece *

Technical characteristics

Architecture
  • Fixing mode
    surface-mounting
Dimensions
  • Depth of installed product
    165.5 mm
  • Height of installed product
    300 mm
  • Width of installed product
    465 mm
Cover, door
  • Type of door closing
    Quarter turn lock
  • Door locking
    with key
Materials
  • Colour
    RAL 7035
  • Colour
    beige
  • RAL colour
    RAL 7035 - Light grey
  • Material
    Steel
Equipment
  • Number of rows
    1
Standards
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP30

Downloads

  • Product image

    Image JK116E  | Hager

    Product Image JK116E

  • BIM models

    Image BIM models for JK116E  | Hager

    BIM models for JK116E

    UK_CD_BIM_TPN.zip

    ZIP
    1 MB
    Image BIM models for JK116E  | Hager

    BIM models for JK116E

    Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    RFA
    1 MB
    Image BIM models for JK116E  | Hager

    BIM models for JK116E

    Range Typ.B TP&N DIN Extension Boxes 125A -Revit Family 2020 hosted-V2021

    RFA
    1 MB
    Image BIM models for JK116E  | Hager

    BIM models for JK116E

    Range Typ.B TP&N DIN Extension Boxes 125A -Revit Family 2020 no hosted-V2021

    RFA
    1 MB
    Image BIM models for JK116E  | Hager

    BIM models for JK116E

    Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    RFA
    1 MB

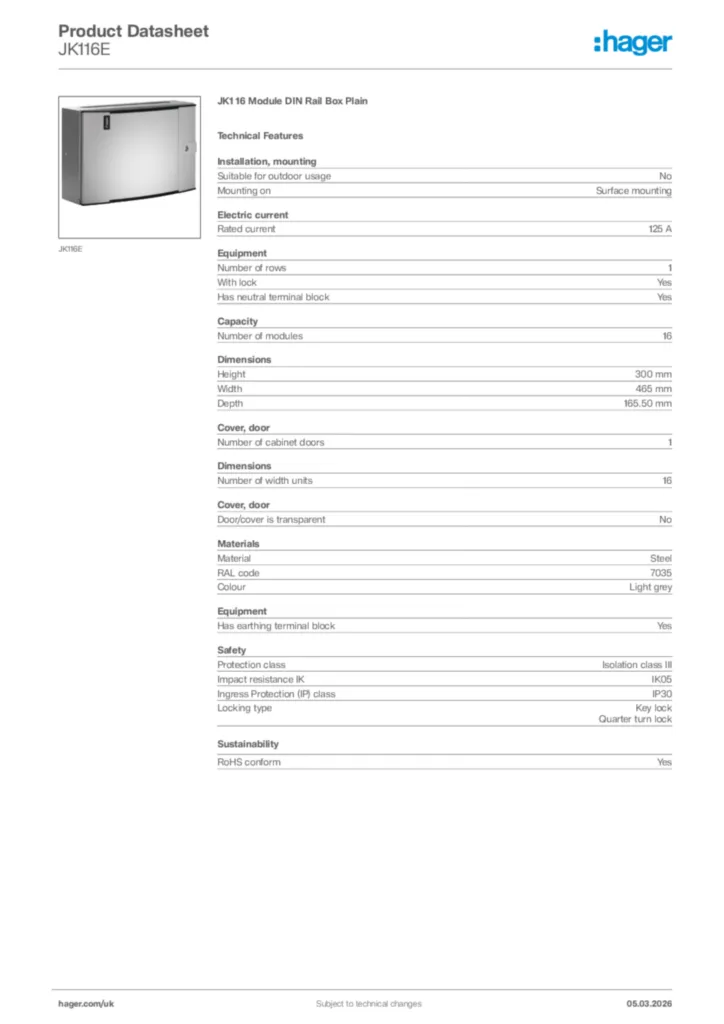

  • Product datasheet

    Image Product data sheets for JK116E  | Hager

    Product data sheets for JK116E

    UK_CD_TDS_DINEXTCABLESPREADER.pdf

    PDF
    77 KB
  • Product declaration

    Image EU Declaration of conformity for JK116E  | Hager

    EU Declaration of conformity for JK116E

    Declaration

    PDF
    276 KB
More documentation
*Data is subject to errors and technical modifications. Prices are trade price, exclusive of VAT.
