125A 6 Way IP65 GRP TPN Board JK106BF
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
-
Fixing modesurface-mounting
-
Depth of installed product300 mm
-
Height of installed product800 mm
-
Width of installed product600 mm
-
Type of door closingBarrel lock
-
Door lockingwith key
-
Colourbeige
-
RAL colourRAL 7035 - Light grey
-
Materialplastic
-
European directive WEEEconcerned
-
Protection index IPIP65
-
Protection classisol.class II
Downloads
-
Product image
-
Instruction manual
Instruction manuals for JK106BF
UK_HAGER_INS_IPRATINGS.pdf
PDF356 KB -
Installation handbook
Installation handbooks for JK106BF
JK1**BF/BD
PDF1 MB -
Catalogue
Commercial Distribution Catalogue
PDF14 MB -
BIM Revit objects
BIM models for JK106BF
UK_CD_BIM_TPN.zip
ZIP1 MBBIM models for JK106BF
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK106BF
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK106BF
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 no hosted-V2021
RFA1 MBBIM models for JK106BF
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 hosted-V2021
RFA1 MB -

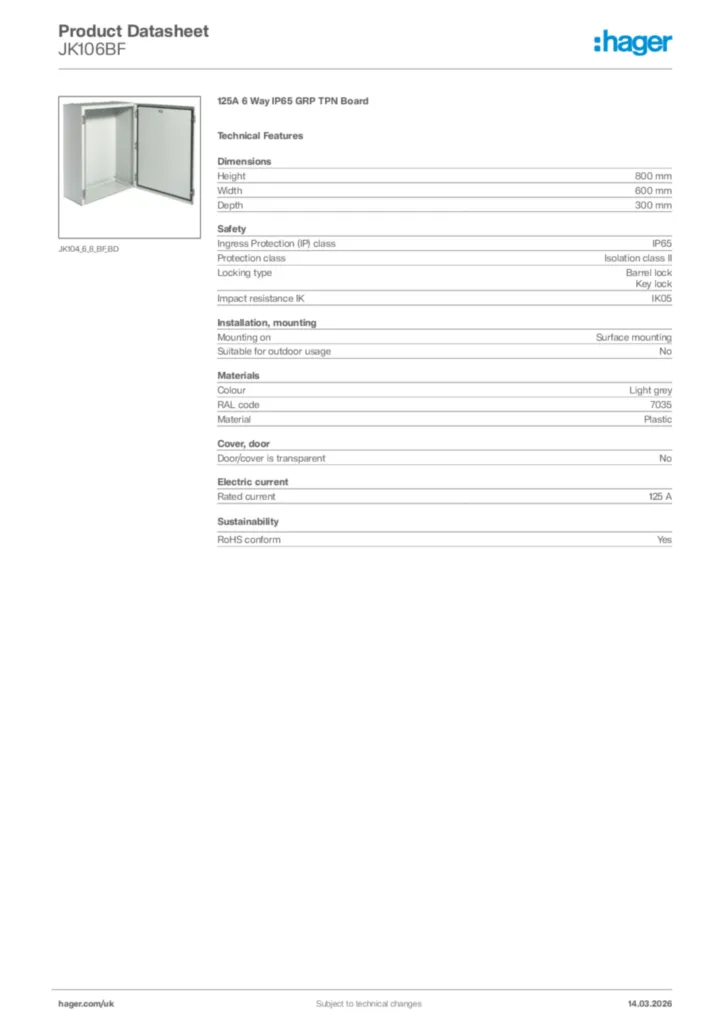

Product data sheet
Product data sheets for JK106BF
PDF1 MB -
Declaration of conformity
EU Declaration of conformity for JK106BF
Declaration
PDF158 KBEU Declaration of conformity for JK106BF
Declaration
PDF152 KBEU Declaration of conformity for JK106BF
PDF163 KBEU Declaration of conformity for JK106BF
PDF158 KB -
RoHS report
Pollutant guidelines for JK106BF
REACH-declaration 2023-10-20 (english)
PDF32 KB
