JK106

100A 6 Way A Board

EAN

3250610433119

Quantity

1

Trade price*

£99.56 /prt.*

Technical characteristics
Documentations
Tools and software
More products

Download Technical Characteristics

Technical characteristics

Architecture
- Fixing mode
  surface-mounting
Main electrical features
- Rated current
  100 A
Dimensions
- Depth of installed product
  125 mm
- Height of installed product
  236 mm
- Width of installed product
  254 mm
Capacity
- Number of modules
  6
Cover, door
- Type of door closing
  Quarter turn lock
- Interlockable
  No
Materials
- Colour
  beige
- RAL colour number
  7035
- Material
  Steel
Equipment
- Number of rows
  1
- Can be accessorized
  No
Standards
- European directive WEEE
  concerned
Safety
- Protection index IP
  IP2XC
- Protection class
  isol.class I

Documentations

Instruction manuals for JK106	500 KB	pdf	Download

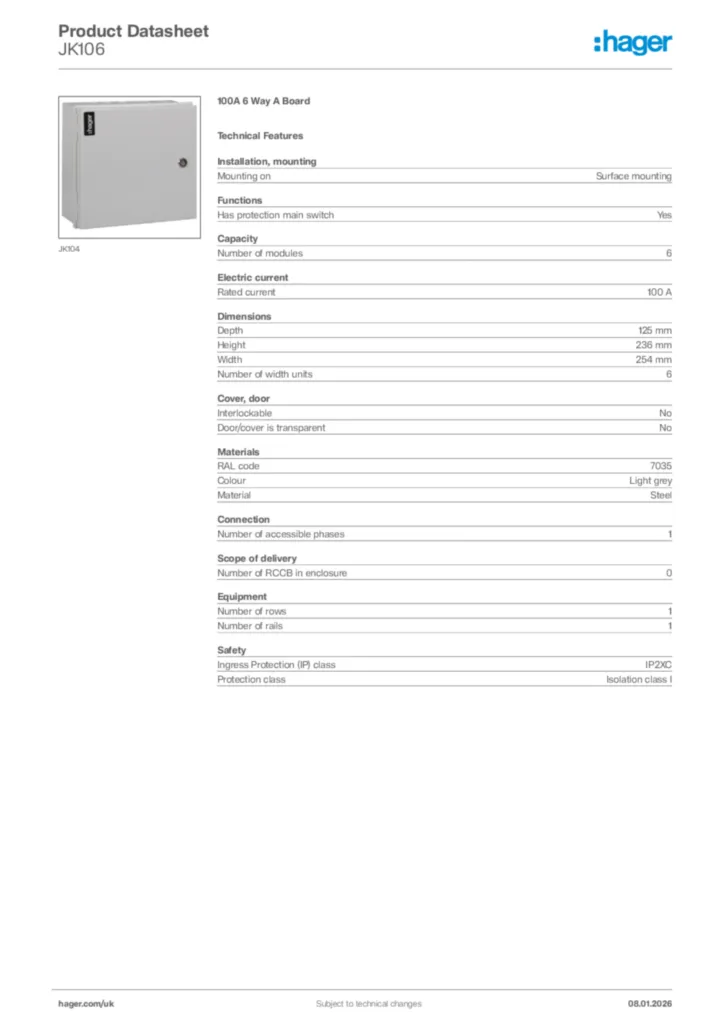

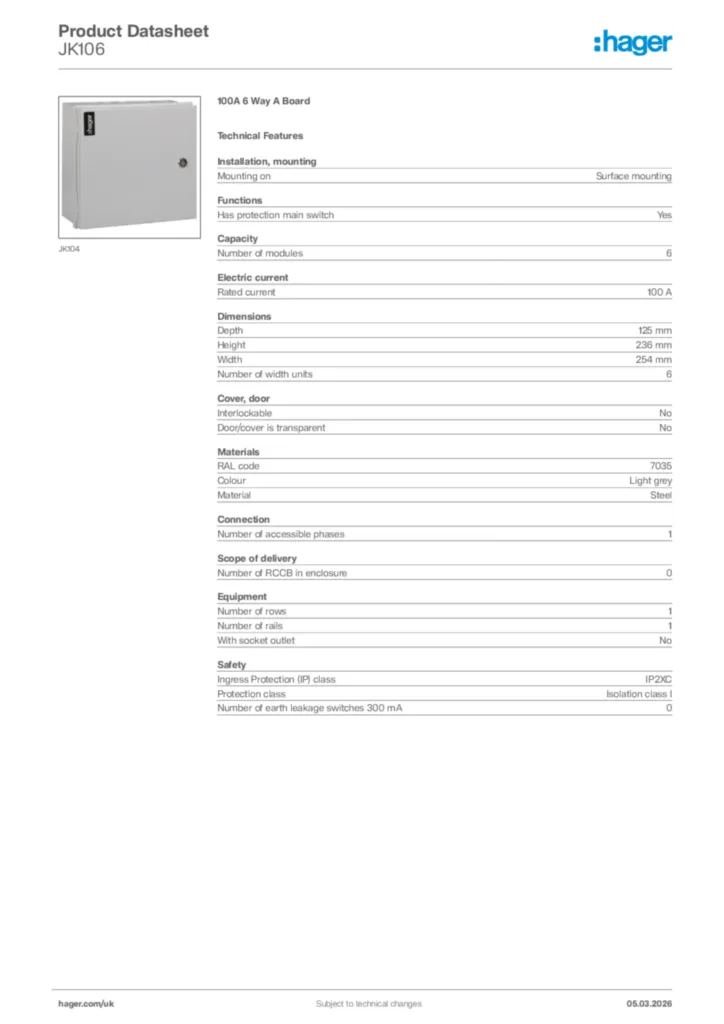

Product data sheets for JK106 Technical data sheet including dimensions for A Boards.	103 KB	pdf	Download
Commercial Distribution Catalogue Solutions for commercial & industrial premises. Including our Invicta 3 TP&N boards, Panelboards, Plug-In Metering and much more.	13753 kb	pdf	Download
