JK1 Half Width Side Ext Box Plain JK104BSH
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
-
Fixing modesurface-mounting
-
Depth of installed product91.5 mm
-
Height of installed product500 mm
-
Width of installed product465 mm
-
Type of door closingnon keylock
-
Door lockingwithout
-
ColourRAL 7035
-
Colourbeige
-
RAL colourRAL 7035 - Light grey
-
MaterialSteel
-
European directive WEEEconcerned
-
Protection index IPIP2XC
-
Protection classProtection class III
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB -
BIM Revit objects
BIM models for JK104BSH
UK_CD_BIM_TPN.zip
ZIP1 MBBIM models for JK104BSH
Range : Type B TP&N Distribution Boards. Switchboard IP30 without DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK104BSH
Range : Type B TP&N Distribution Boards. Switchboard IP30 without DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK104BSH
Range Typ.B TP&N 125A Half Width Side Extension Boxes -Revit Family 2020 no hosted-V2021
RFA1 MBBIM models for JK104BSH
Range Typ.B TP&N 125A Half Width Side Extension Boxes -Revit Family 2020 hosted-V2021
RFA1 MB -

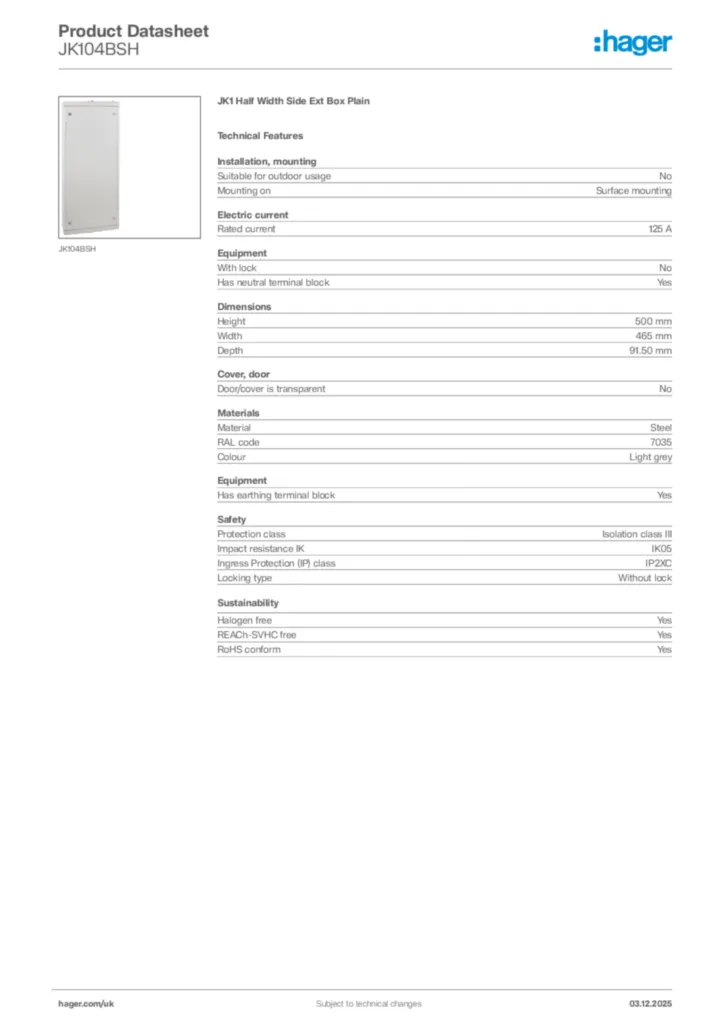

Product data sheet
