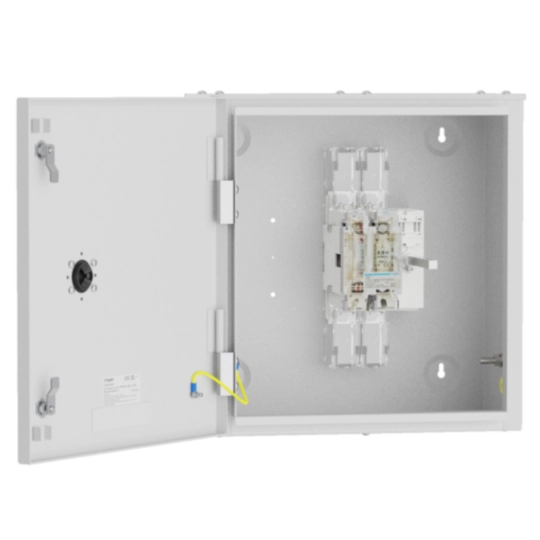

Enclosed Fuse combin. switch TPSN 250A JFG425U
Price
£2,366.96
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Empty cabinet 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
JZA701
Ext. box. 200-400A LBS and 125-250A FCS
£286.51 / piece*
Technical characteristics
Electric current
-
Rated current IN160 A
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
Voltage
-
Rated insulation voltage Ui800 V
Safety
-
Ingress Protection (IP) classIP41
Fuse
-
Fuse sizeB3 - B4
Dimensions
-
Height500 mm
-
Width375 mm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

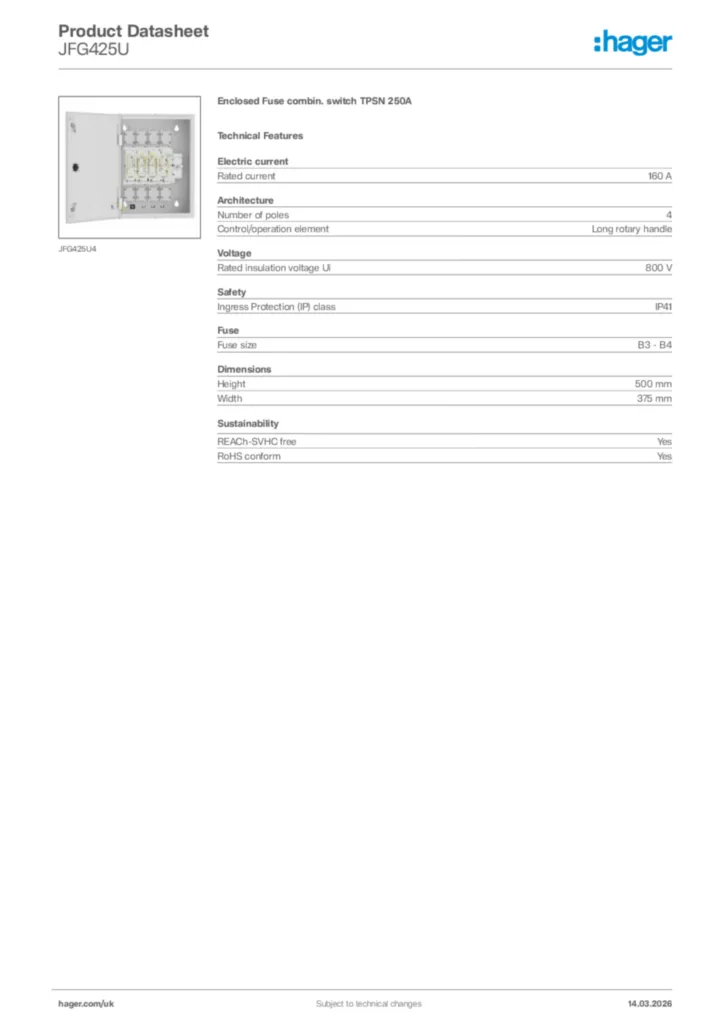

Hager Product data sheet JFG425U
Enclosed Fuse combin. switch TPSN 250A
PDF -
ProductNotice
Instruction manual en-GB 2024-02-27
PDF17,50 MB -
ProductInstallationManual
notice interrupteurs sectionneurs fusibles sous coffret 20_800A
Installation manual en-GB, fr-FR 2020-01-01
PDF396,77 kB -
ProductDataSheet
UK_CD_TDS_BSEN60947-3
Product data sheet en-GB 2024-03-22
PDF55,57 kB
UK_HAGER_TDS_Fusecombinationswitches.pdf
Technical data sheet for fuse combination switches
PDF77,14 kB
UK_HAGER_TDS_FusecombinationswitchesDIMENSIONS.pdf
Technical data sheet including dimensions for fuse combinations switches and switch disconnectors.
PDF50,01 kB -
ProductECDeclaration
Declaration
Declaration of conformity International 2022-02-07
PDF836,40 kB
Declaration of conformity en-US 2026-07-14
PDF284,32 kB
