    • Home
    • Catalogue
    • Commer­cial & Resid­en­tial Distri­bu­tion Boards
    • Commer­cial Distri­bu­tion Boards
    • Invicta - 250A-800A Panel­boards
    • JF80210B800LBS
    EAN-Nr.
    5015652276050
    Packaging
    1 piece
    • Invicta - 250A-800A Panel­boards

    800A LBS 12 Way 2*250A + 10*125A Plain JF80210B800LBS

    Price
    £6,828.57
    / piece *
    £6,828.57
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    800A LBS 12 Way 2*250A + 10*125A Plain

    JF80210B800LBS

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Blanking plate for enclosure 1 products available

    Complete your system

    • Blanking plate for enclosure
    • JF003BP

      3 Pole Blanking Plate 250A Frame
      £25.70  / piece*

    Technical characteristics

    Connec­tion
    • Number of access­ible phases
      3
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      800 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Capa­city
    • Number of modules
      36
    Dimen­sions
    • Height
      1,400 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class III
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Barrel lock
    • Protec­tion class with door
      IP1X

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    REACH declaration JF80210B800LBS
    PDF

    Downloads

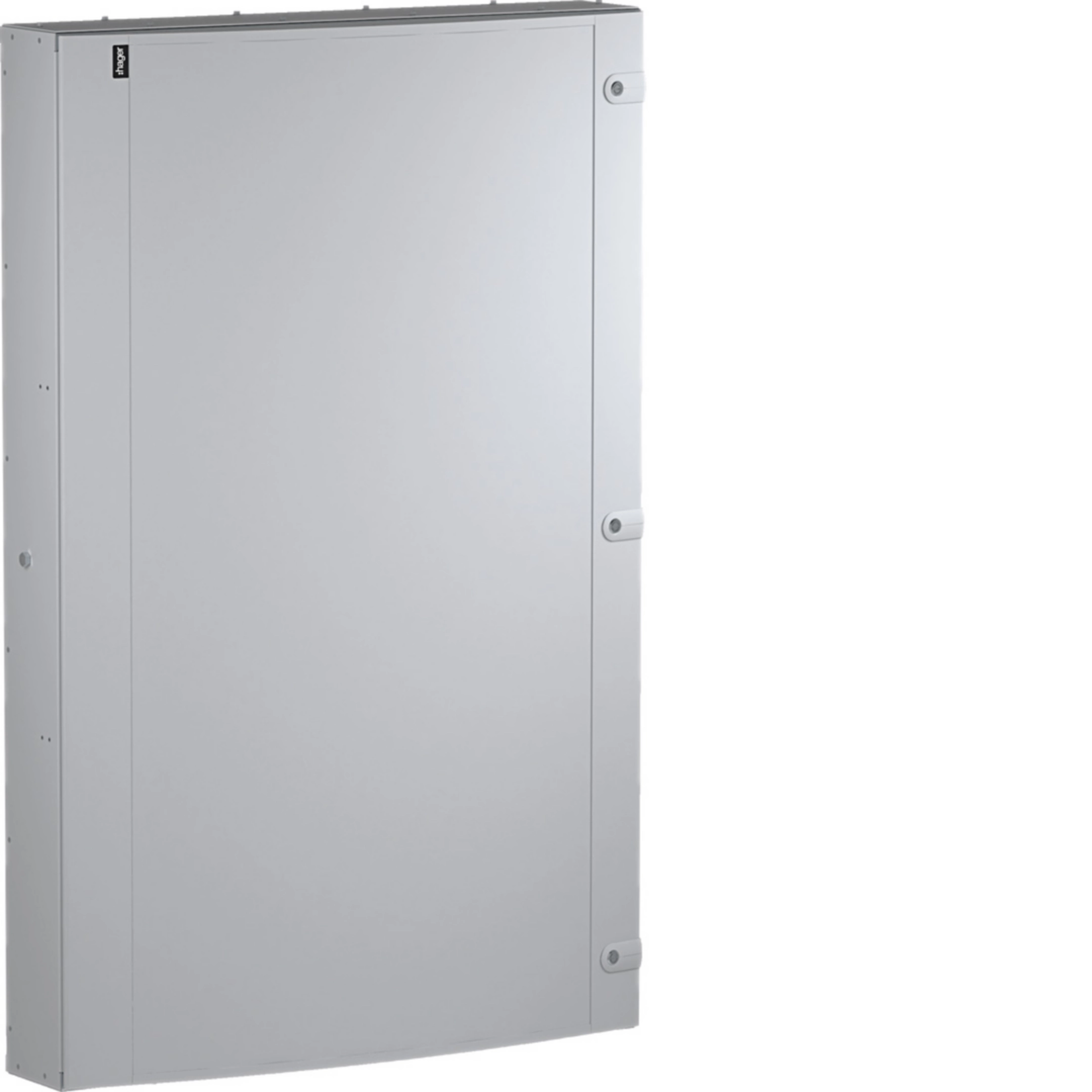

    • Product image

      Image JF80210B800LBS | Hager

      Product Image JF80210B800LBS

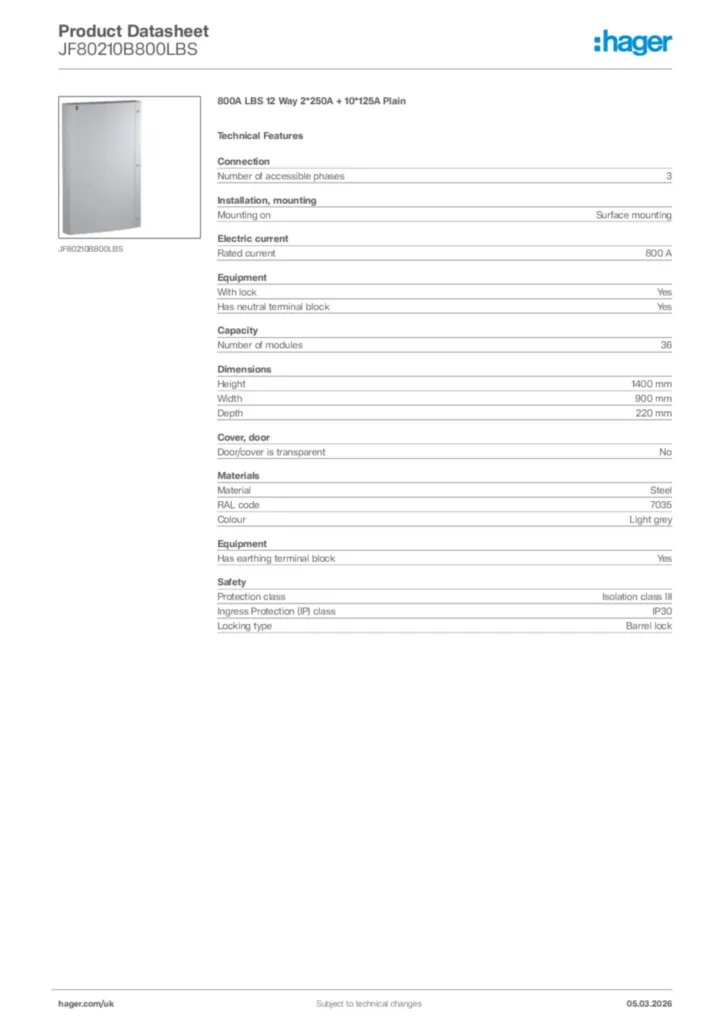

    • Product datasheet

      Image Hager Product data sheet JF80210B800LBS | Hager

      Hager Product data sheet JF80210B800LBS

      800A LBS 12 Way 2*250A + 10*125A Plain

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      244,86 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      246,50 kB
    More documentation

    Discover our other products of this range

      5
    • 1
      JN212BG - Consumer unit 14-way 100A switch disconnector 2P surface mount IP2XC IK05
      JN212BG
      250A 12 Way 125A Outgoers Glazed
      Price
      £2,151.62
      / piece *
      £2,151.62
      / piece *
    • 2
      JN9502SM - 4 Way Side Extension Encl 950mm DIN 96 x 2 Meters
      JN9502SM
      4 Way Side Extension Encl 950mm DIN 96 x 2 Meters
      Price
      £743.44
      / piece *
      £743.44
      / piece *
    • 3
      JF15508SM - 16 Way Side Extension Encl DIN 96 x 8
      JF15508SM
      16 Way Side Extension Encl DIN 96 x 8
      Price
      £964.46
      / piece *
      £964.46
      / piece *
    • 4
      JN3003TM - 300mm Top Extension
      JN3003TM
      300mm Top Extension
      Price
      £372.60
      / piece *
      £372.60
      / piece *
    • 5
      JN15508SM - 16 Way Side Extension Encl 1550mm DIN 96 x 8 Meters
      JN15508SM
      16 Way Side Extension Encl 1550mm DIN 96 x 8 Meters
      Price
      £847.52
      / piece *
      £847.52
      / piece *
