Earth Leakage Relay 0.3A instantaneous Trip Type A HR502
EAN-Nr.
3250613281304
Packaging
1 piece
Price
£355.11
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Main electrical features
-
Rated operational voltage Ue230 V
Voltage
-
Max operating voltage276 V
Electric current
-
Rated residual operating current300 mA
Power
-
Power consumed3 VA
Installation, mounting
-
Tightening torque1,7Nm
Connection
-
Connection cross-sect. flexible conductor1 / 2,5mm²
-
Connection cross-sect. rigid cable1,5 / 4mm²
Standards
-
European directive WEEEconcerned
Safety
-
Protection index IPIP30
-
Residual current typeA
Use conditions
-
Operating temperature-10…55 °C
Downloads
-

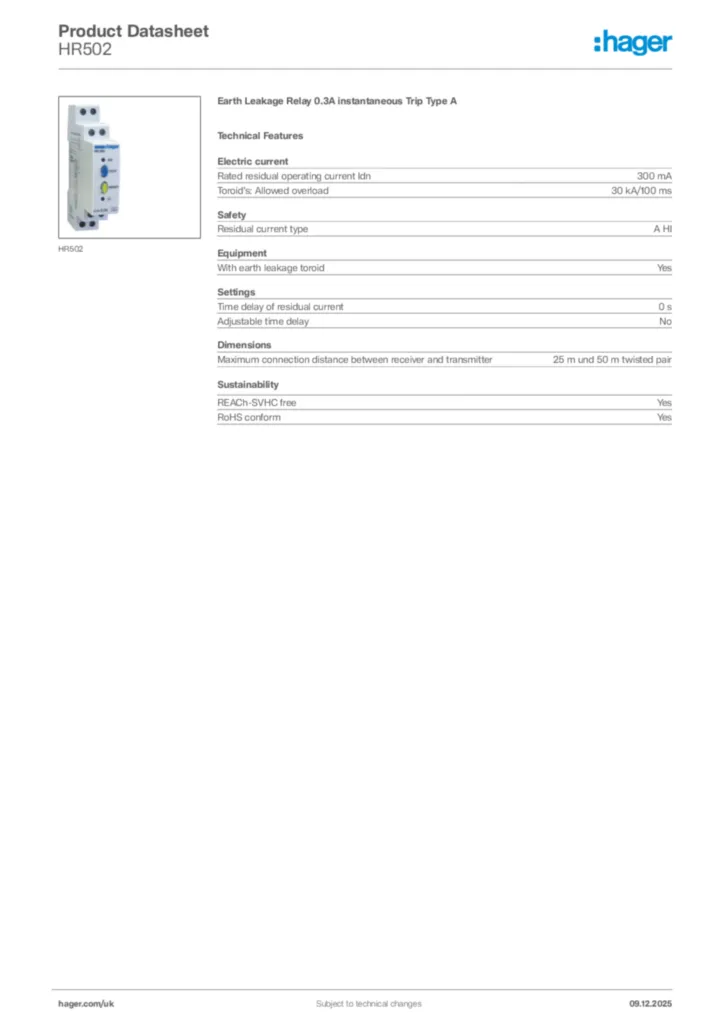

Product image
-
Product notice
Instruction manuals for HR502
Notice HR500, HR502 FR, DE, GB, ES, PT
PDF166 KB -
Catalogue
Commercial Distribution Catalogue
PDF14 MB -
Product declaration
EU Declaration of conformity for HR502
Declaration
PDF145 KBEU Declaration of conformity for HR502
Declaration
PDF943 KB -
Product ROHS
Pollutant guidelines for HR502
RoHS-declaration 2023-10-20 (english)
PDF33 KBPollutant guidelines for HR502
REACH-declaration 2023-10-20 (english)
PDF32 KB
