    EAN-Nr.
    3250613281298
    Packaging
    1 piece

    Earth Leakage Relay 0.03A instantaneous Trip Type A HR500

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Earth Leakage Relay 0.03A instantaneous Trip Type A

    HR500

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Complete your system

    Optional accessories

    • Toroid residual current release 8 products available

    Complete your system

    • Toroid residual current release
    • HR832

      Rectangular Toroid 150x350mm for Type A Earth Leakage Relay
      £2,903.96  / piece*
    • HR831

      Rectangular Toroid 115x305mm for Type A Earth Leakage Relay
      £2,254.43  / piece*
    • HR830

      Rectangular Toroid 70x175mm for Type A Earth Leakage Relay
      £899.96  / piece*
    • HR704

      Circular Section Torroid 140mm For Type A Earth Leakage Relay
      £804.91  / piece*
    • HR703

      Circular Section Torroid 105mm For Type A Earth Leakage Relay
      £454.58  / piece*
    • HR702

      Circular Section Torroid 70mm For Type A Earth Leakage Relay
      £398.11  / piece*
    • HR701

      Circular Section Torroid 35mm for Type A Earth Leakage Relay
      £389.99  / piece*
    • HR700

      Circular Section Torroid 30mm for Type A Earth Leakage Relay
      £368.89  / piece*

    Technical characteristics

    Elec­tric current
    • Rated residual oper­ating current Idn
      30 mA
    • Toroid's: Allowed over­load
      30 kA/100 ms
    Equip­ment
    • With earth leakage toroid
      Yes
    Safety
    • Residual current type
      A
    Settings
    • Time delay of residual current
      0
    • Adjustable time delay
      No
    Dimen­sions
    • Maximum connec­tion distance between receiver and trans­mitter
      25 m und 50 m twisted pair

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration HR500
    PDF
    RoHS report HR500
    PDF

    Downloads

    • Product image

      Image HR500 | Hager

      Product Image HR500

    • Product datasheet

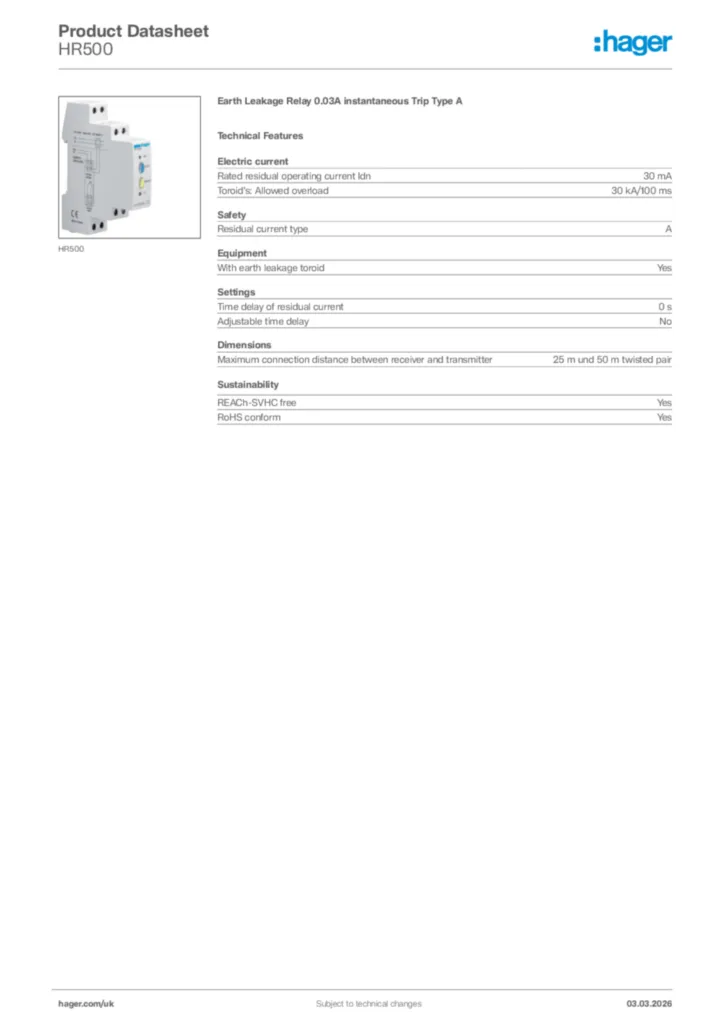

      Image Hager Product data sheet HR500 | Hager

      Hager Product data sheet HR500

      Earth Leakage Relay 0.03A instantaneous Trip Type A

      PDF

    • Installation manual

      Image Notice HR500, HR502 FR, DE, GB, ES, PT | Hager

      Notice HR500, HR502 FR, DE, GB, ES, PT

      Installation manual en-GB, es-ES, fr-FR, de-DE, pt-PT 2020-01-01

      PDF
      166,57 kB

    • Product data sheet

      Image UK_PD_TDS_EARTHFAULTRELAY.pdf | Hager

      UK_PD_TDS_EARTHFAULTRELAY.pdf

      Technical data sheet including characteristics for earth fault relays.

      PDF
      95,85 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-22

      PDF
      145,54 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-13

      PDF
      943,64 kB
