Load Break Switch Disconnector h3+ PW1600 4P 1250A FTC HMQ981AR
Price
£2,882.62
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical characteristics
Electric current
-
Rated current IN1,250 A
-
Rated short-time withstand current Icw IEC 6094719.2 kA
-
Rated current at 10°C according to IEC 609471,250 A
-
Rated current at 15°C according to IEC 609471,250 A
-
Rated current at 20°C according to IEC 609471,250 A
-
Rated current at 25°C according to IEC 609471,250 A
-
Rated current at 30°C according to IEC 609471,250 A
-
Rated current at 35°C according to IEC 609471,250 A
-
Rated current at 40°C according to IEC 609471,250 A
-
Rated current at 45°C according to IEC 609471,250 A
-
Rated current at 50°C according to IEC 609471,250 A
-
Rated current at 55°C according to IEC 609471,250 A
-
Rated current at 60°C according to IEC 609471,250 A
-
Rated current at 65°C according to IEC 609471,250 A
-
Rated current at 70°C according to IEC 609471,250 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp8 kV
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Dimensions
-
Height330 mm
-
Width280 mm
-
Depth198 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

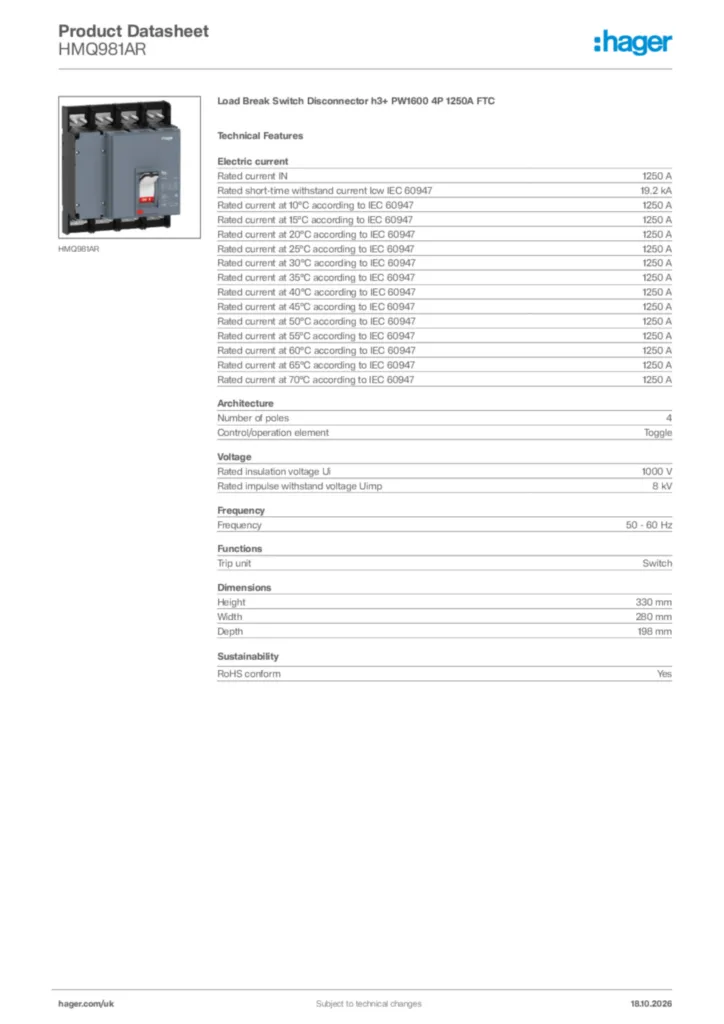

Hager Product data sheet HMQ981AR
Load Break Switch Disconnector h3+ PW1600 4P 1250A FTC
PDF -
Installation manual
Installation manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF40,05 MB
QuickInstall manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF25,64 MB -
Manual
Technical catalogue
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF37,95 MB
User manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF11,76 MB -
Declaration of conformity
Declaration of conformity en-US 2026-07-15
PDF256,24 kB
UKCA DECLARATION OF CONFORMITY
Version of January 16, 2024
PDF404,40 kB
