Moulded Case Circuit Breaker h3+ P160 MAG 4P4D 160A 25kA CTC HHS161BC

Name: HHS161BC
Brand: Hager
SKU: HHS161BC20
Price: 793.29 GBP

EAN-Nr.

3250613212827

Packaging

1 piece

Price

£793.29

/ piece *

Technical characteristics
Environmental value
Documentations
More products

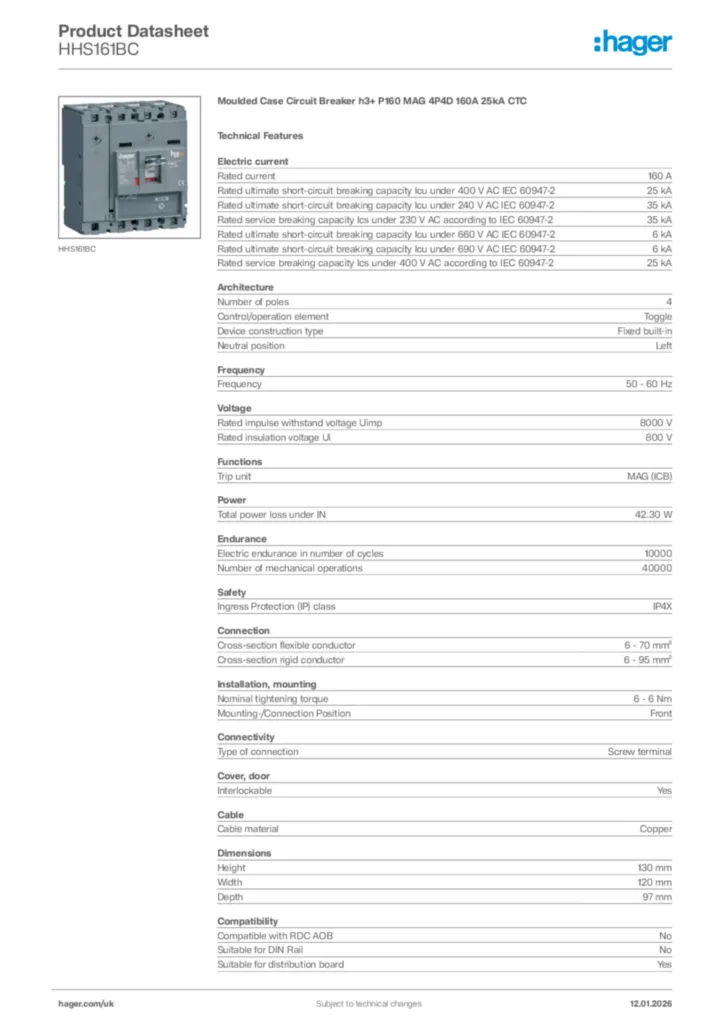

Download the sheet

Technical characteristics

Rated current

160 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

35 kA
Rated ultimate short-circuit breaking capacity Icu under 660 V AC IEC 60947-2

6 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

6 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

25 kA

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Left

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

MAG (ICB)

Total power loss under IN

42.30 W

Electric endurance in number of cycles

10,000
Number of mechanical operations

40,000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

6 - 70 mm²
Cross-section rigid conductor

6 - 95 mm²

Nominal tightening torque

6 - 6 Nm
Mounting-/Connection Position

Front

Type of connection

Screw terminal

Interlockable

Yes

Cable material

Copper

Height

130 mm
Width

120 mm
Depth

97 mm

Compatible with RDC AOB

No
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Instantaneous protection (li): dial setting coefficient

6, 7, 8, 9, 10

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACh-SVHC free Yes
