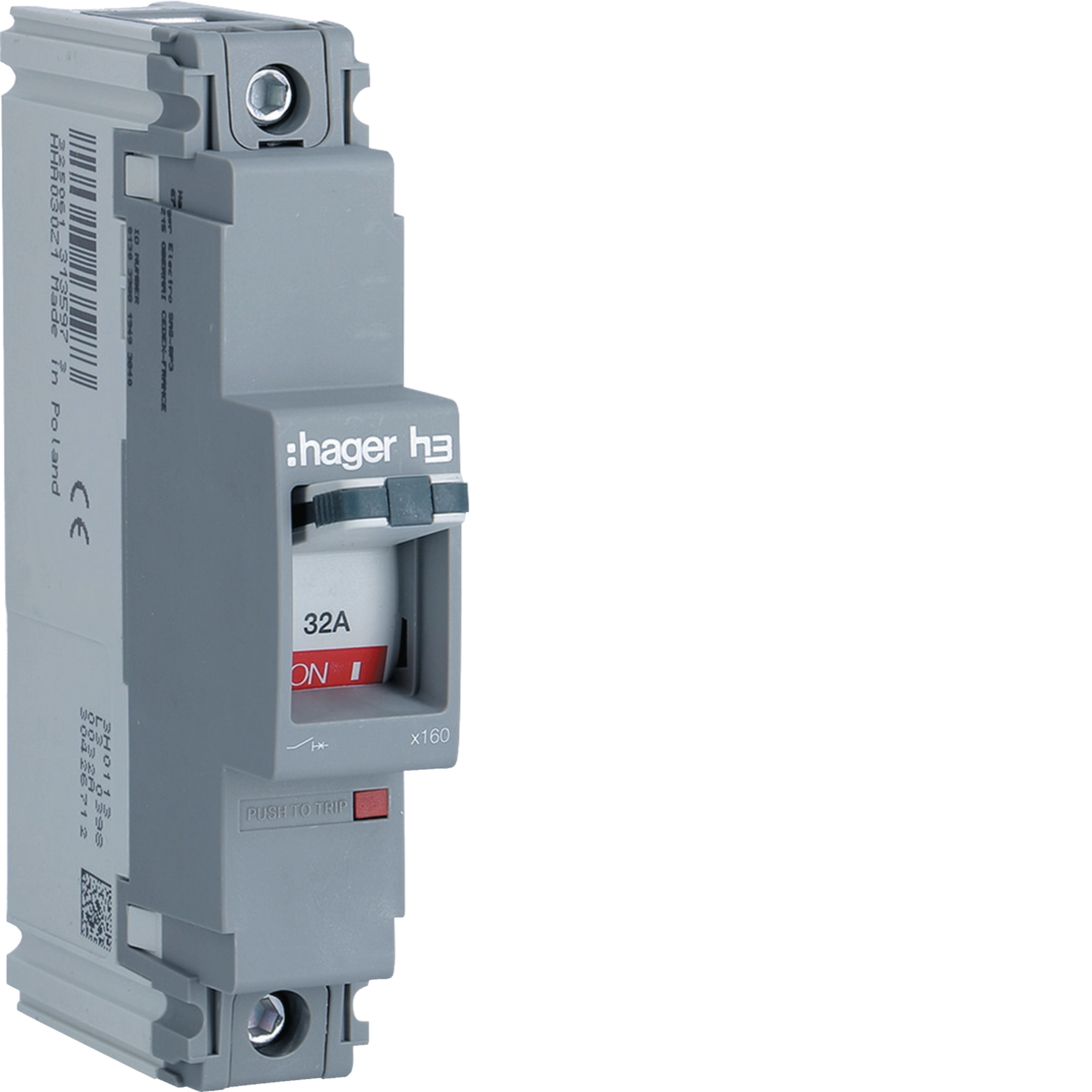

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 32A 25kA CTC
HHA030E
You have to log in with your myHager profile to see prices and to order.
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
-
Neutral position
without neutral
-
-
Rated operational voltage Ue
220 / 240 V
-
-
Type of supply voltage
AC
-
Rated insulation voltage
690 V
-
Rated impulse withstand voltage
8 kV
-
Depth of installed product
68 mm
-
Height of installed product
130 mm
-
Width of installed product
25 mm
-
Total power loss under IN
2.81 W
-
Electric endurance in number of cycles
1000
-
Number of mechanical operations
4000
-
Connection cross-sect. rigid cable
6 / 95mm²
-
Type of connection
with screw
-
Number of auxiliary contacts as normally closed contact
0
-
Number of auxiliary contacts as normally open contact
0
-
Number of auxiliary contacts as change-over contact
0
-
-
European directive WEEE
concerned
