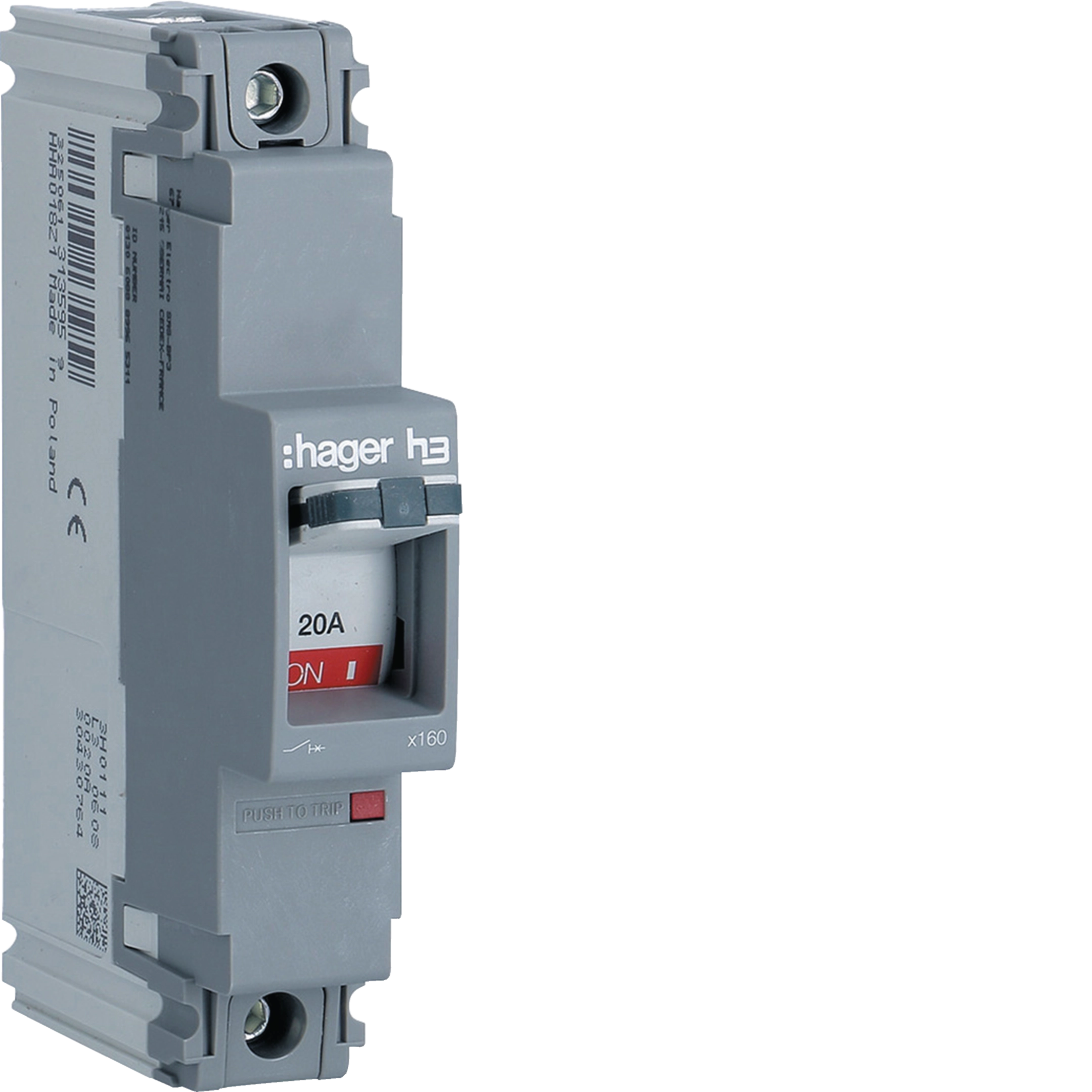

HHA018E - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 25kA CTC
HHA018E - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 25kA CTC

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 25kA CTC HHA018E

EAN-Nr.
3250613164553
Packaging
1 Prt.
£201.43
/ piece *

Technical characteristics

Architecture
  • Neutral position
    without neutral
  • Number of poles
    1 P
Main electrical features
  • Rated operational voltage Ue
    220 / 240 V
  • Frequency
    50/60 Hz
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    690 V
  • Rated impulse withstand voltage
    8 kV
Dimensions
  • Depth of installed product
    68 mm
  • Height of installed product
    130 mm
  • Width of installed product
    25 mm
Power
  • Total power loss under IN
    3.39 W
Endurance
  • Electric endurance in number of cycles
    1000
  • Number of mechanical operations
    4000
Installation, mounting
  • Tightening torque
    6Nm
Connection
  • Type of connection
    with screw
Cable
  • Cable Material
    Cu
Equipment
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Can be accessorized
    Yes
Standards
  • Standard text
    IEC 60947-2

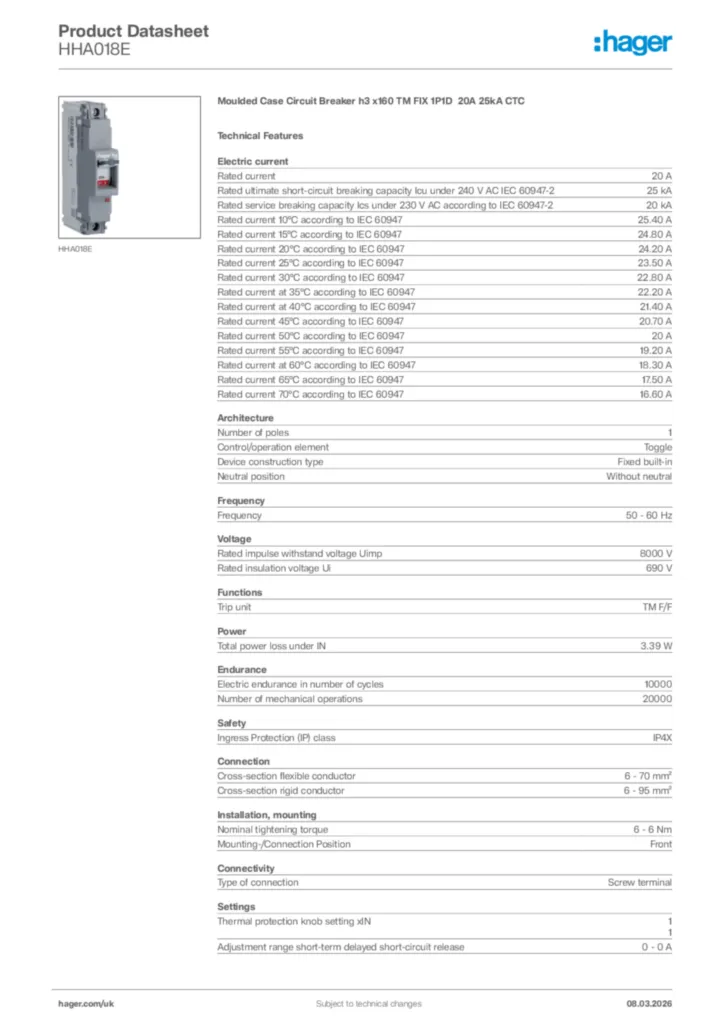

Downloads
