Moulded Case Circuit Breaker h3+ PW1600 LI 3P3D 1000A 70kA FTC HEQ970FR
Price
£3,558.39
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Locking interlocking functions 1 product.page.accessories.products-available
Technical characteristics
Electric current
-
Rated current IN1,000 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-219.2 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-219.2 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-230 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-230 kA
-
Rated current at 10°C according to IEC 609471,000 A
-
Rated current at 15°C according to IEC 609471,000 A
-
Rated current at 20°C according to IEC 609471,000 A
-
Rated current at 25°C according to IEC 609471,000 A
-
Rated current at 30°C according to IEC 609471,000 A
-
Rated current at 35°C according to IEC 609471,000 A
-
Rated current at 40°C according to IEC 609471,000 A
-
Rated current at 45°C according to IEC 609471,000 A
-
Rated current at 50°C according to IEC 609471,000 A
-
Rated current at 55°C according to IEC 609471,000 A
-
Rated current at 60°C according to IEC 609471,000 A
-
Rated current at 70°C according to IEC 609471,000 A
-
Rated current at 65°C according to IEC 609471,000 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Tripping
-
Response time when opening12 ms
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque50-50 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8 kV
-
Rated insulation voltage Ui1,000 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitSentinel LI
Power
-
Power dissipation at IN47.2 W
-
Power loss per pole at In4.6 W
Endurance
-
Electric endurance in number of cycles4,000
-
Number of mechanical operations20,000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Connection
-
Connector/plug typeTerminal
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper, Aluminium
Dimensions
-
Height330 mm
-
Width210 mm
-
Depth198 mm
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
-
Compatible with RDC AOBNo
-
Suitable for distribution boardYes
Power supply
-
Position power supplyBidirectional
Connectivity
-
Type of connectionBolt connection
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1 s, 2 s, 4 s, 5 s, 8 s, 10 s, 15 s, 20 s, 25 s
-
Instantaneous protection (li): dial setting coefficient1.5, 2, 3, 4, 6, 8, 10, 12, 15
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

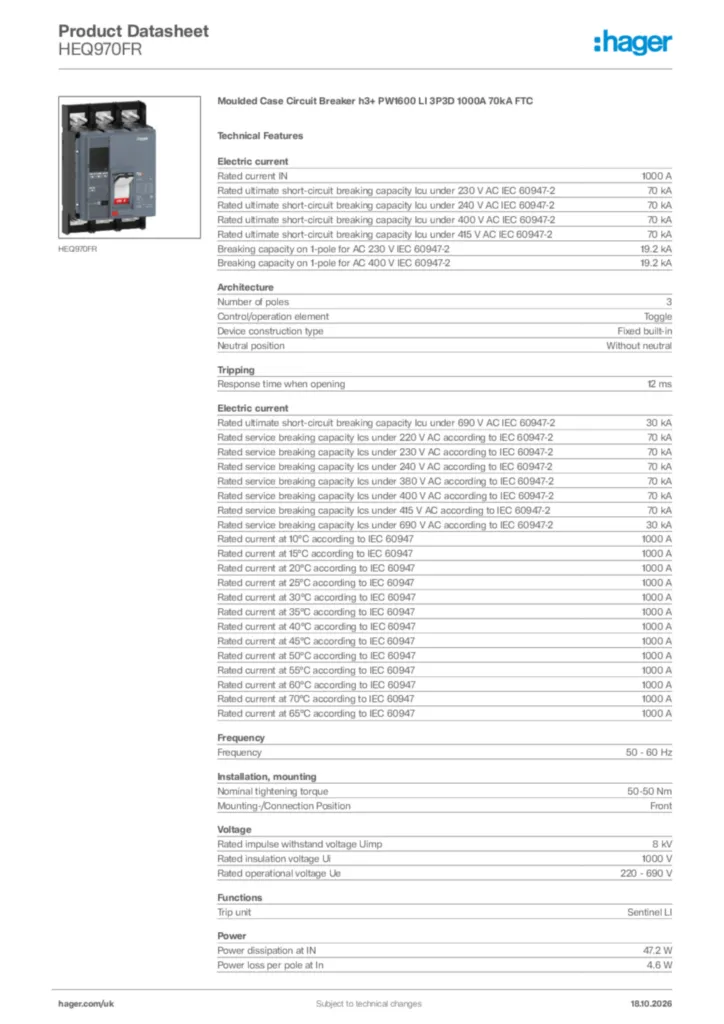

Hager Product data sheet HEQ970FR
