HDA030E

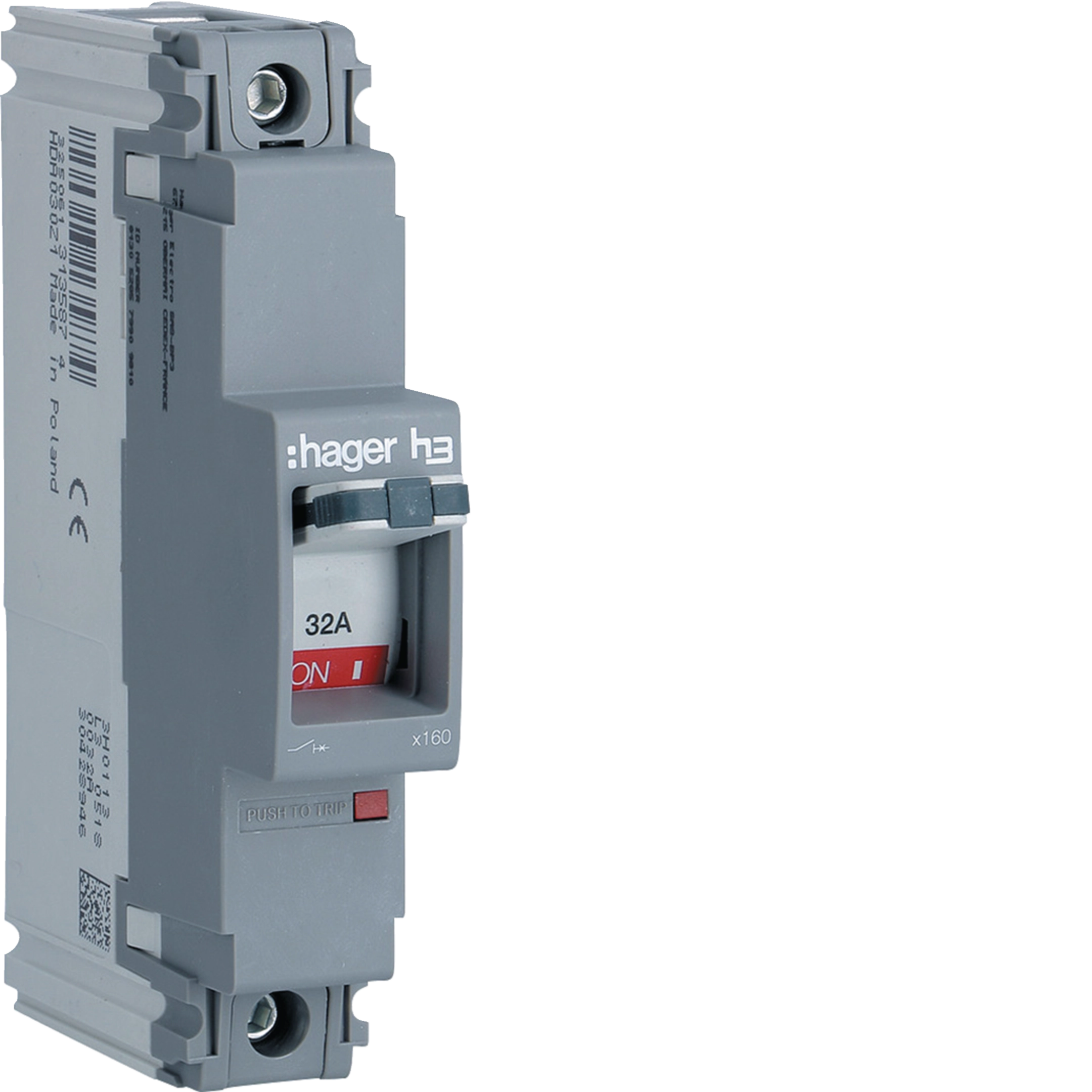

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 32A 18kA CTC
EAN
3250613164539
Quantity
1
Trade price*
£166.46 /prt.*
- Architecture
- Neutral position
- not applicable
- Number of poles
- 1 P
- Type of pole
- 1P1D
- Fixing mode
- DIN rail type O or type J
-
- Main electrical features
- Rated operational voltage Ue
- 220 / 240 V
- Frequency
- 50/60 Hz
- Rated current
- 32 A
-
- Voltage
- Rated insulation voltage
- 690 V
- Rated impulse withstand voltage
- 8 kV
-
- Dimensions
- Depth of installed product
- 68 mm
- Height of installed product
- 130 mm
- Width of installed product
- 25 mm
-
- Power
- Total power loss under IN
- 3 W
-
- Endurance
- Electric endurance in number of cycles
- 1000
- Number of mechanical operations
- 4000
-
- Connection
- Type of connection
- with screw
-
- Equipment
- Number of auxiliary contacts as normally closed contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as change-over contact
- 0
- Can be accessorized
- Yes
-
- Standards
- Standard text
- IEC 60947-2
- European directive WEEE
- concerned
-
- Safety
- Protection index IP
- IP4X
-
