Switch h630 4P 400A HCD401H
EAN-Nr.
3250613363130
Packaging
1 piece
Price
£1,655.43
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Motor operator 1 products available -
Terminal cover 2 products available -
Padlock barrier for switch 1 products available -
Shunt release 5 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
HXD042H
Motor operator H400-H630 100-240VAC
£2,306.73 / piece*
-
HYD024H
Terminal cover H400-H630 4P spreader
£116.91 / piece* -
HYD022HTerminal cover h400-h630 4P long
£117.47 / piece*
-
HXD039H
Padlock h400-h1000
£34.77 / piece*
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
£207.06 / piece* -
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
£195.21 / piece* -
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
£197.02 / piece* -
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
£211.58 / piece* -
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
£204.11 / piece*
-
HXC026HAlarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC021HAuxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
£102.83 / piece* -
HXC025HAuxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC024HAlarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
£122.72 / piece*
-
HXD031HExtended rotary handle H400-H630
£240.30 / piece*
-
HYD019HInterphase barrier (h400-h630-h800-h1000-h1600) 3/4P
£27.92 / piece*
-
HYD012HSpreader H400 4P collar
£199.68 / piece* -
HYD010HExtended connection H400 4P collar
£199.68 / piece* -
HYD008HCollar terminal h400/h630 Al 4P 2x 95-240mm²
£741.06 / piece* -
HYD006HCollar terminal h400/h630 Al 4P 1x 95-240mm²
£484.57 / piece*
-
HXC011HUndervoltage Release 24V DC (h250-h400-h630)
£176.77 / piece* -
HXC014HUndervoltage Release 200-240V AC (h250-h400-h630)
£185.68 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
Technical characteristics
Electric current
-
Rated current400 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor35 - 240 mm²
-
Cross-section flexible conductor35 - 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In20.80 W
-
Total power loss under IN62.40 W
-
Rated operational power under 400 V AC AC1263,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

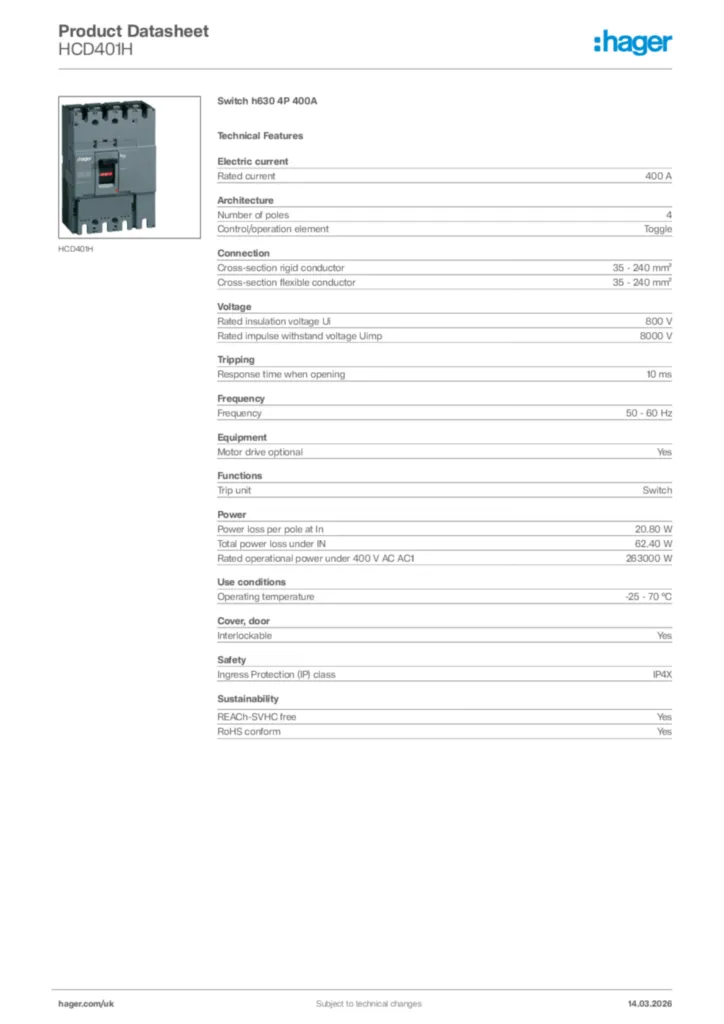

Hager Product data sheet HCD401H
