FWB encl.,univers,7-rows 336 modules cl.II IP44 w.plain door, 1100x1050x161mm,QC FWB74S
EAN-Nr.
3250612736928
Packaging
1 piece
Price
£924.24
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Feed-through terminal block 1 products available -
Labelling material 2 products available -
Components for wiring, cable entry and cable fixing 1 products available
Complete your system
-
UZ005
Identifer stripe, universN, for device slot, 12 pieces
£20.71 / piece* -
UZ006Paper strips, universN, 5 sheets (60strips)
£18.44 / piece*

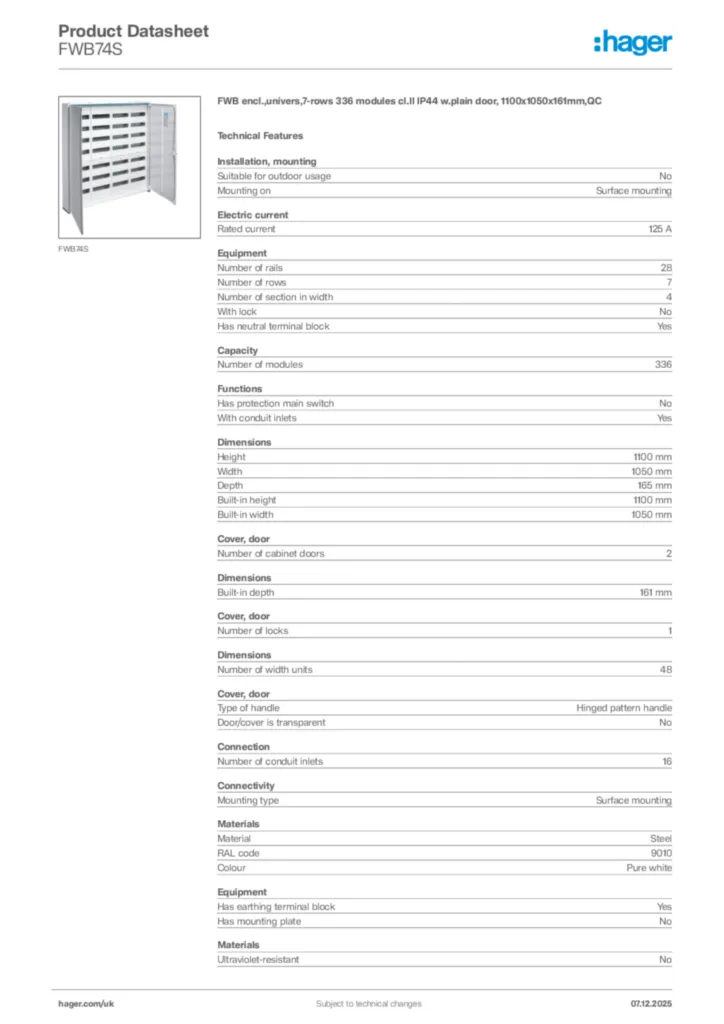

Technical characteristics
Connection
-
Number of conduit inlets16
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current125 A
Equipment
-
Number of rails28
-
Number of rows7
-
Number of section in width4
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules336
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height1,100 mm
-
Width1,050 mm
-
Depth165 mm
-
Built-in depth0.00 mm
-
Number of width units48
Cover, door
-
Number of cabinet doors2
-
Number of locks1
-
Type of handleHinged pattern handle
-
Door/cover is transparentNo
Connectivity
-
Mounting typeSurface mounting
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK09
-
Ingress Protection (IP) classIP44
-
Locking typeBar lock, Without lock
-
Glow wire test750 °C
Environmental value
