    • FW424WT
    EAN-Nr.
    3250614300974
    Packaging
    1 piece

    Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules FW424WT

    Price
    £418.34
    / piece *
    £418.34
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules

    FW424WT

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Complete your system

    Optional accessories

    • Compon­ents for wiring, cable entry and cable fixing 1 products available

    Complete your system

    • Compon­ents for wiring, cable entry and cable fixing
    • FZ24H

      Strain relief and terminal holder, for FW2 enclosure class I FWx24xx, 24 mod wide
      £28.29  / piece*

    Technical characteristics

    Connec­tion
    • Number of conduit inlets
      2
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rows
      4
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Dimen­sions
    • Height
      791 mm
    • Width
      571 mm
    • Depth
      150 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK08
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Key lock, Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    Hager REACH declaration FW424WT
    PDF

    Downloads

    • Product image

      Image FW424WT | Hager

      Product Image FW424WT

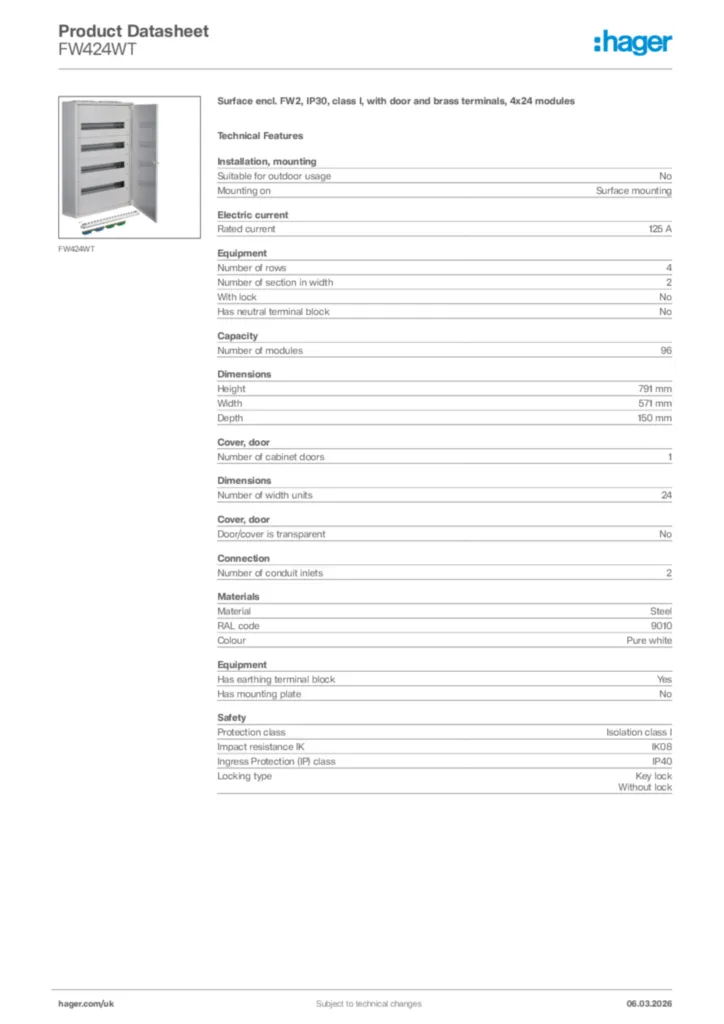

    • Product datasheet

      Image Hager Product data sheet FW424WT | Hager

      Hager Product data sheet FW424WT

      Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules

      PDF

    • Installation manual

      Image Installation manual International 2023-07-05 | Hager

      Installation manual International 2023-07-05

      PDF
      756,29 kB
      Image Installation manual International 2024-07-17 | Hager

      Installation manual International 2024-07-17

      PDF
      4,83 MB

    • BIM Revit objects

      Image Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-GB-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-GB-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,20 MB
      Image Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-GB-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-GB-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,20 MB

    • Handbook

      Image Handbook en-GB 2024-10-10 | Hager

      Handbook en-GB 2024-10-10

      PDF
      1,80 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-30 | Hager

      Declaration of conformity en-GB 2024-08-30

      PDF
      179,29 kB
