EPN540

Latching relay 4NO 230V
EAN
3250612369454
Quantity
1
Trade price*
£80.82 /prt.*
More Information
EAN3250612369454
UnitPCE
Sales status3C
Device familyEP
Rated current16 A
Height of installed product83 mm
Rated operational voltage Ue250 / 400 V
With slide for manual switchYes
Frequency50;60 Hz
Rated insulation voltage400 V
Electrical durability at nominal load in AC21in operating cycles150000
Frequency (range for ETIM)50/60 Hz
Command voltage AC230 V
Total power loss under IN4.8 W
Pulse duration50 ms
Inrush power absorbed55 VA
Winding resistance612 Ω
Rating16 A
DC control voltage110 V
Protection index IPIP20
Storage temperature-40/80 °C
Connection cross-sect. rigid cable1,5 ; 10mm²
Depth of installed product63 mm
Quiescent current6 mA
Number of mechanical operations500000
Operating temperature-5/40 °C
Connection cross-sect. flexible conductor1 ; 6mm²
Quantity of half modules of 17,7mm4
European directive WEEEconcerned
Type of contacts4NO
Width of installed product35 mm
Type of connectionwith screw
Number of modules2
Search wordsRemote switch;Impulse switch;Pulse switch;Impulse switch for installation in luminaires;Mechanical impulse switch;Rail mounted device;Relay;Impulse relay;Impulse switch for installation in luminaires
Type of latching relayelectromechanic
Number of contacts4
Tightening torque1,6Nm
See more features
Documentations

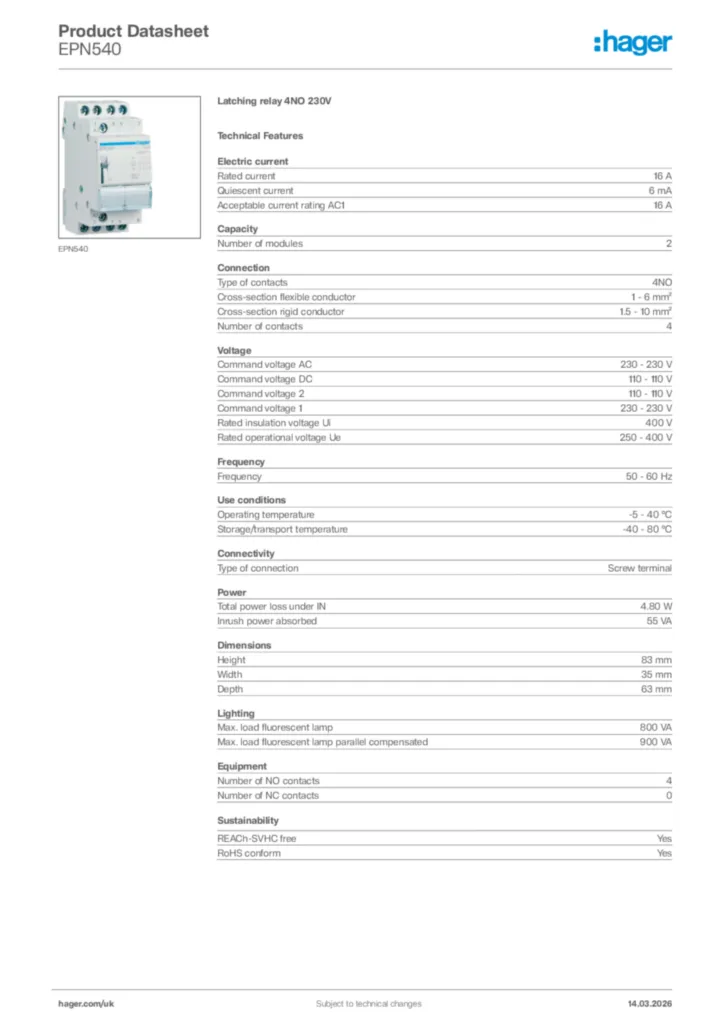

Product data sheets for EPN540 121 kbpdfDownload
