Latching relay 1NC+1NO 24V EPN518
EAN-Nr.
3250612369553
Packaging
1 piece
£73.48
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Main electrical features
-
Rated operational voltage Ue250 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage250 V
Dimensions
-
Depth of installed product63 mm
-
Height of installed product83 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN1.2 W
Endurance
-
Number of mechanical operations500000
Fluorescent bulbs control
-
Max. power with fluorescent parallel lamps900 VA
Incandescent bulbs control
-
Max. power with incandescent lamps1800 W
Installation, mounting
-
Tightening torque1,6Nm
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 10mm²
-
Type of connectionwith screw
-
Number of contacts2
-
Type of contacts1NC+1NO
Standards
-
Standard textIEC/EN 60669-2
Use conditions
-
Operating temperature-5…40 °C
Downloads
-
Product image
-

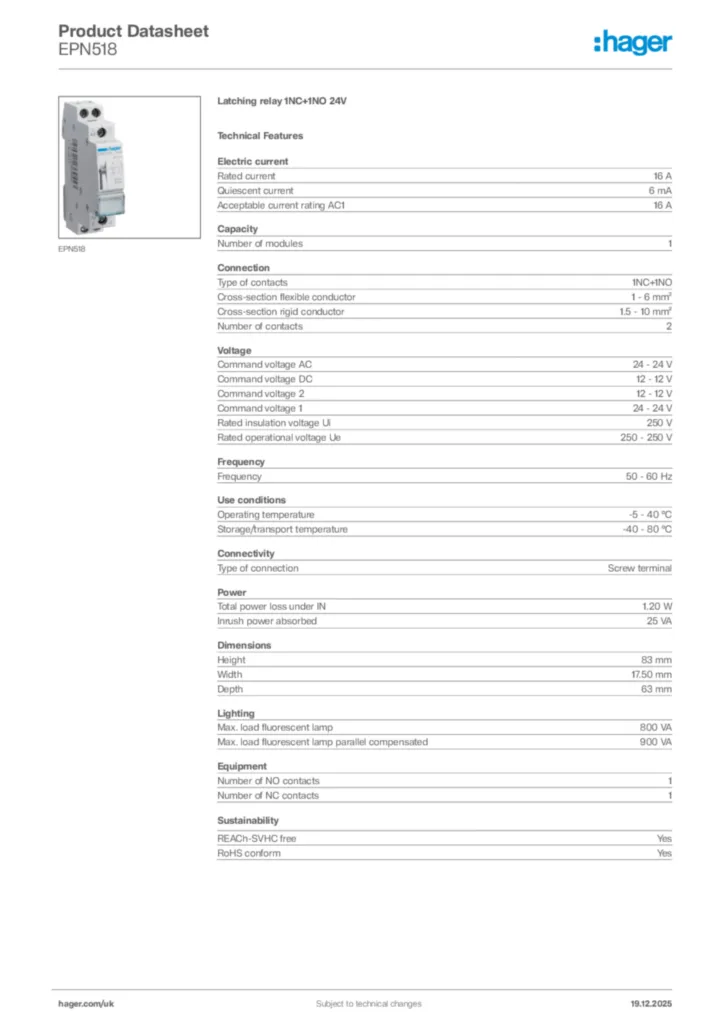

Product data sheet
Product data sheets for EPN518
UK_MD_TDS_LatchingRelays.pdf
PDF121 KB -
Declaration of conformity
EU Declaration of conformity for EPN518
Declaration
PDF262 KB -
PEP document
Product environmental profile for EPN518
PDF433 KB -
RoHS report
Pollutant guidelines for EPN518
REACH-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for EPN518
RoHS-declaration 2023-10-20 (english)
PDF33 KB
More documentation
