EPN513

Latching relay 1NO 24V
EAN
3250612369584
Quantity
1
Trade price*
£55.35 /prt.*
  • Main electrical features
    • Rated operational voltage Ue
      • 250 V
    • Frequency
      • 50/60 Hz
    • Rated current
      • 16 A
  • Voltage
    • Rated insulation voltage
      • 250 V
  • Dimensions
    • Depth of installed product
      • 63 mm
    • Height of installed product
      • 83 mm
    • Width of installed product
      • 17.5 mm
  • Power
    • Total power loss under IN
      • 1.2 W
  • Endurance
    • Number of mechanical operations
      • 500000
  • Capacity
    • Number of modules
      • 1
  • Installation, mounting
    • Tightening torque
      • 1,6Nm
  • Connection
    • Connection cross-sect. flexible conductor
      • 1 / 6mm²
    • Connection cross-sect. rigid cable
      • 1,5 / 10mm²
    • Type of connection
      • with screw
    • Number of contacts
      • 1
    • Type of contacts
      • 1NO
  • Standards
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP20
  • Use conditions
    • Operating temperature
      • -5…40 °C
Documentations

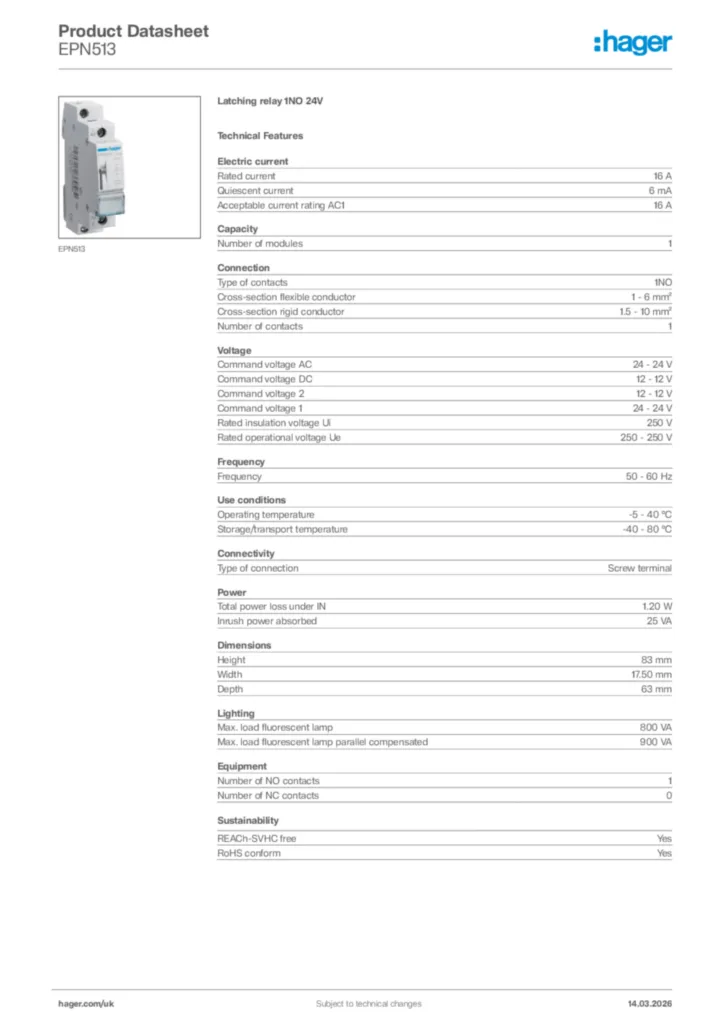

Product data sheets for EPN513 121 KBPDFDownload
