EEN100

Twilight switch 1 channel, 1M, wall mounted cell
EAN
3250617579308
Quantity
1
Trade price*
£293.86 /prt.*
More Information
Supply voltage 230 V
Symbols for applicationsGLUEHLAMPE__APP-SYMBOL.EPS | LEUCHTSTOFFLAMPE__APP-SYMBOL.EPS | HV-HALOGENLAMPE__APP-SYMBOL.EPS
Brightness measuring range5/2000 lx
Acceptable current rating with AC110 A
Power consumed0.331 VA
Delay OFF80 s
Delay ON60 s
Maximum connection distance between receiver and transmitter100m
Electrical durability at nominal load in AC1 in operating cycles50000
Electrical durability with parallel compensated fluorescent tubes4000
Electrical durability with row-compensated fluorescent tubes7500
Electrical endurance cycles with incandescent lighting7500
Frequency50;60 Hz
Frequency50;60 Hz
Height of installed product83 mm
Protection index IPIP20
Width of installed product17.8 mm
Length60 mm
Main design lineHouse electronics
Fixing modeDin-Rail
Number of contacts1
Number of modules1
Operating voltage230 V~ +10%;-15%
Max. power with cos phi 0.610 A
Max. Breaking capacity for parallel compensated fluorescent tubes200 W
Max. Breaking capacity for row-compensated fluorescent tubes1000 W
Max. power with fluo uncompensated lamps1000 VA
Incandescent bulb power2300 W
Brightness measurement range5 / 2000 Lux
Max. power with fluorescent parallel lamps1000 VA
Max. power fluo. duo lamp comp. series1000 W
Max. power with incandescent lamps2300 W
Presence buttonNo
Depth of installed product65 mm
Protection classes/typesIP20__PROTECTION-SYMBOL.EPS
Total power loss under IN0.3 W
Power dissipation per coil0.3 W
230 V incandescent lamps and halogen lamps2300 W
Power consumption (operation)300 mW
Fluorescent lamps duo circuit1000 W
Fluorescent lamps parallel compensated1000 W
Connection cross-sect. rigid cable1,5 ; 6mm²
Connection cross-sect. flexible conductor1,5 ; 6mm²
Storage/transport temperature-25/60 °C
Operating temperature-5/45 °C
Storage temperature-25/70 °C
Breaking capacity10A 250V AC1
Search wordsBrightness measuring device;Surface-mounted sensor;Brightness sensor;Energy-efficient;Lighting suited to requirements;Ideal lighting;Lighting control;Lighting control;
Mounting typedin-Rail
BrightnessOn;off brightness value individually adjustable
Installation modefor mounting on DIN rail ; Extension sensor for wall and ceiling mounting
Potential-freewith potential-free normally-open contact
SettingSwitch-on;switch-off delay continuously adjustable via potentiometer
Type of connectionwith screw terminals
Type of contactscontact floating
Rated operational voltage Ue230 V
Fluorescent lamps uncompensated1000 W
Width of rail mounted device (RMD)1 modules
Non-standardized switching symbolsDAEMMERUNGSSCHALTER__WIRING-SYMBOL.EPS
UnitPCE
EAN3250617579308
Sales status3C
See more features
Documentations
Product environmental profile for EEN100 428 kbpdfDownload
Instruction manuals for EEN100 1411 kbpdfDownload

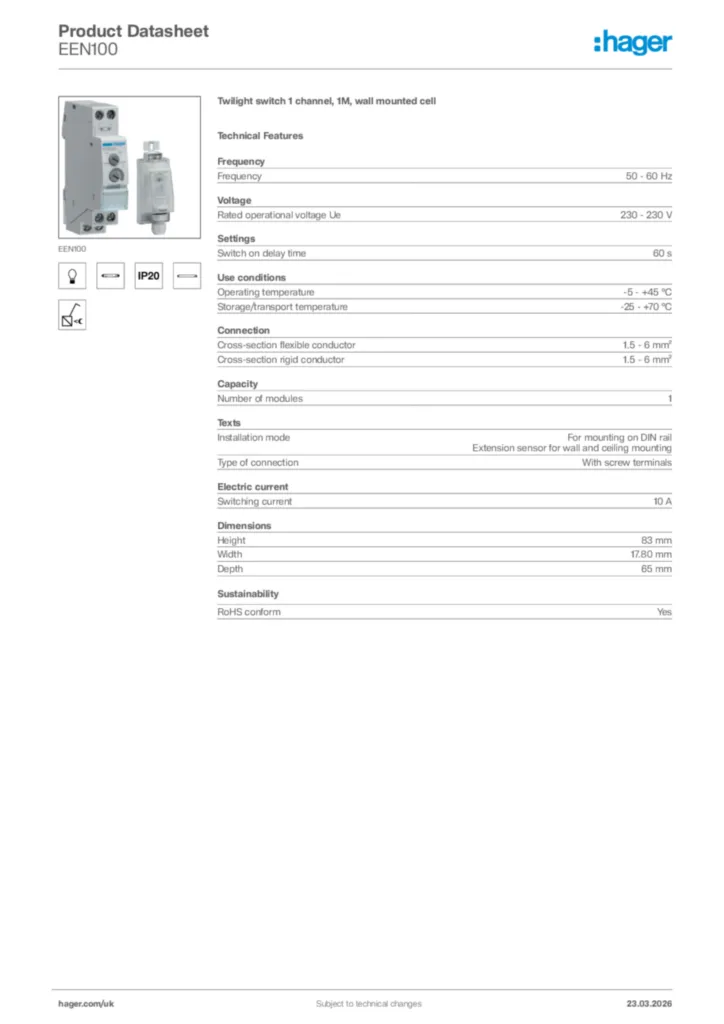

Product data sheets for EEN100 166 kbpdfDownload
