The Hager BGUK 3-phase current transformer with RJ45 output delivers accurate monitoring for metering and protection. Rated 100 A with 330 mV secondary and Class 1 accuracy, it fits busbar or cable installations. Compact (80×76×76 mm) with 15×30 mm window and 25 mm pitch, it features plug-in RJ45 for fast wiring. Ui 3 kV insulation and −25 to +50 °C operation ensure robust, safe performance. Ideal for 50 Hz systems.
EAN
3250617121019
VPE
1 piece
BGUK current transformer 3-Phase 100A/330mV RJ45 Class 1 plug-in, 25 mm pitch EC12100CT
Price
£85.32
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type product3-phase current transformer replacement
Functions
-
Accuracy class1
Dimensions
-
Height80 mm
-
Width76 mm
-
Depth76 mm
-
Height of opening15 mm
-
Width of opening30 mm
Connectivity
-
Type of connectionPlug-in connection, Busbar
Frequency
-
Frequency47 - 63 Hz
Voltage
-
Rated power-frequency withstand voltage (r.m.s.)3,000 V
-
Max. operating voltage720 V
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 85 °C
Safety
-
Ingress Protection (IP) classIP20
Electric current
-
Rated primary current (Ipr)100 A
-
Rated continuous thermal current1,2*In
-
Rated short-time thermal current (Ith/1s)60*Ipr
-
Rated dynamic current2.5*Ith
-
Over voltage limiting factorFS 5
Installation, mounting
-
Mounting onDIN rail, Busbar, Cable
Architecture
-
Number of poles3
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

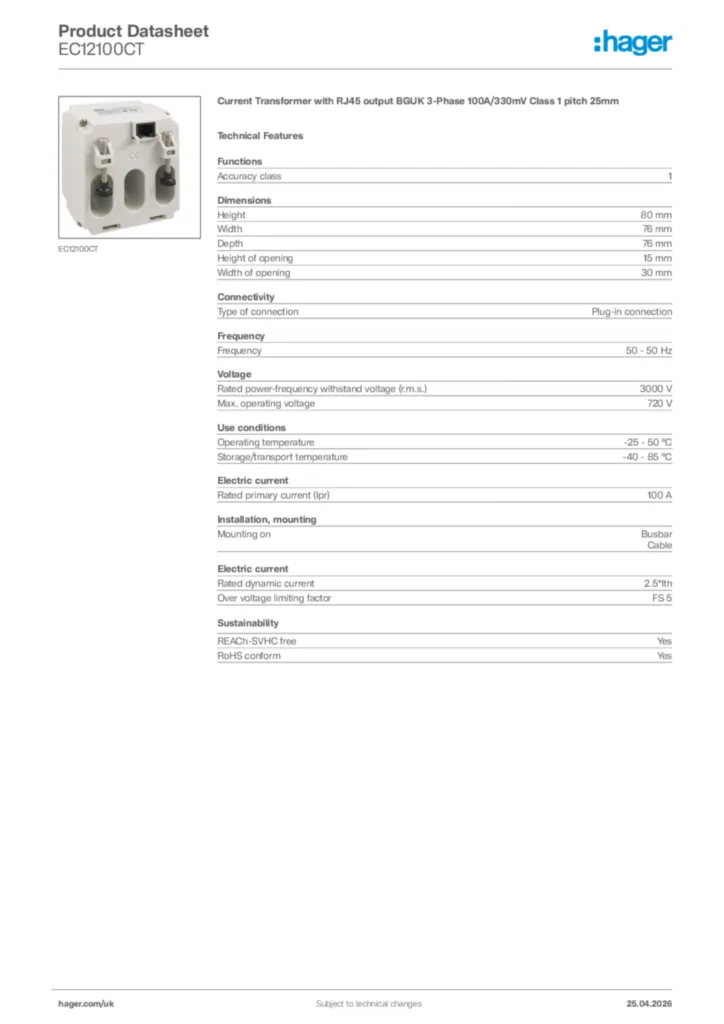

Hager Product data sheet EC12100CT
