The Hager MCB 4P 25kA B-20A 4M is a four-pole 20A B-curve breaker for three-phase + neutral protection against overloads and short circuits. With 25kA Icu (230/400V), 10kA Icn and 6kV impulse withstand, it suits commercial/industrial panels. Compact 4M, 415V AC, IP20. Screw/biconnect terminals accept 1-35 mm² for fast, secure wiring. Rated −25 to 70°C, 4,000 electrical/20,000 mechanical ops.
EAN
3250614645921
Packaging
1 Piece
Miniature Circuit Breaker 3P 63A Curve B 15kA 3 Modules NQN420
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Modular phase busbar 1 products available -
Terminal cover 1 products available -
AOB type A-HI 4 products available -
AOB type AC 8 products available -
AOB type AC/A-SEL 1 products available
Complete your system
-
BDH825
Earth leakage add-on-block with double output 4P 25A 30mA A high immunity class
-
BFH825
Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class
-
BFH863
Earth leakage add-on-block with double output 4P 63A 300mA high immunity class
-
BFH840
Earth leakage add-on-block with double output 4P 40A 300mA A high immunity class
-
BE464
Earth leakage add-on block 4P 63A 100mA AC Class
-
BG464Earth leakage add-on block 4P 63A 500mA AC Class
-
BFC825Earth leakage add-on-block with double output 4P 25A 300mA AC class
-
BFC840Earth leakage add-on-block with double output 4P 40A 300mA AC class
-
BFC863Earth leakage add-on-block with double output 4P 63A 300mA AC class
-
BDC825Earth leakage add-on-block with double output 4P 25A 30mA AC class
-
BD426Earth leakage add-on block 4P 25A 30mA AC Class
-
BF426Earth leakage add-on block 4P 25A 300mA AC Class

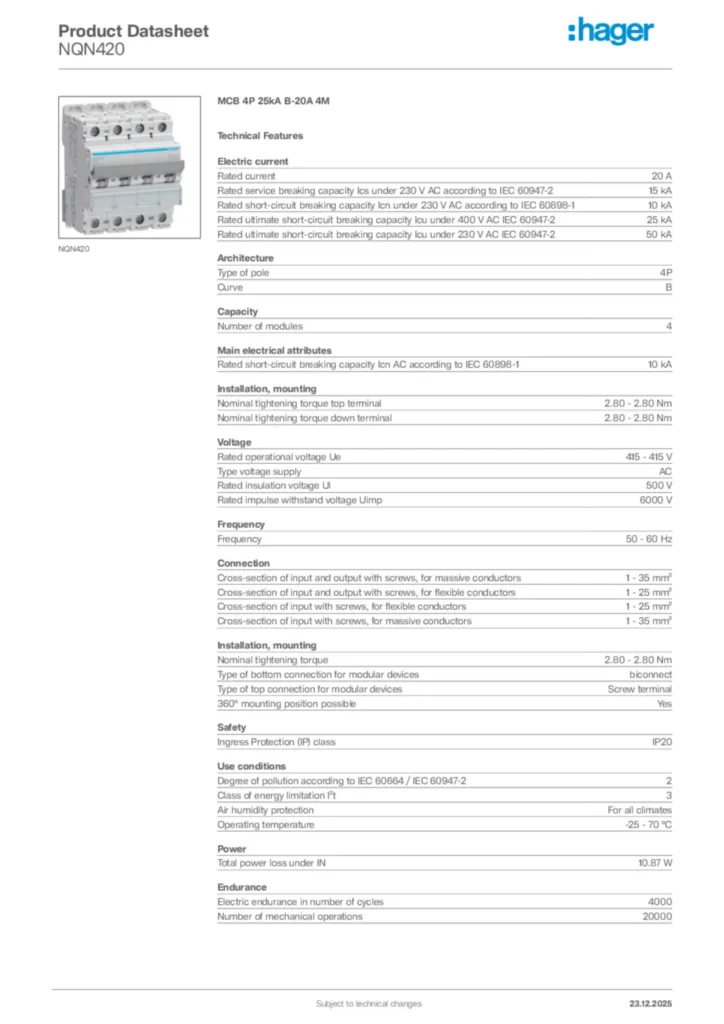

Technical properties
Electric current
-
Rated current20 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
Architecture
-
Type of pole4P
-
CurveB
Capacity
-
Number of modules4
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN10.87 W
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth70 mm
