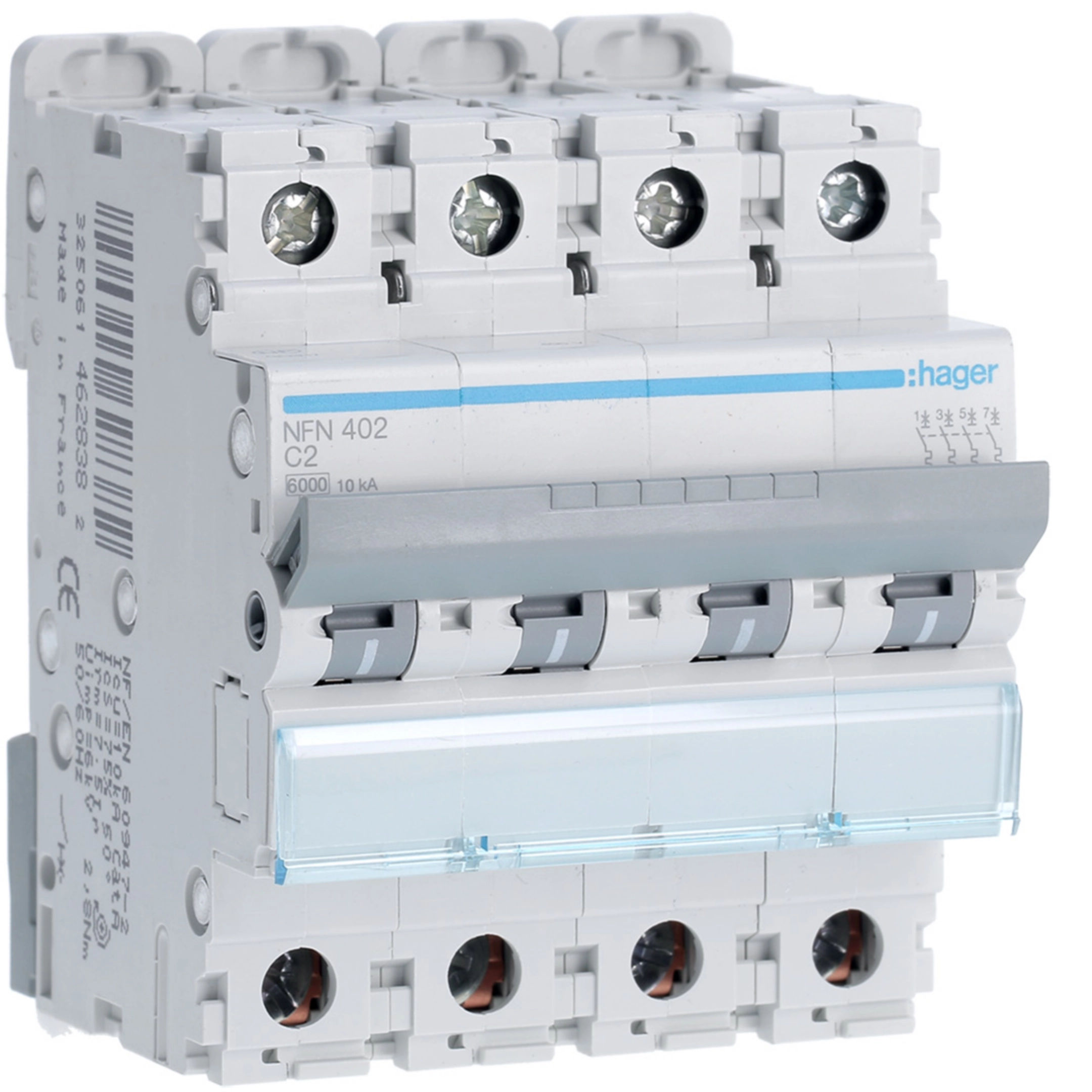

The Hager MCB 4P C-curve 2A 4-module safeguards three-phase + neutral circuits against overloads and short circuits. Rated 400 V AC, it provides 6/10 kA per IEC 60898-1, with Icu 20 kA (230 V)/10 kA (400 V) and Ics 15 kA. Screw terminals and biconnect bottom accept 1-35 mm². IP20, 50-60 Hz, 6 kV impulse, -25…70 °C. Ideal for precise protection of low-current control and auxiliary loads in panels.

EAN

3250614628382

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

Miniature Circuit Breaker 2P 10A C-curve 6/10kA 400V 2M NFN402

Accessories
Technical properties
Environmental value
Documentations
More products

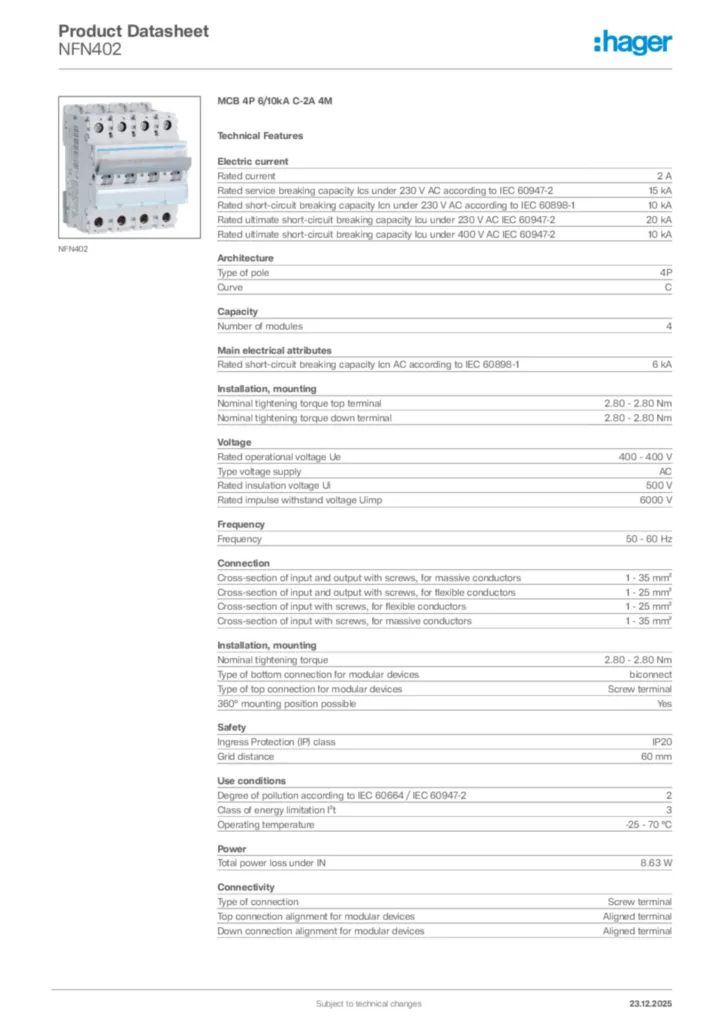

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 2 products available
AOB type AC 6 products available
AOB type AC/A-SEL 1 products available

Technical properties

Rated current

2 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

10 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

10 kA
Rated current -15°C

2.50 A
Rated current -10°C

2.45 A
Rated current -5°C

2.39 A
Rated current at 0°C

2.34 A
Rated current 5°C

2.29 A
Rated current 10°C

2.23 A
Rated current 15°C

2.18 A
Rated current at 20°C

2.12 A
Rated current 25°C

2.06 A
Rated current 30°C

2 A
Rated current 35°C

1.93 A
Rated current at 40°C

1.85 A
Rated current at 45°C

1.77 A
Rated current at 50°C

1.69 A
Rated current 55°C

1.61 A
Rated current 60°C

1.51 A
Rated current 65°C

1.42 A
Rated current 70°C

1.31 A
Rated service breaking capacity Ics AC according to IEC 60947-2

75 %
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Type of pole

4P
Curve

C

Number of modules

4

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

8.63 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

70 mm
Depth

70 mm
