Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class BFH825
EAN
3250611310105
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 71 products available
Referenced by
-
NCN420AMCB 4P 10kA/15kA C-20A 4M
-
NF410AMCB 4P 6/10kA C-10A 4M
-
NQN420MCB 4P 25kA B-20A 4M
-
NCN404AMCB 4P 10kA/15kA C-4A 4M
-
NCN402AMCB 4P 10kA/15kA C-2A 4M
-
NBN410AMCB 4P 10kA/15kA B-10A 4M
-
NBN406AMCB 4P 10kA/15kA B-6A 4M
-
NGN416MCB 4P 6/10kA D-16A 4M
-
NDN416AMCB 4P 10kA/15kA D-16A 4M
-
NGN420MCB 4P 6/10kA D-20A 4M
-
NCN406AMCB 4P 10kA/15kA C-6A 4M
-
NCN410AMCB 4P 10kA/15kA C-10A 4M
-
NFN406MCB 4P 6/10kA C-6A 4M
-
NBN425AMCB 4P 10kA/15kA B-25A 4M
-
NBN420AMCB 4P 10kA/15kA B-20A 4M
-
NBN416AMCB 4P 10kA/15kA B-16A 4M
-
NFN402MCB 4P 6/10kA C-2A 4M
-
NDN425AMCB 4P 10kA/15kA D-25A 4M
-
NDN420A
MCB 4P 10kA/15kA D-20A 4M
-
NDN410A
MCB 4P 10kA/15kA D-10A 4M
Technical properties
Electric current
-
Rated current25 A
-
Rated residual operating current Idn300 mA
Architecture
-
Number of poles4
Safety
-
Residual current typeA HI
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN1.7 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations6000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height102 mm
-
Width52.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

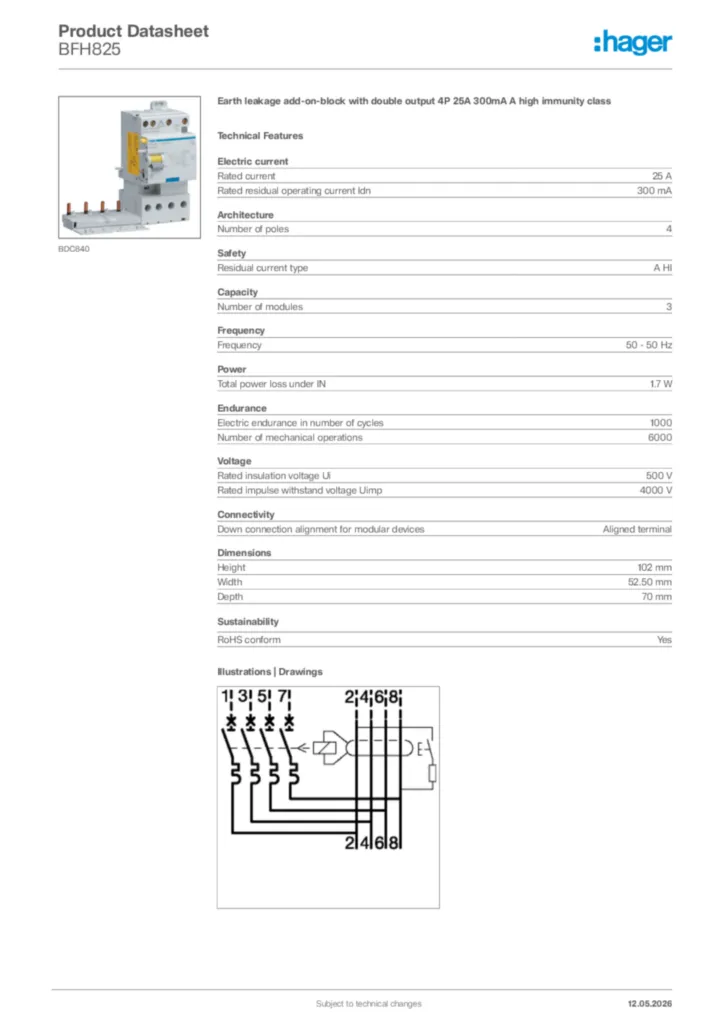

Product datasheet
undefined
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2018-12-06
PDF79,82 kB
More documentation
