Earth leakage add-on block 3P 63A 300mA A high immunity Class BF363
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 26 products available
Referenced by
-
NCN350AMCB 3P 10kA/15kA C-50A 3M
-
NF350AMCB 3P 6/10kA C-50A 3M
-
MMN304Magnetic MCB 3P 25kA 4A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN300Magnetic MCB 3P 25kA 0.63A 400V Zubehörmöglich. Anzeige IEC 947-2
-
NRN350MCB 3P 15kA C-50A 3M
-
NF363AMCB 3P 6/10kA C-63A 3M
-
NFN350MCB 3P 6/10kA C-50A 3M
-
NFN363MCB 3P 6/10kA C-63A 3M
-
NDN350AMCB 3P 10kA/15kA D-50A 3M
-
NBN350AMCB 3P 10kA/15kA B-50A 3M
-
NBN363AMCB 3P 10kA/15kA B-63A 3M
-
NDN363AMCB 3P 10kA/15kA D-63A 3M
-
NEN363MCB 3P 6/10kA B-63A 3M
-
NCN363AMCB 3P 10kA/15kA C-63A 3M
-
NGN363MCB 3P 6/10kA D-63A 3M
-
MMN325Magnetic MCB 3P 25kA 25A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN316Magnetic MCB 3P 25kA 16A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN313Magnetic MCB 3P 25kA 12A 400V Zubehörmöglich. Anzeige IEC 947-2
-
NQN350MCB 3P 15kA B-50A 3M
-
MMN320Magnetic MCB 3P 25kA 20A 400V Zubehörmöglich. Anzeige IEC 947-2
Technical properties
Electric current
-
Rated current63 A
-
Rated residual operating current Idn300 mA
Architecture
-
Number of poles3
Safety
-
Residual current typeA HI
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN9.7 W
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations1000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

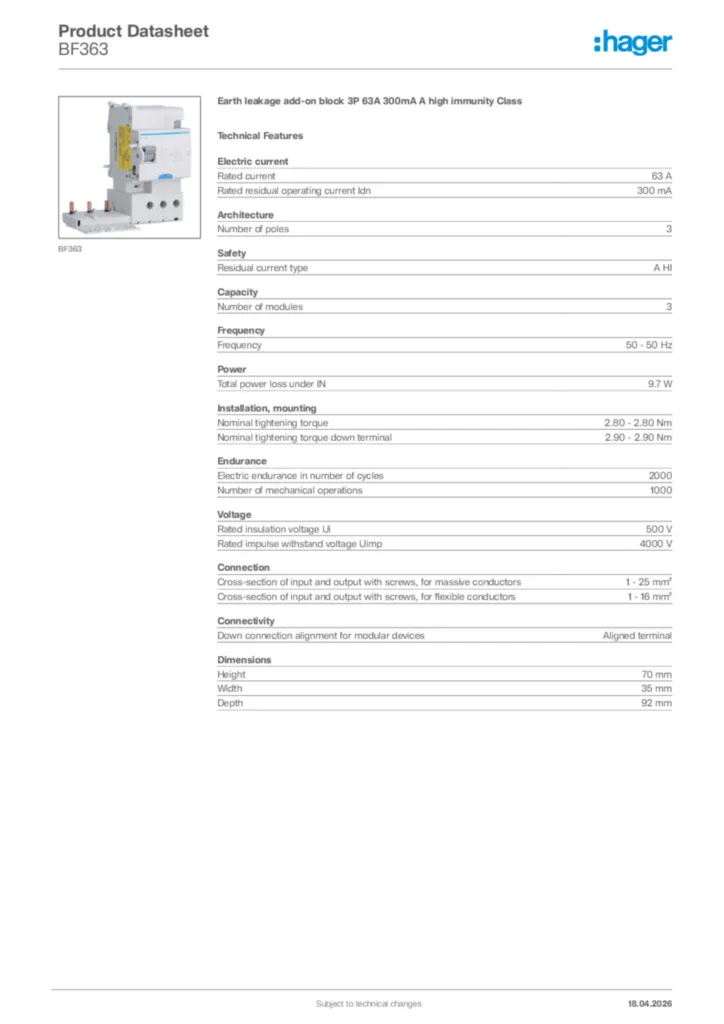

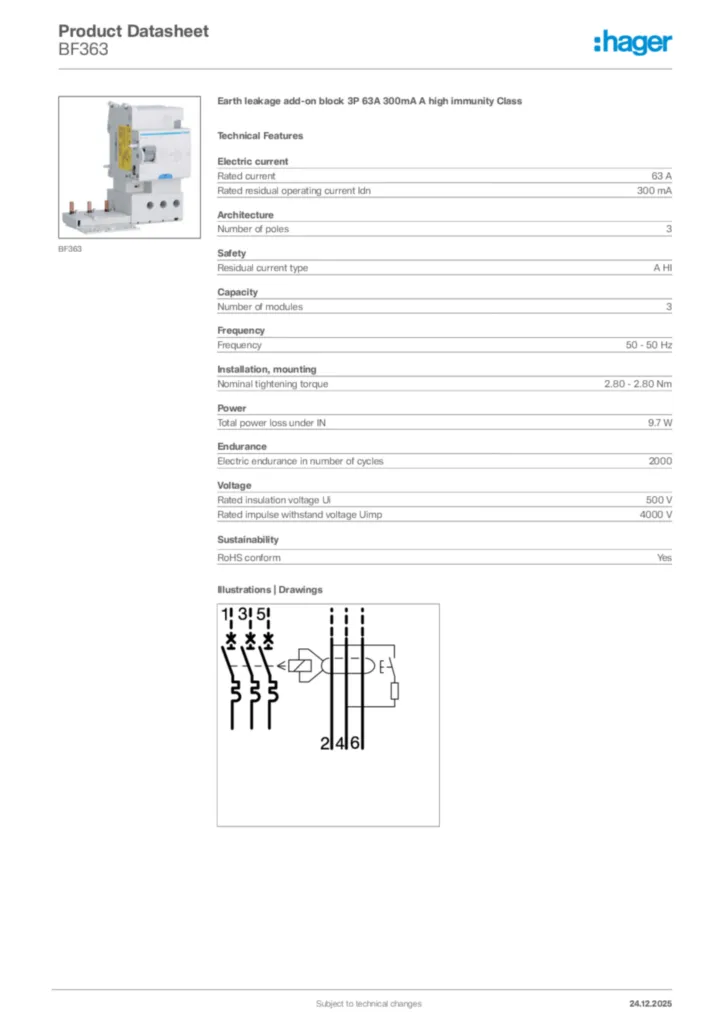

Hager Product data sheet BF363
