The Hager MCB 2P 6/10kA C-16A 2M protects circuits from overloads and short circuits with two-pole isolation. Rated 16A, C curve for mixed loads, 6/10kA (IEC 60898-1) with Ics 15kA and Icu up to 20kA (IEC 60947-2). For 230/400V AC, 50-60Hz. Compact 2 modules (35mm), screw/biconnect terminals for 1-35mm², 6kV impulse, IP20, −25 to 70°C. Ideal for residential and light commercial panels.

EAN

3250614628146

VPE

6 pieces

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 20A Curve C 15kA Icu 400V 2 Modules NFN216

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2
Documentations
More products

product.page.accessories.title

Modular phase busbar 1 product.page.accessories.products-available
Terminal cover 1 product.page.accessories.products-available
AOB type A-HI 3 product.page.accessories.products-available
AOB type AC 5 product.page.accessories.products-available
Protective cap/strip for phase busbar 1 product.page.accessories.products-available

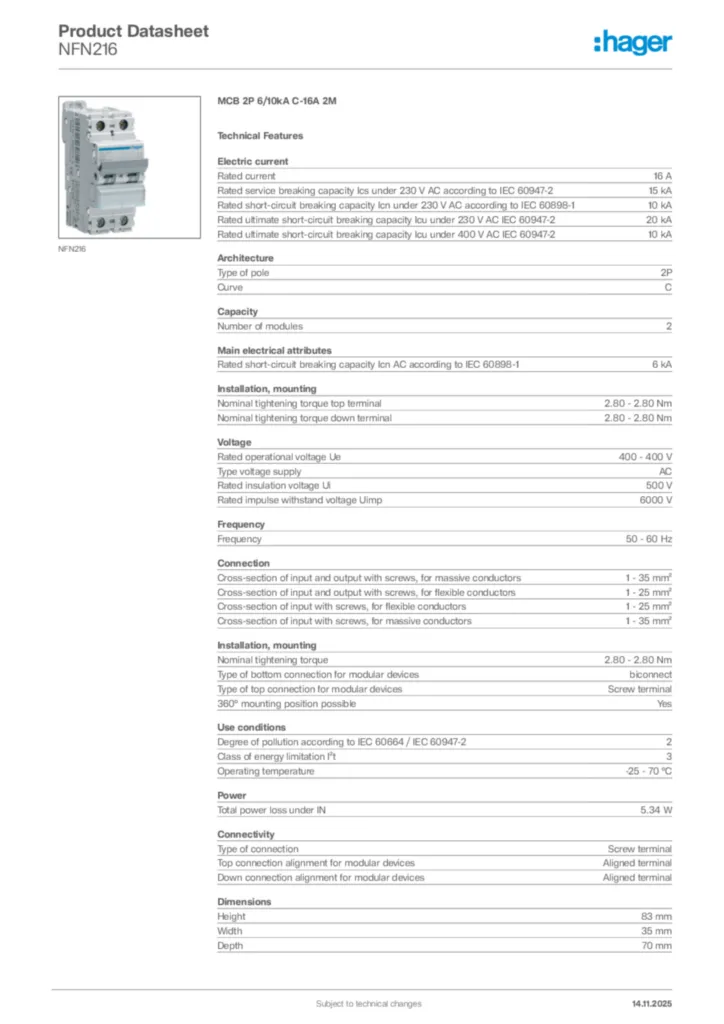

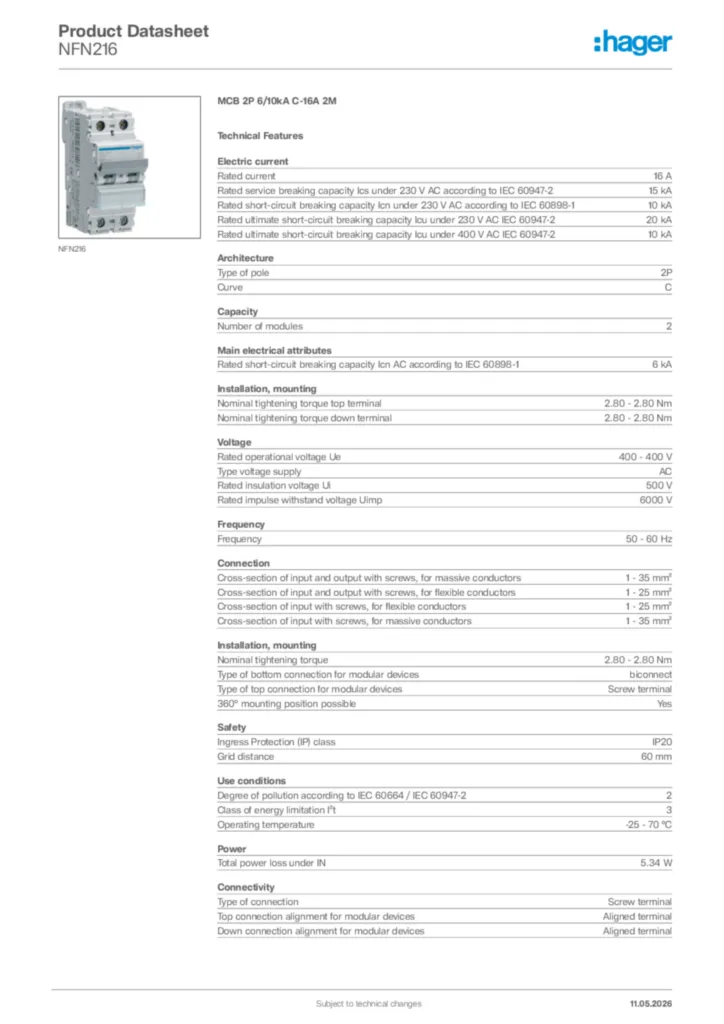

Technical characteristics

Rated current IN

16 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

10 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

10 kA
Rated current at -15°C

19.79 A
Rated current at -10°C

19.37 A
Rated current at -5°C

18.95 A
Rated current at 0°C

18.53 A
Rated current at 5°C

18.11 A
Rated current at 10°C

17.69 A
Rated current at 15°C

17.26 A
Rated current at 20°C

16.84 A
Rated current at 25°C

16.42 A
Rated current at 30°C

16 A
Rated current at 35°C

15.51 A
Rated current at 40°C

15.01 A
Rated current at 45°C

14.52 A
Rated current at 50°C

14.02 A
Rated current at 55°C

13.53 A
Rated current at 60°C

13.03 A
Rated current at 65°C

12.54 A
Rated current at 70°C

12.04 A
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

6 kA
Rated service breaking capacity Ics AC according to IEC 60947-2

75 %
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

20 kA

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Power dissipation at IN

5.34 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Width

35 mm
Height

83 mm
Depth

70 mm

Electric endurance in number of cycles

4000
