The Hager Earth leakage add-on block 2P 63A 300mA AC Class provides residual current protection when coupled with a compatible 2P breaker. Rated 63A, 300 mA AC type for fire protection, it suits 230-400 V systems at 50 Hz. Two modules with left neutral, Ui 500 V and 4 kV impulse withstand. Ideal for residential and commercial boards, enhancing safety against earth faults.
EAN
3250611362647
VPE
1 piece
Earth leakage add-on block 3P 63A 300mA AC 230-400V 3 Modules BF264
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Neutral positionLeft
-
Number of poles2
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current IN63 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

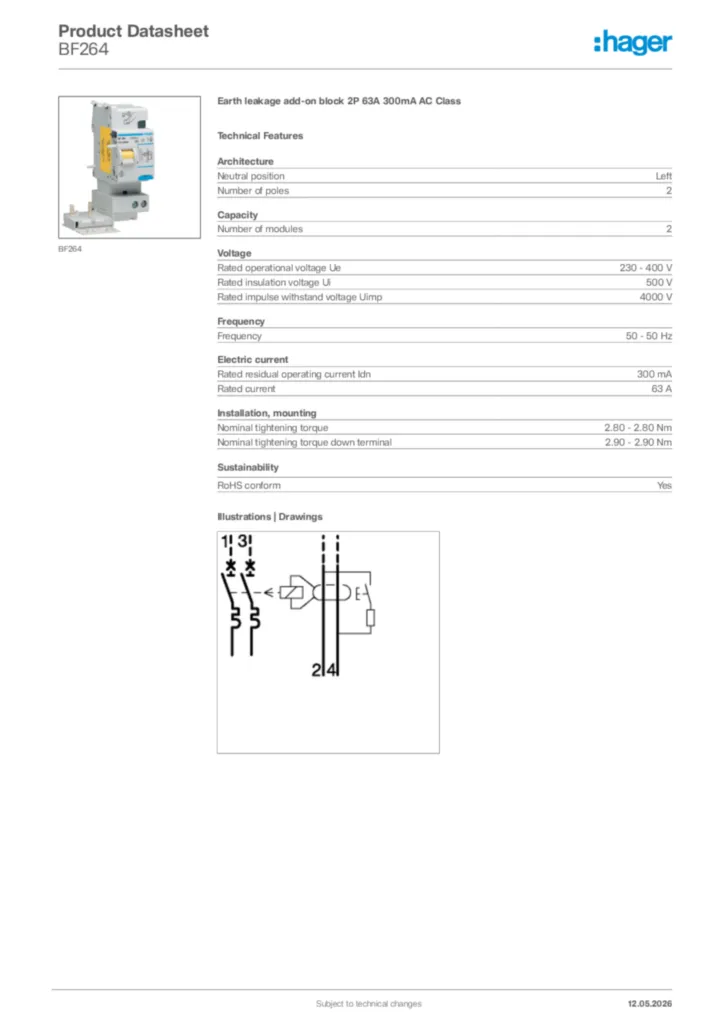

Hager Product data sheet BF264
Earth leakage add-on block 2P 63A 300mA AC Class
PDF -
ProductInstallationManual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
Declaration of conformity en-US 2026-07-14
PDF443,02 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
