    • Home
    • Catalog
    • Distri­bu­tion systems
    • Terminal Connec­­tions & Busbar
    • Busbar
    • KDN263B
    EAN
    3250613740955
    Packaging
    20
    • Busbar

    Insulated busbar 2P 63A fork 10mm² 57M KDN263B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 2P 63A fork 10mm² 57M

    KDN263B

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Protective cap/strip for phase busbar 1 products available

    Compatible products

    • Referenced by 81 products available

    Complete your system

    • Protective cap/strip for phase busbar
    • KZN023

      Endcap for busbars KDN 2 poles and 3 poles
      0.00 €  / *

    Referenced by

    • NDN240A

      MCB 2P 10kA/15kA D-40A 2M
      0.00 €  / *
    • NGN210

      MCB 2P 6/10kA D-10A 2M
      0.00 €  / *
    • NDN225A

      MCB 2P 10kA/15kA D-25A 2M
      0.00 €  / *
    • NCN216A

      MCB 2P 10kA/15kA C-16A 2M
      0.00 €  / *
    • NFN240

      MCB 2P 6/10kA C-40A 2M
      0.00 €  / *
    • NRN232

      MCB 2P 20kA C-32A 2M
      0.00 €  / *
    • NGN250

      MCB 2P 6/10kA D-50A 2M
      0.00 €  / *
    • NDN263A

      MCB 2P 10kA/15kA D-63A 2M
      0.00 €  / *
    • NDN206A

      MCB 2P 10kA/15kA D-6A 2M
      0.00 €  / *
    • NCN206A

      MCB 2P 10kA/15kA C-6A 2M
      0.00 €  / *
    • NGN225

      MCB 2P 6/10kA D-25A 2M
      0.00 €  / *
    • NCN204A

      MCB 2P 10kA/15kA C-4A 2M
      0.00 €  / *
    • NCN240A

      MCB 2P 10kA/15kA C-40A 2M
      0.00 €  / *
    • NDN232A

      MCB 2P 10kA/15kA D-32A 2M
      0.00 €  / *
    • NBN225A

      MCB 2P 10kA/15kA B-25A 2M
      0.00 €  / *
    • NCN232A

      MCB 2P 10kA/15kA C-32A 2M
      0.00 €  / *
    • NCN263A

      MCB 2P 10kA/15kA C-63A 2M
      0.00 €  / *
    • NDN220A

      MCB 2P 10kA/15kA D-20A 2M
      0.00 €  / *
    • NFN202

      MCB 2P 6/10kA C-2A 2M
      0.00 €  / *
    • NBN250A

      MCB 2P 10kA/15kA B-50A 2M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      63 A
    Archi­tec­ture
    • Number of poles
      2
    • Type of pole
      2P
    Dimen­sions
    • Length
      1000 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4500 V
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      10 mm²
    • Connect­or/plug type
      Phase busbar with fork
    Capa­city
    • Number of modules
      56

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Insulated busbar 3P 63A fork 10mm² 12M (English)
    PDF
    470,84 kB
    REACH declaration KDN263B
    PDF
    RoHS report KDN263B
    PDF

    Downloads

    • Image KDN263B | Hager Africa

      Product Image KDN263B

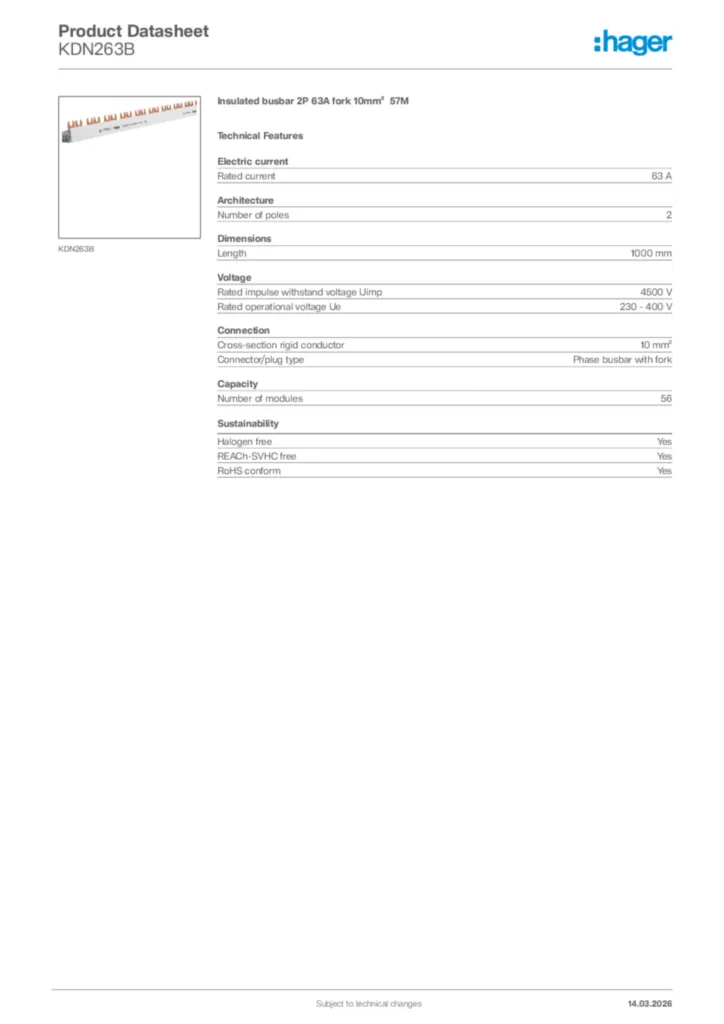

    • Product datasheet

      Image Hager Product data sheet KDN263B | Hager Africa

      Hager Product data sheet KDN263B

      Insulated busbar 2P 63A fork 10mm² 57M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager Africa

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager Africa

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
