The Hager MCB 2P 20kA C-32A 2M protects circuits against overloads and short circuits. With 32A C-curve and 20kA Icu at 230/400 V (Ics 7.5 kA, Icn 10 kA), it suits high fault level commercial/industrial installations. Compact 2-module width, 415 V AC rating, Ui 500 V, Uimp 6 kV. Screw/biconnect terminals for 1-35 mm² conductors. IP20, -25 to 70°C, endurance 4k electrical/20k mechanical cycles.

EAN

3250614645044

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 3P 16A Curve C 25kA Icu 415V AC 3 Modules NRN232

Accessories
Technical properties
Environmental value
Documentations
More products

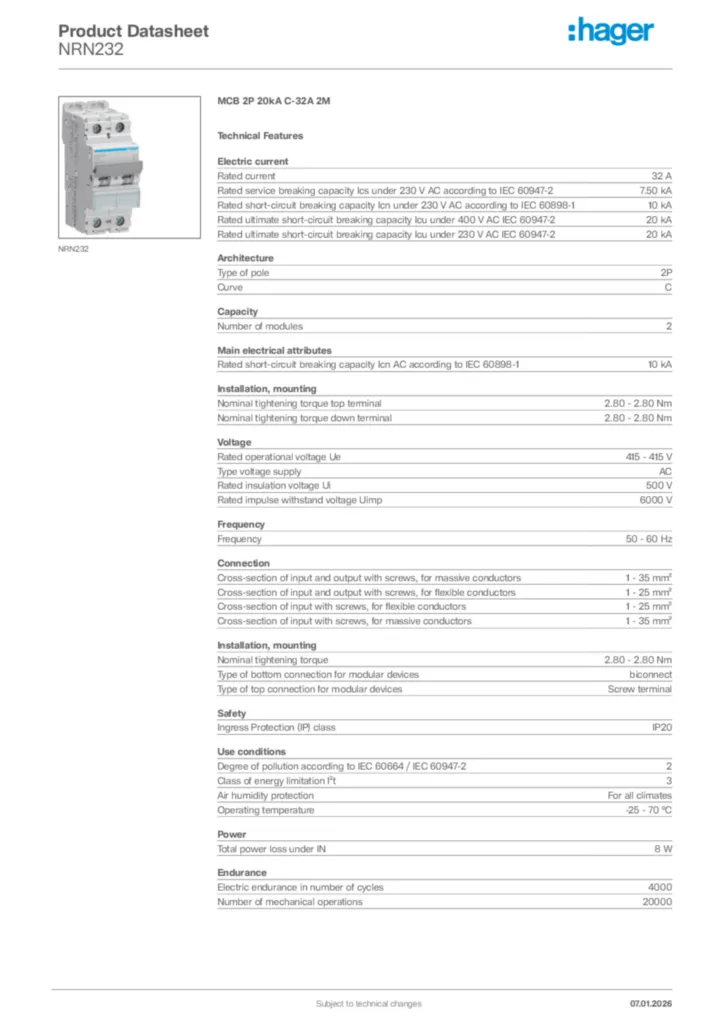

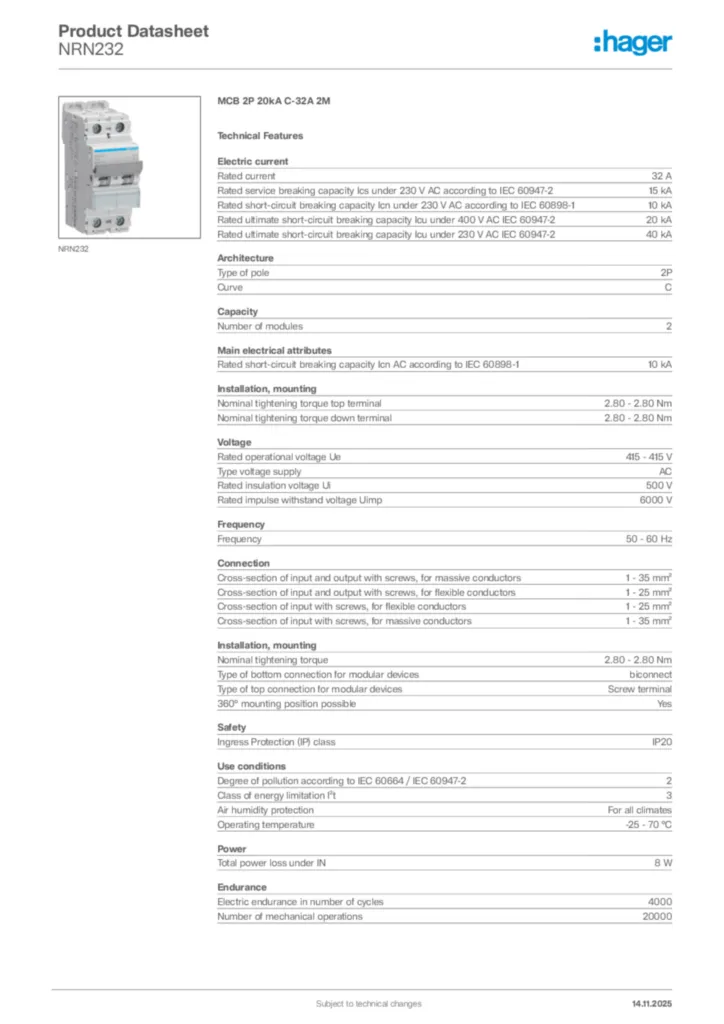

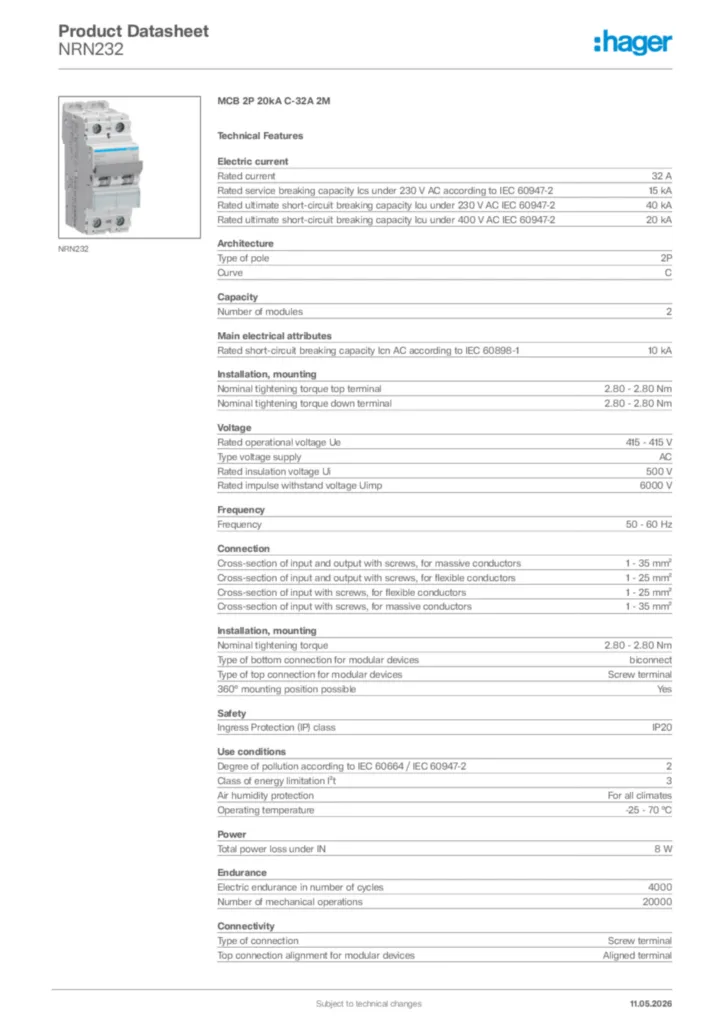

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type AC 5 products available
AOB type A-HI 1 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current

32 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

20 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

20 kA

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

8 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm
