The Hager Earth leakage add-on block 2P 63A 100mA AC Class adds residual current protection to compatible MCBs. With 63A rating and 100 mA Idn, it detects AC earth faults to reduce fire risk and provide upstream protection. Suitable for 230-400 V, 50 Hz systems (Ui 500 V, Uimp 4 kV). Two-pole with left neutral, it’s space-saving and enables secure, quick wiring. Ideal for residential and commercial boards.
EAN
3250611352648
VPE
1 piece
Earth leakage add-on block 3P 40A 300mA Type AC 230-400V 3 modules BE264
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Neutral positionLeft
-
Number of poles2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn100 mA
-
Rated current IN63 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

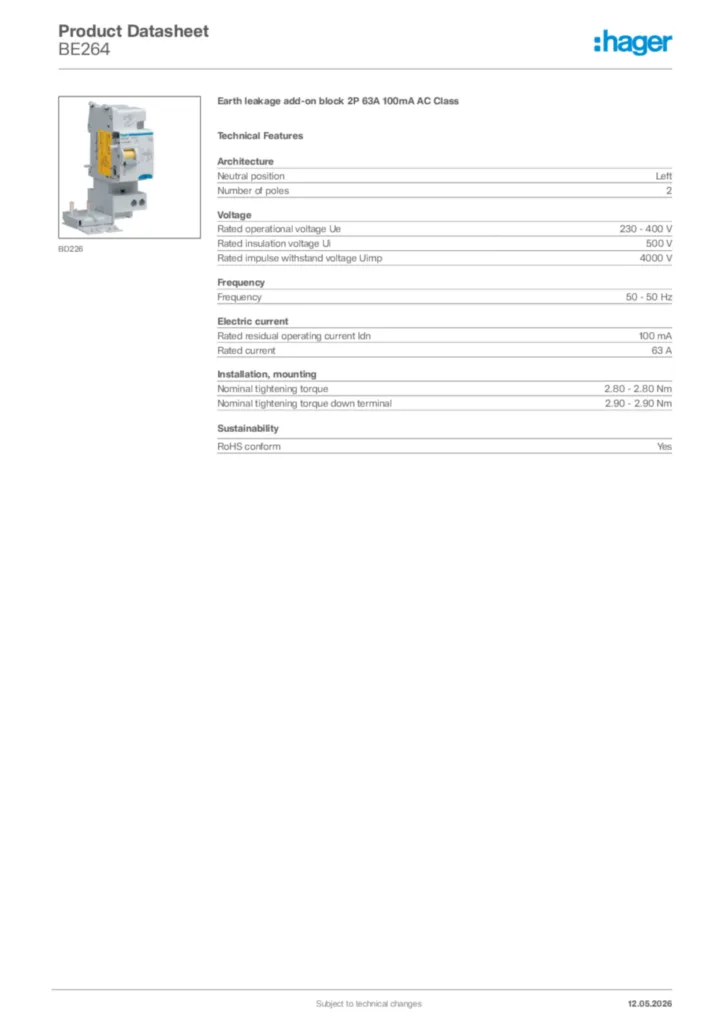

Hager Product data sheet BE264
Earth leakage add-on block 2P 63A 100mA AC Class
PDF -
ProductInstallationManual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
Declaration of conformity en-US 2026-07-14
PDF443,02 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
