The Hager MCB 2P D-32A, 2 modules, protects circuits with high inrush currents (motors, transformers). Rated 32 A, 400 V AC, with 10 kA Icn (IEC 60898-1) and 15 kA Icu (IEC 60947-2) for strong breaking capacity. Offers Ui 500 V, 6 kV impulse withstand, IP20, 50-60 Hz, and 360° mounting. Bi-connect/screw terminals accept 1-35 mm² conductors. Endurance: 4,000 electrical/20,000 mechanical operations.

EAN

3250614619120

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 1P 40A Curve D 10kA/15kA 230-400V AC 1 Module NDN232A

Accessories
Technical properties
Environmental value
Documentations
More products

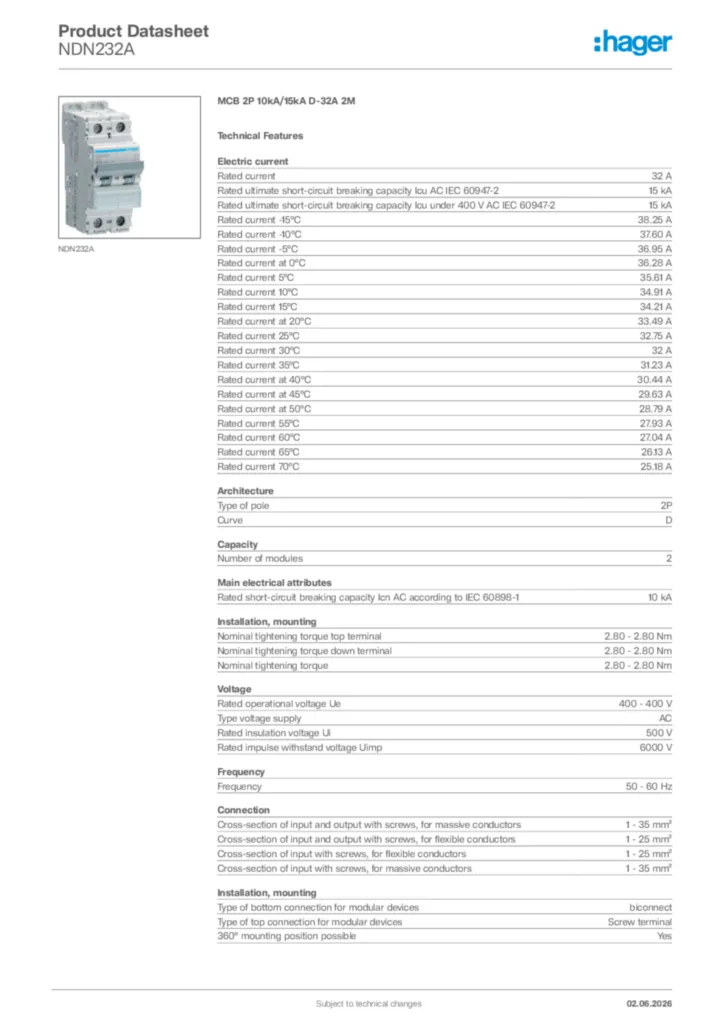

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type AC 3 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current IN

32 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

20 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current at -15°C

38.3 A
Rated current at -10°C

37.6 A
Rated current at -5°C

36.9 A
Rated current at 0°C

36.2 A
Rated current at 5°C

35.5 A
Rated current at 10°C

34.8 A
Rated current at 15°C

34.1 A
Rated current at 20°C

33.4 A
Rated current at 25°C

32.7 A
Rated current at 30°C

32 A
Rated current at 35°C

31.2 A
Rated current at 40°C

30.4 A
Rated current at 45°C

29.59 A
Rated current at 50°C

28.79 A
Rated current at 55°C

27.99 A
Rated current at 60°C

27.19 A
Rated current at 65°C

26.38 A
Rated current at 70°C

25.58 A
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

10 kA
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA

Type of pole

2P
Curve

D

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Power dissipation at IN

8 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Width

35 mm
Height

83 mm
Depth

70 mm

Electric endurance in number of cycles

4000

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
