Insulated busbars for Quick Connect System KBS763
EAN
3250613720681
Packaging
4
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 1 products available
Technical properties
Electric current
-
Rated current63 A
Architecture
-
Number of poles2
Dimensions
-
Length228 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules13
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

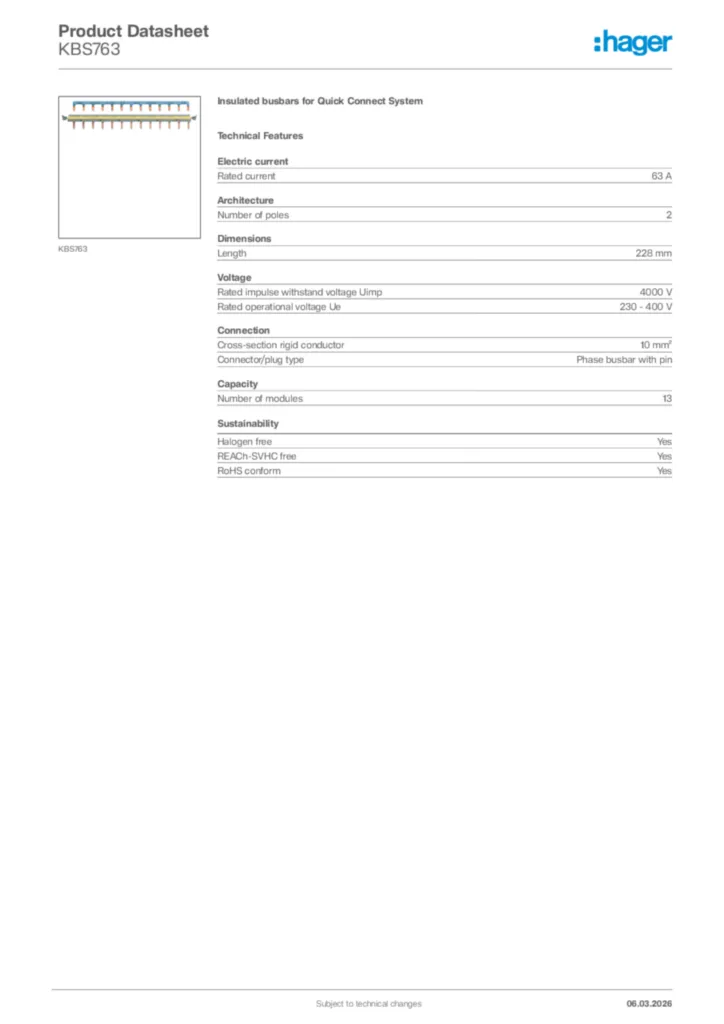

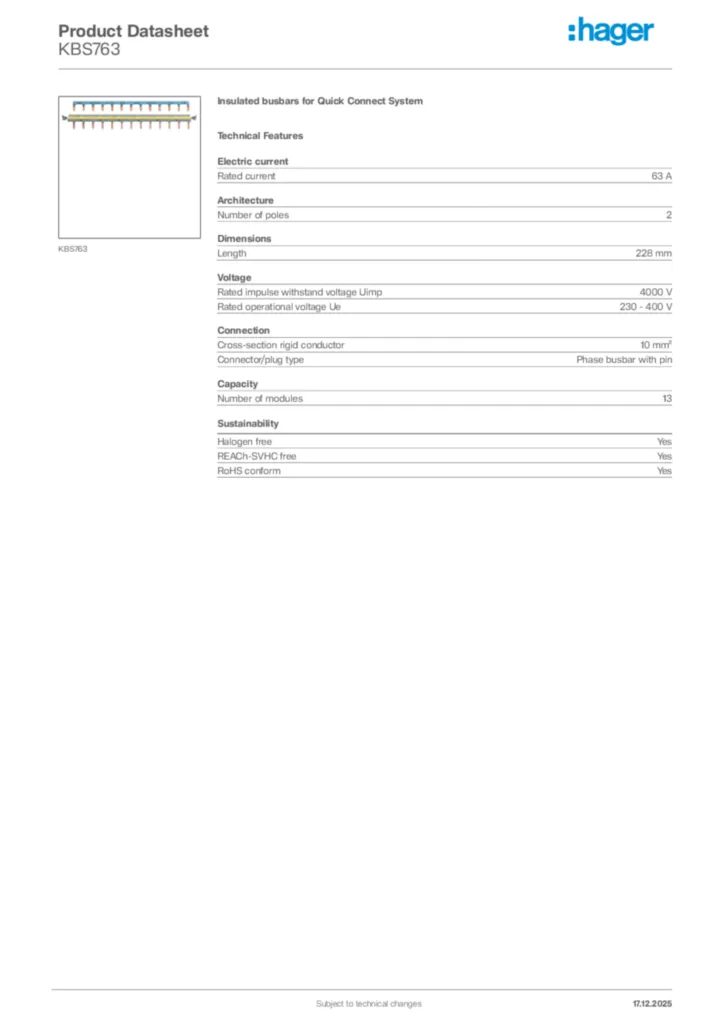

Product datasheet
Hager Product data sheet KBS763
Insulated busbars for Quick Connect System
PDF -

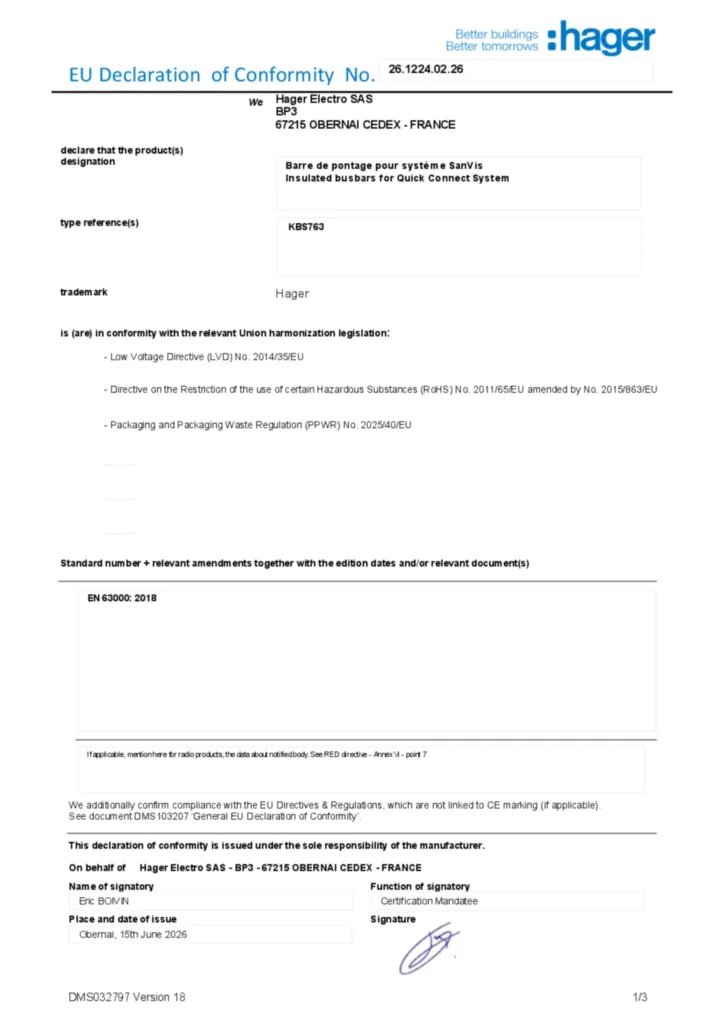

Declaration of conformity
Declaration
Declaration of conformity International 2019-05-28
PDF82,52 kB
