The Hager insulated 3P 63A prong busbar (10 mm², 57 modules) streamlines three-phase distribution and row feeding of MCBs. Rated 63 A at 230-400 V with 4 kV impulse withstand for robust performance. Its 1000 mm length serves up to 57 modules, using 10 mm² rigid conductors. Pin-type phase links enable fast, secure, and tidy wiring for residential and commercial panels.

EAN

3250613720148

Packaging

Busbar

RCCB 3P+N 63A 300mA Type A S Selective 6kA 230/400V KB363B

Technical properties
Environmental value
Documentations
More products

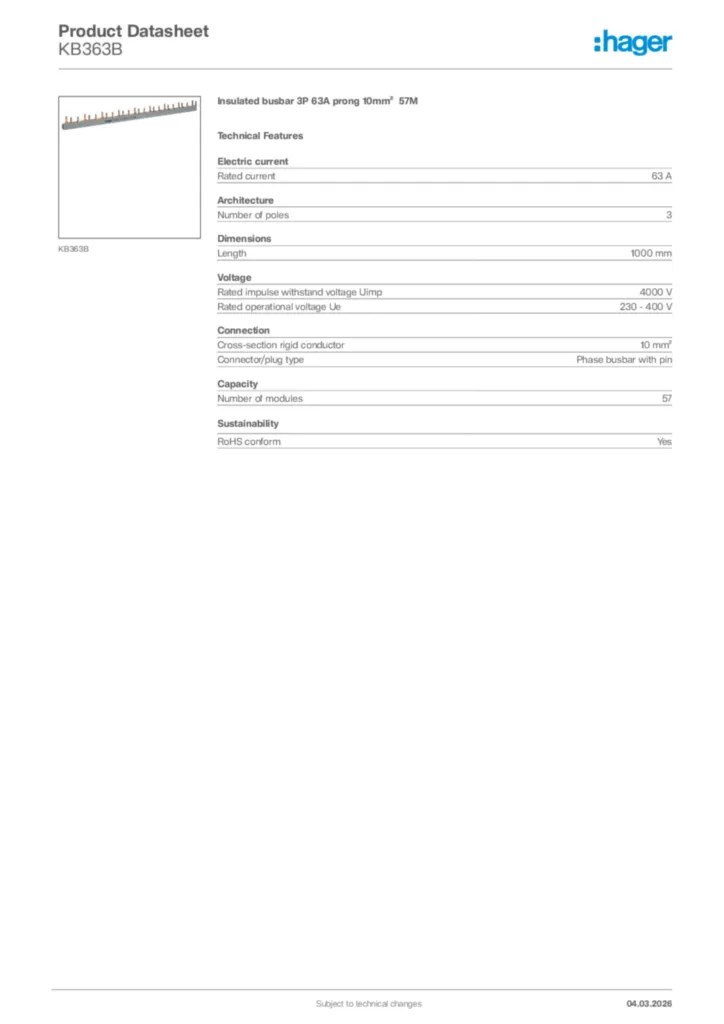

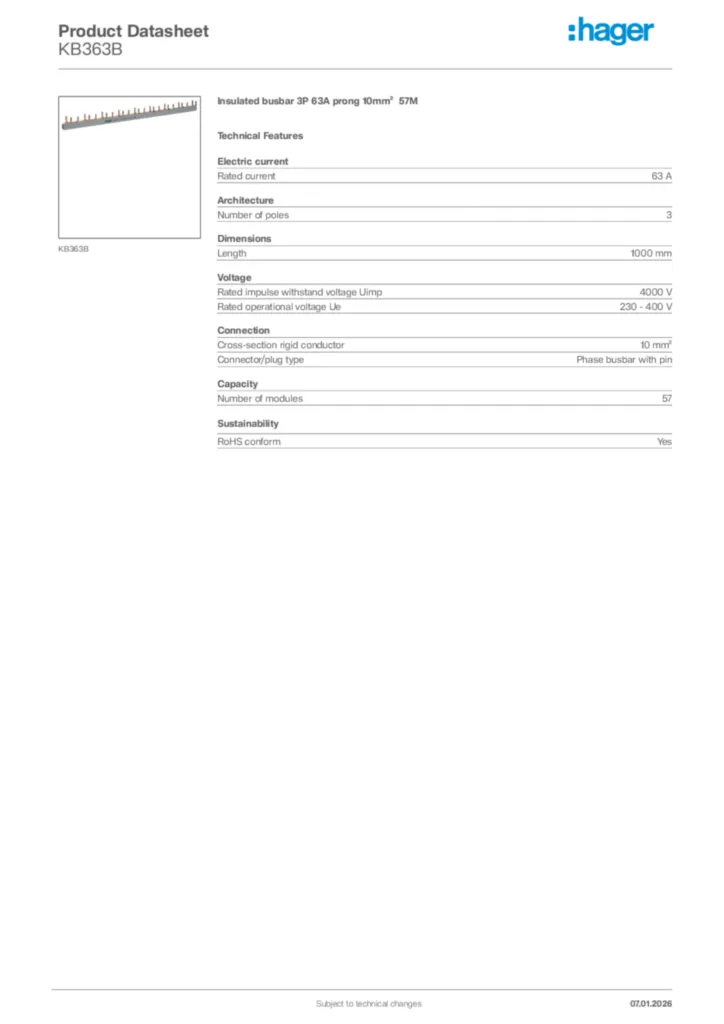

Download the data sheet

Technical properties

Rated current

63 A

Number of poles

3
Type of pole

3P

Length

1000 mm

Rated impulse withstand voltage Uimp

4000 V
Rated operational voltage Ue

230 - 400 V

Cross-section rigid conductor

10 mm²
Connector/plug type

Phase busbar with pin

Number of modules

57

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
