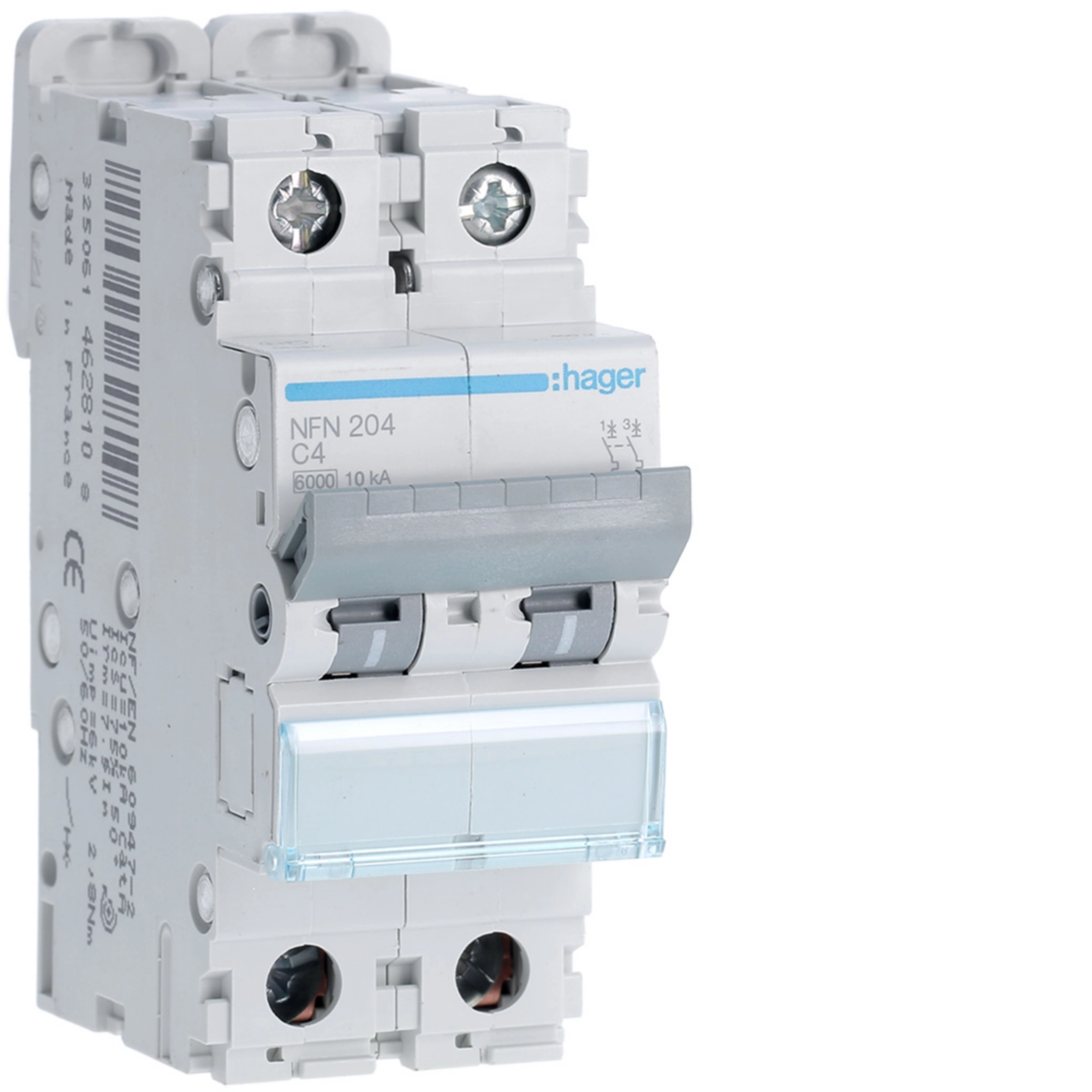

The Hager MCB 2P 6/10kA C-4A 2M miniature circuit breaker provides two-pole protection against overloads and short circuits. Rated 4A, C-curve for moderate inrush loads, 400V AC, 50/60Hz. Breaking capacity 6/10kA (Icn), Ics 15kA, Icu up to 20kA. Compact 2 modules, IP20. Screw/biconnect terminals (1-35 mm²) and 360° mounting ease installation in residential and light commercial boards.
EAN
3250614628108
VPE
1 piece
Miniature Circuit Breaker 4P 50A Curve C 6/10kA 4 Modules NFN204
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Modular phase busbar 1 product.page.accessories.products-available -
Terminal cover 1 product.page.accessories.products-available -
AOB type A-HI 3 product.page.accessories.products-available -
AOB type AC 5 product.page.accessories.products-available -
Protective cap/strip for phase busbar 1 product.page.accessories.products-available
product.page.accessories.title-modal

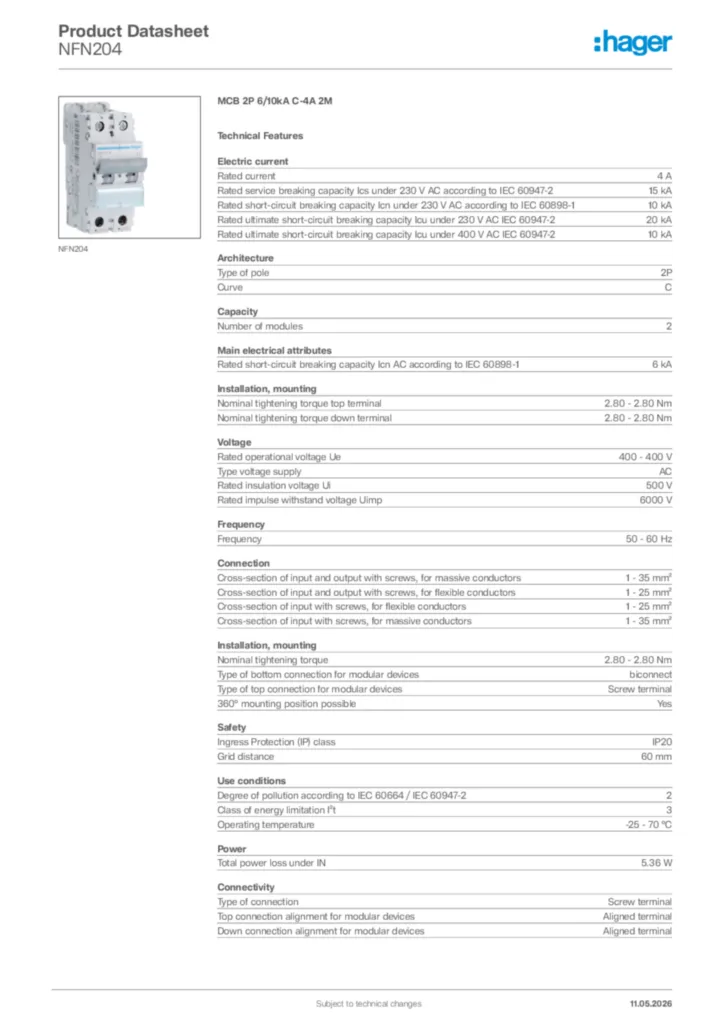

Technical characteristics
Electric current
-
Rated current IN4 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-210 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-210 kA
-
Rated current at -15°C5 A
-
Rated current at -10°C4.89 A
-
Rated current at -5°C4.78 A
-
Rated current at 0°C4.67 A
-
Rated current at 5°C4.56 A
-
Rated current at 10°C4.45 A
-
Rated current at 15°C4.33 A
-
Rated current at 20°C4.22 A
-
Rated current at 25°C4.11 A
-
Rated current at 30°C4 A
-
Rated current at 35°C3.87 A
-
Rated current at 40°C3.74 A
-
Rated current at 45°C3.6 A
-
Rated current at 50°C3.47 A
-
Rated current at 55°C3.34 A
-
Rated current at 60°C3.21 A
-
Rated current at 65°C3.07 A
-
Rated current at 70°C2.94 A
-
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-16 kA
-
Rated service breaking capacity Ics AC according to IEC 60947-275 %
-
Rated service breaking capacity Ics AC according to IEC 60898-16 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-220 kA
Architecture
-
Type of pole2P
-
CurveC
Capacity
-
Number of modules2
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
-
Grid distance60 mm
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
Power
-
Power dissipation at IN5.36 W
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Width35 mm
-
Height83 mm
-
Depth70 mm
Endurance
-
Electric endurance in number of cycles4000
