The Hager h3+ P630 Energy 4P4D MCCB provides reliable circuit protection up to 630A for LV distribution. With Icu 70kA at 400/415V (100kA at 240V) and Ue 220-690V, it handles high fault levels. The ENERGY trip unit offers adjustable long-time, short-time (1.5-10x, 50-400 ms) and instantaneous (3-11x) settings, plus 0/50/100% neutral on a 4-pole left-neutral frame. Fixed mount, IP4X, Cu/Al compatible—ideal for industrial/commercial boards.
EAN
3250613197421
VPE
1 piece
Moulded Case Circuit Breaker 3P3D 400A 70kA Energy trip h3+ P630 Fixed HEW631NR
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Motor operator 12 product.page.accessories.products-available -
Under voltage coil 8 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Operating shaft for power breaker 3 product.page.accessories.products-available -
Mechanic accessories for low-voltage components 3 product.page.accessories.products-available -
DC power supply 1 product.page.accessories.products-available
product.page.accessories.title-modal
-
HXW046HK
Motor Operator x630/P630 100-120VDC without Auto-Reset + key
-
HXW046HMotor Operator x630/P630 100-120VDC without Auto-Reset
-
HXW044HKMotor Operator x630/P630 100-240VAC without Auto-Reset + key
-
HXW044HMotor Operator x630/P630 100-240VAC without Auto-Reset
-
HXW043HKMotor Operator x630/P630 24-48VDC without Auto-Reset + key
-
HXW043HMotor Operator x630/P630 24-48VDC without Auto-Reset
-
HXW042HKMotor Operator x630/P630 100-240VAC with Auto-Reset + key
-
HXW042HMotor Operator x630/P630 100-240VAC with Auto-Reset
-
HXW041HKMotor Operator x630/P630 100-120VDC with Auto-Reset + key
-
HXW041HMotor Operator x630/P630 100-120VDC with Auto-Reset
-
HXW040HKMotor Operator x630/P630 24-48VDC with Auto-Reset + key
-
HXW040HMotor Operator x630/P630 24-48VDC with Auto-Reset
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HYW328HL connection terminal Plug-in (x630/P630) 1P
-
HYW015HSpread terminal extension x630/P630 4P (up to 630A)
-
HYW013HStraight terminal extension x630/P630 4P (up to 630A)
-
HYW008HCage terminal x630/P630 Cu/Al 4P 2x 35-300mm²
-
HYW002HCage terminal x630/P630 Cu/Al 4P 1x 35-300mm²
-
HYD034HRear connection h/x/P 4P 630A
-
HXS122HAX/AL Energy - low level 125VAC 30VDC
-
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
-
HXS120HAX/AL ON/OFF & counting ON/OFF at Energy MCCB
-
HYC250HPM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
-
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA039HPadlock (x160-P160-x250-P250-x630)
-
HXW890HKey lock kit for Draw-out kit for x630/P630
-
HXW888HKey lock kit for Rotary handle x630/P630
-
HXS999HRonis keylock (P160-P250-x630-P630)
-
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
-
HXW166HLink interlock kit x630/P630 - 4P
-
HXW066HMechanical interlock front cover x630/P630
-
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
-
HTC370HCIP - Adaptor for h3+ length 10 m
-
HTC360HCIP - Adaptor for h3+ length 5 m
-
HTC350HCIP - Adaptor for h3+ length 3 m
-
HTC340HCIP - Adaptor for h3+ length 1, 5 m
-
HTC330HCIP - Adaptor for h3+ length 0, 5 m
-
HTC150HZSI - Adaptor for h3+ length 1, 20 m
-
HTC140HCIP - 24 V Adaptor length 1, 20 m
-
HTC130HOAC/PTA adaptor for h3+ length 1, 20 m
-
HTG484HRJ45-RJ45 Modbus cable length 5 m
-
HTG482HRJ45-RJ45 Modbus cable length 2 m
-
HTG481HRJ45-RJ45 Modbus cable length 1 m
-
HTG480HRJ45-RJ45 Modbus cable length 20 cm
-
HTG474HRJ45-RJ45 with earth Modbus cable length 5 m
-
HTG472HRJ45-RJ45 with earth Modbus cable length 2 m
-
HTG471HRJ45-RJ45 with earth Modbus cable length 1 m
-
HYW053HEarth plate for Spread terminal extension P630 4P
-
HYW051HEarth plate for Straight terminal extension P630 4P
-
HYW026HTerminal cover for Rear & Plug-in connection x630/P630 4P
-
HYW024HTerminal cover for Spread terminal extension x630/P630 4P
-
HYW022HTerminal cover for Straight terminal extension x630/P630 4P
Technical characteristics
Electric current
-
Rated current IN630 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-212 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-212 kA
-
Rated current at 10°C according to IEC 60947630 A
-
Rated current at 15°C according to IEC 60947630 A
-
Rated current at 20°C according to IEC 60947630 A
-
Rated current at 25°C according to IEC 60947630 A
-
Rated current at 30°C according to IEC 60947630 A
-
Rated current at 35°C according to IEC 60947630 A
-
Rated current at 40°C according to IEC 60947630 A
-
Rated current at 45°C according to IEC 60947630 A
-
Rated current at 50°C according to IEC 60947630 A
-
Rated current at 55°C according to IEC 60947630 A
-
Rated current at 60°C according to IEC 60947623 A
-
Rated current at 65°C according to IEC 60947560 A
-
Rated current at 70°C according to IEC 60947497 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Power dissipation at IN119 W
Installation, mounting
-
Nominal tightening torque18 - 18 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBYes
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Data act compliance
-
Is generating dataYes
-
Data typesAlarms, Basic information, Electrical measurement, Detailed electrical measurement, General diagnostics, Network diagnostics, Operational state, Software diagnostics
-
Data formatsMODBUS (RTU)
-
Estimated daily data volume< 1 KB
-
Real time data generationYes
-
Data stored on deviceYes
Dimensions
-
Height260 mm
-
Width185 mm
-
Depth150 mm
Settings
-
Adjustment range short-term delayed short-circuit release341.25 - 6300.0 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

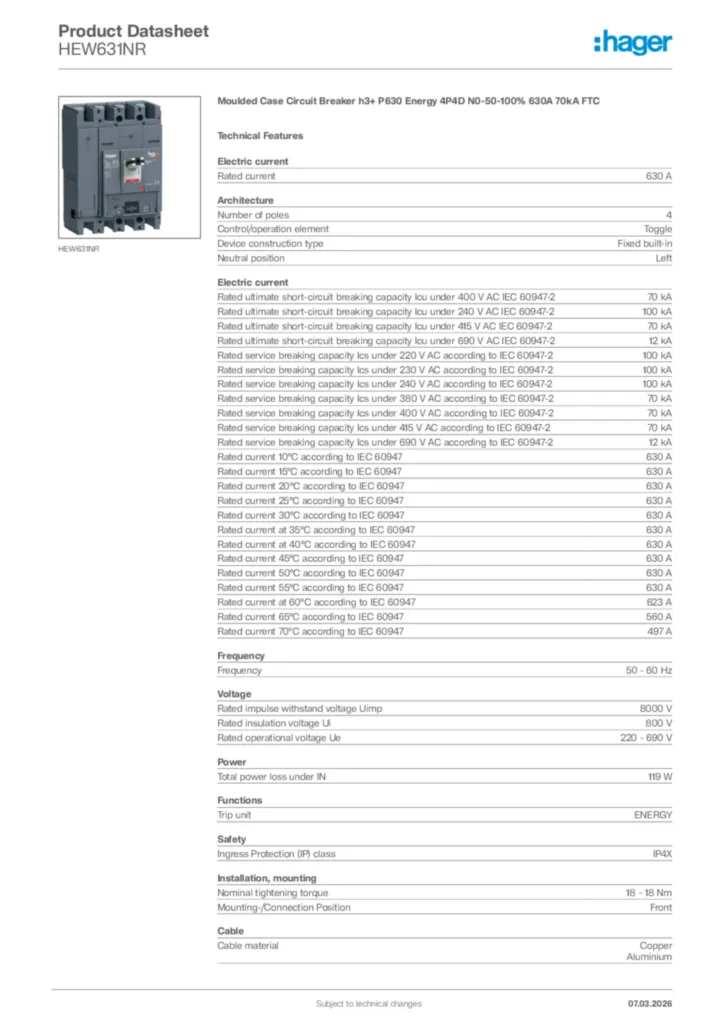

Hager Product data sheet HEW631NR
