The Hager Auxiliary Contact 1NO+1NC for x160/P160/x250/P250/x630/P630 provides reliable status indication and auxiliary switching for protection devices. Rated 3 A at 230 V AC-15 with 250 V insulation and 1.5 kV impulse withstand, it supports AC/DC control. Quick-connect terminals and click mounting speed installation. IP4X ensures safe integration; low 3 W loss enhances efficiency.

EAN

3250613346416

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

KNX Thermostat Colour Display with Integrated Bus Coupling, Ext Sensor Input HXA021H

Technical properties
Environmental value
Documentations
More products

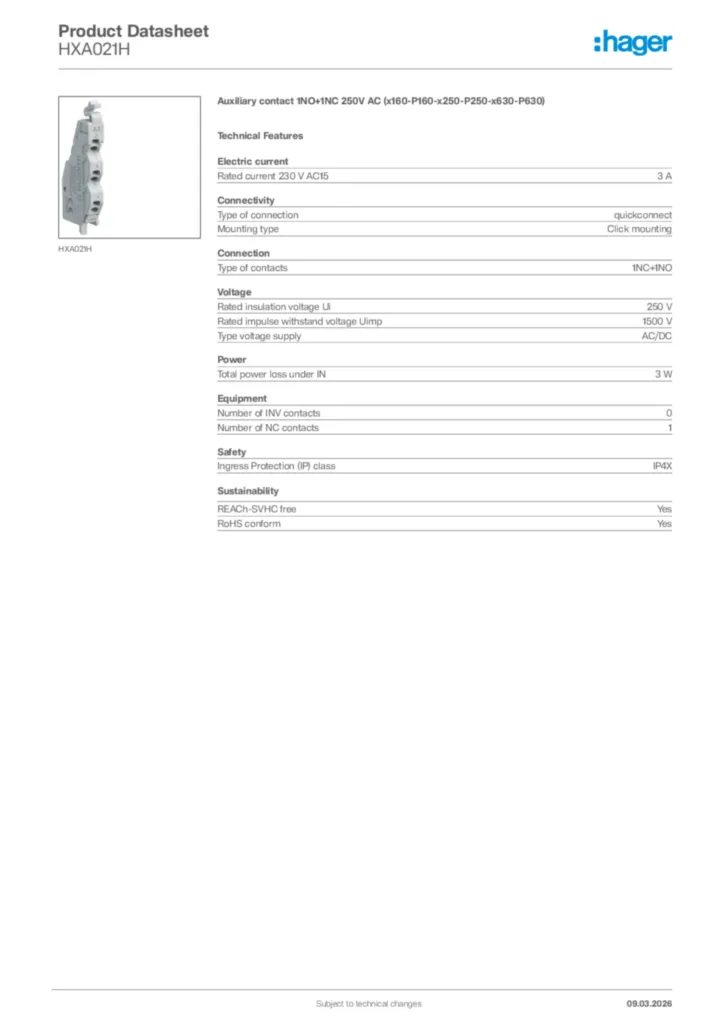

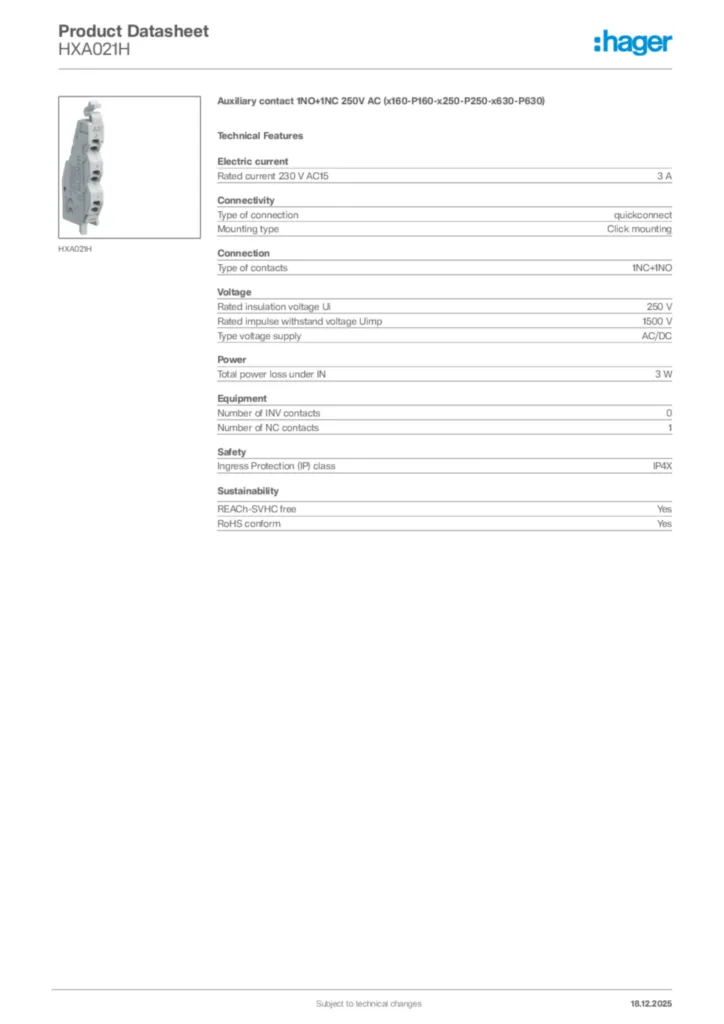

Download the data sheet

Technical properties

Rated current 230 V AC15

3 A

Type of connection

quickconnect
Mounting type

Click mounting

Type of contacts

1NC+1NO

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

1500 V
Type voltage supply

AC/DC

Total power loss under IN

3 W

Number of INV contacts

0
Number of NC contacts

1

Ingress Protection (IP) class

IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
