Hager in the world
The Hager h3+ P630 Energy 3P3D 400A molded case circuit breaker safeguards three-phase networks in demanding commercial and industrial installs. With Icu up to 100 kA at 240 V and 70 kA at 400/415 V (12 kA at 690 V), it delivers high fault clearance. The ENERGY trip unit offers wide adjustable LT/STD/INST settings for selective, precise protection. Fixed, toggle-operated, IP4X, 220-690 V, 50/60 Hz.
EAN
3250613197391
VPE
1 piece
MCCB h3+ P250 4P 250A 70kA TM adjustable, N left 0-100% HEW400NR
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Motor operator 12 product.page.accessories.products-available -
Under voltage coil 8 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Connection Functions 6 product.page.accessories.products-available -
Operating shaft for power breaker 3 product.page.accessories.products-available -
Mechanic accessories for low-voltage components 3 product.page.accessories.products-available
product.page.accessories.title-modal
-
HXW046HK
Motor Operator x630/P630 100-120VDC without Auto-Reset + key
-
HXW046HMotor Operator x630/P630 100-120VDC without Auto-Reset
-
HXW044HKMotor Operator x630/P630 100-240VAC without Auto-Reset + key
-
HXW044HMotor Operator x630/P630 100-240VAC without Auto-Reset
-
HXW043HKMotor Operator x630/P630 24-48VDC without Auto-Reset + key
-
HXW043HMotor Operator x630/P630 24-48VDC without Auto-Reset
-
HXW042HKMotor Operator x630/P630 100-240VAC with Auto-Reset + key
-
HXW042HMotor Operator x630/P630 100-240VAC with Auto-Reset
-
HXW041HKMotor Operator x630/P630 100-120VDC with Auto-Reset + key
-
HXW041HMotor Operator x630/P630 100-120VDC with Auto-Reset
-
HXW040HKMotor Operator x630/P630 24-48VDC with Auto-Reset + key
-
HXW040HMotor Operator x630/P630 24-48VDC with Auto-Reset
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HYW328H
L connection terminal Plug-in (x630/P630) 1P
-
HYW007HCage terminal x630/P630 Cu/Al 3P 2x 35-300mm²
-
HYW001HCage terminal x630/P630 Cu/Al 3P 1x 35-300mm²
-
HYW010HStraight terminal extension x630/P630 4P (up to 400A)
-
HYW011HSpread terminal extension x630/P630 3P (up to 400A)
-
HYD031HRear connection h/x/P 3P 400A
-
HXS122HAX/AL Energy - low level 125VAC 30VDC
-
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
-
HXS120HAX/AL ON/OFF & counting ON/OFF at Energy MCCB
-
HYC250HPM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
-
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA039HPadlock (x160-P160-x250-P250-x630)
-
HXW890HKey lock kit for Draw-out kit for x630/P630
-
HXW888HKey lock kit for Rotary handle x630/P630
-
HXS999HRonis keylock (P160-P250-x630-P630)
-
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
-
HXW066HMechanical interlock front cover x630/P630
-
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
-
HXW165HLink interlock kit x630/P630 - 3P
-
HTC370HCIP - Adaptor for h3+ length 10 m
-
HTC360HCIP - Adaptor for h3+ length 5 m
-
HTC350HCIP - Adaptor for h3+ length 3 m
-
HTC340HCIP - Adaptor for h3+ length 1, 5 m
-
HTC330HCIP - Adaptor for h3+ length 0, 5 m
-
HTC150HZSI - Adaptor for h3+ length 1, 20 m
-
HTC140HCIP - 24 V Adaptor length 1, 20 m
-
HTC130HOAC/PTA adaptor for h3+ length 1, 20 m
-
HTG484HRJ45-RJ45 Modbus cable length 5 m
-
HTG482HRJ45-RJ45 Modbus cable length 2 m
-
HTG481HRJ45-RJ45 Modbus cable length 1 m
-
HTG480HRJ45-RJ45 Modbus cable length 20 cm
-
HTG474HRJ45-RJ45 with earth Modbus cable length 5 m
-
HTG472HRJ45-RJ45 with earth Modbus cable length 2 m
-
HTG471HRJ45-RJ45 with earth Modbus cable length 1 m
-
HYW052HEarth plate for Spread terminal extension P630 3P
-
HYW050HEarth plate for Straight terminal extension P630 3P
-
HYW025HTerminal cover for Rear & Plug-in connection x630/P630 3P
-
HYW023HTerminal cover for Spread terminal extension x630/P630 3P
-
HYW021HTerminal cover for Straight terminal extension x630/P630 3P
Technical characteristics
Electric current
-
Rated current IN400 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-212 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2100 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-270 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-212 kA
-
Rated current at 10°C according to IEC 60947400 A
-
Rated current at 15°C according to IEC 60947400 A
-
Rated current at 20°C according to IEC 60947400 A
-
Rated current at 25°C according to IEC 60947400 A
-
Rated current at 30°C according to IEC 60947400 A
-
Rated current at 35°C according to IEC 60947400 A
-
Rated current at 40°C according to IEC 60947400 A
-
Rated current at 45°C according to IEC 60947400 A
-
Rated current at 50°C according to IEC 60947400 A
-
Rated current at 55°C according to IEC 60947400 A
-
Rated current at 60°C according to IEC 60947400 A
-
Rated current at 65°C according to IEC 60947396 A
-
Rated current at 70°C according to IEC 60947360 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Power dissipation at IN57.8 W
Installation, mounting
-
Nominal tightening torque18 - 18 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Cable
-
Cable materialCopper
Compatibility
-
Compatible with RDC AOBYes
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Data act compliance
-
Is generating dataYes
-
Data typesAlarms, Basic information, Electrical measurement, Detailed electrical measurement, General diagnostics, Network diagnostics, Operational state, Software diagnostics
-
Data formatsMODBUS (RTU)
-
Estimated daily data volume< 1 KB
-
Real time data generationYes
-
Data stored on deviceYes
Dimensions
-
Height260 mm
-
Width140 mm
-
Depth150 mm
Settings
-
Adjustment range short-term delayed short-circuit release218.4 - 4000.0 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

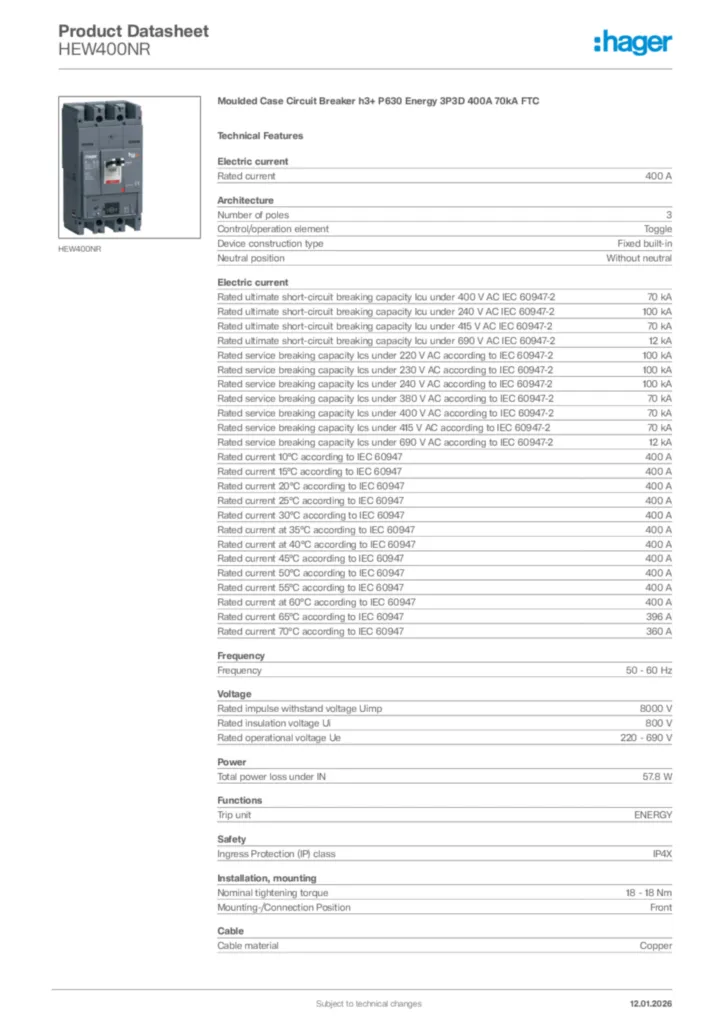

Hager Product data sheet HEW400NR
Moulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 70kA FTC
PDF -
ProductNotice
Instruction manual International 2025-01-21
PDF10,29 MB -
ProductBimStep
CAD file for MCCB 630A 3P
STEP files International 2026-04-15
STP921,20 kB -
SupportDataActNotice
Data Act Notice
Data Act Notice for Hager connected products and services - Status 28.11.2025 (English)
URL -
ProductECDeclaration
Declaration of conformity en-US 2026-07-14
PDF412,41 kB
EU Declaration of Conformity
PDF588,41 kB
More documentation
Discover our other products of this range
-
5
-
1
HMW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 50kA FTC -
2
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC -
3
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC -
4
HMT251NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 250A 50kA FTC -
5
HMT250NRMoulded Case Circuit Breaker h3+ P250 Energy 3P3D 250A 50kA FTC
