The Hager NewVegaD surface-mounted distribution enclosure (1050×550×193 mm) provides 144 modules across 6 rows/rails for large residential or commercial boards. Rated 160 A, 230-400 V, with 4 conduit inlets and an earthing terminal block, it enables safe, tidy wiring. For indoor use, Class II insulation, IP30 and IK07 ensure robust protection. Pure white RAL9010 metal/plastic finish for clean panel integration.
EAN
3250612548309
VPE
1 piece
NewVegaD Enclosure 168M 7 rows Surface-mounted IP30 160A 1200x550x193 FD62DN
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Coax connector 1 product.page.accessories.products-available -
Cover/infill panel/identification strip 1 product.page.accessories.products-available -
Gland plate for enclosure 5 product.page.accessories.products-available -
Cover for distribution board 3 product.page.accessories.products-available -
Separation plate for meter/distribution boards 1 product.page.accessories.products-available -
Common Accessories 2 product.page.accessories.products-available
product.page.accessories.title-modal
-
FD00P4
Kit, NewVegaD, with 2 side cable entry plates, square until M40, for FD…
-
FD00P3Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
-
FD00P2Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
-
FD00P1Cable entry plate, NewVegaD, top/bottom, rectangular
-
VZ741Rear cable entry flange IP41 for NewVegaD and Univers FW boards
-
FD02C2Kit, NewVegaD, 300x500mm, with depth-adjustable perforated plate and plain cover
-
FD02A3Kit, NewVegaD, 300x500mm, for rail-mounted devices, 1x24mod.+1depth-adjust.DIN rail
-
FD02A2Kit, NewVegaD, 300x500mm, with depth-adjustable DIN rails and plain cover
-
FD02A1Kit, NewVegaD, 300x500mm, for rail-mounted devices, 2x24 modules
Technical characteristics
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN160 A
Equipment
-
Number of rails6
-
Number of rows6
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules144
Dimensions
-
Height1050 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

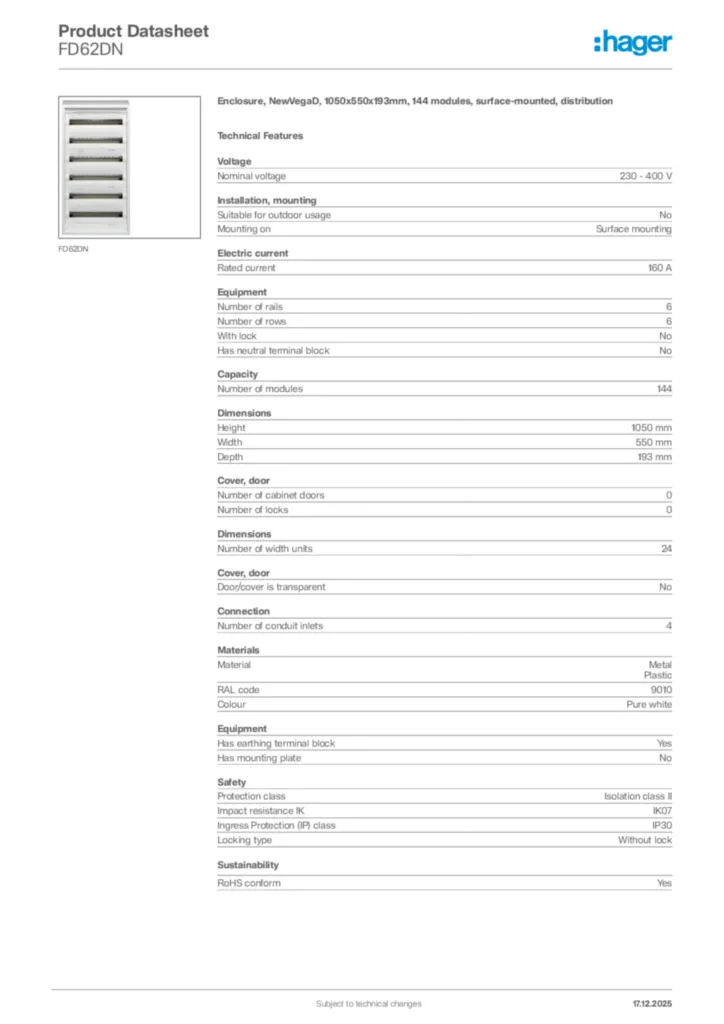

Hager Product data sheet FD62DN
Enclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, distribution
PDF -
ProductManuals
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (FR)
PDF11,49 MB
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (EN)
PDF11,76 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2022-10-11
PDF190,72 kB
